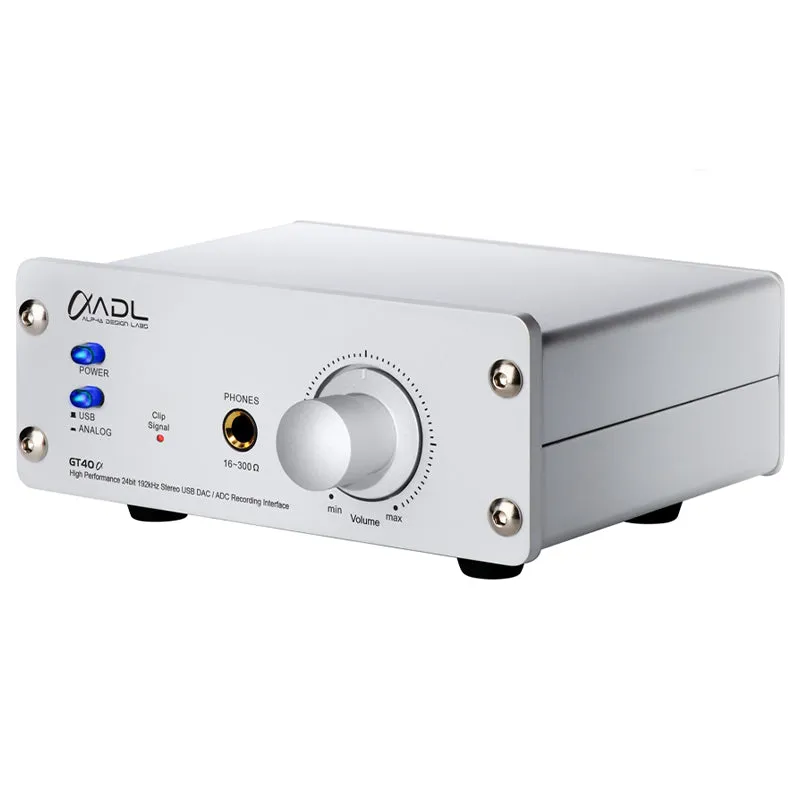

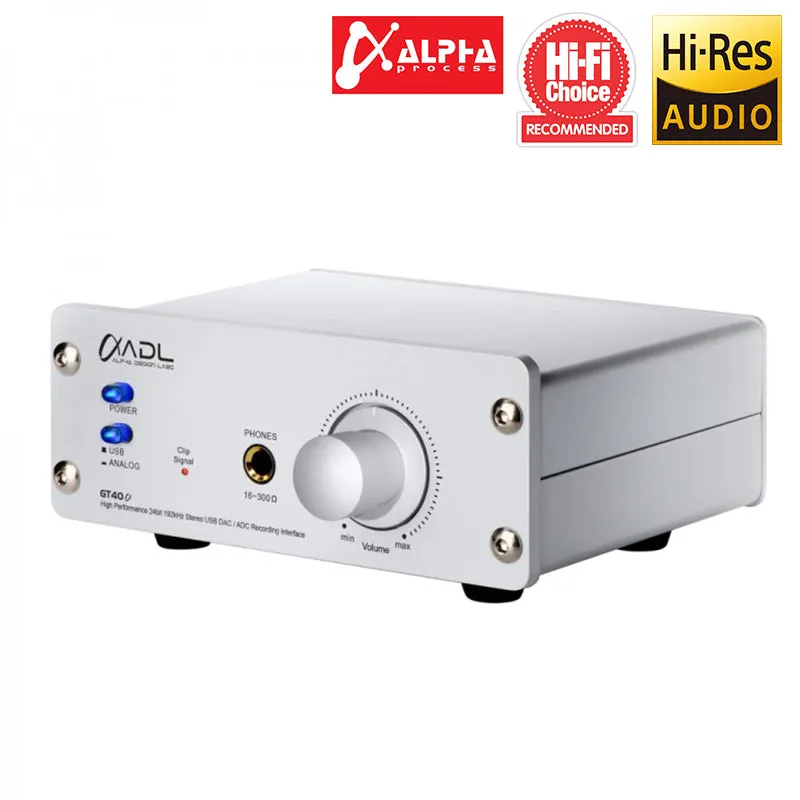

The GT40 gets you to the winners circle!!
The GT40 is built for enthusiasts with growing music collections on their computer hard drives. Its a high-performance 24bits/192kHz USB DAC thats amazingly affordable. Looking to convert your LPs or other analog sources to digital? The GT40 will take you to the podium with every album you archive.
The seriously-shielded audiophile-grade GT40 features a low-latency USB 2.0 audio driver that plays and records at 24bits/192kHz. A likely first for this category, the GT40 includes a built-in low-noise MM / MC phono preamp! Record your favorite vinyl to hard disk via the USB output.
The ADL GT40 features L/R analog outputs, and switchable line or phono inputs with a vivid, captivating sound that is simply unheard of in this category.
The ADL GT40 (wired with ADLs Formula 2 cable of course!) brings Furutechs signature sound smooth, detailed clarity to desktop systems, especially with high resolution 24bits/192kHz files, but even 16-bit/44.1kHz files sound impeccable and very musical.
SPECIFICATIONS
USB & Analog Playback and Record multimedia audio system

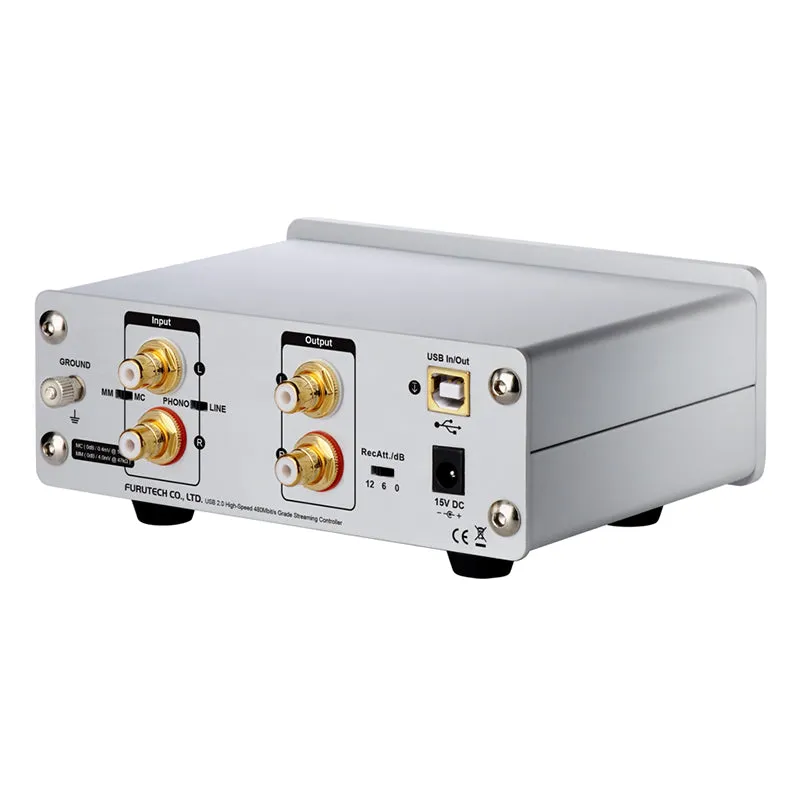

Connectivity: USB B Interface, Analog input/output RCA jack
USB Playback Resolution: 24bits/192kHz (Max)
USB Recording Resolution: 24bits/192kHz (Max) supports 44.1 /48 /88.2 /96 /176.4 /192 (kHz)
Frequency response: 20Hz ~ 20kHz ( /-0.5 dB)
SN ratio: >90dB (A-wtd) / Line Output
Line Output Level: 5 Vrms
Line Input Level: MC 0.4mV / MM 4.0mV / Line 2Vrms
Headphone Output Level: 1% THD 1kHz (Max.) 94mW(16 ohm),110mW(32 ohm), 98.6mW (56 ohm), 23mW (300 ohm)
Power Supply AC Adaptor Rating: Erp step2 compliant, 2Wire AC Input Type, Class II, AC/DC Switching Adaptor output DC 15V / 0.8A / 12W
Dimensions: 150 (W) x 111 (D) x 57 (H) mm
Weight: 650g Approx.
GT40a Windows driver supports Win XP, Win 7, and Win 8 (not Win Vista)
IMPORTANT:
The load (Input Impedance) for the ADL GT40 is fixed at 47K ohm for MM and 100 ohms for MC
Input Sensitivity Level for MM: 4.0mVrms at 1K Hz
Input Sensitivity Level for MC: 0.4mVrms at 1K Hz
Input Sensitivity Level for LINE: 400mVrms at 1K Hz
Maximum Input Level for LINE: 2Vrms at 1K Hz
MC input to LINE output (Vol./Max.) => 70dB @ 1K Hz ,( /-1dB)
MM input to LINE output (Vol./Max.) => 50dB @ 1K Hz ,( /-1dB)
LINE input to LINE output (Vol./Max.) => 8dB @ 1K Hz ,( /-1dB)
GT40 has no setting for gain to match different impedance headphones.
We recommend using 16 ohms to 300-ohm impedance headphones.
