The Meridian G06 Compact Disc Player exemplifies Meridian's commitment to audio excellence. Equipped with 24-bit, 192kHz Delta Sigma digital-to-analog converters, it ensures precise and detailed sound reproduction. The player supports CD Audio, CD-R, and CD-R/W formats, providing versatility for various media types.
Its robust construction includes multi-layer PCBs and four separate power supplies, minimizing interference and enhancing performance. The G06 features both unbalanced phono and balanced RCA analogue outputs, along with digital outputs such as S/PDIF coaxial and Toslink optical, catering to diverse system configurations
Aesthetically, the G06 boasts a sleek design with a black metal body and tinted glass front panel, complemented by customizable 'soft keys' and a user-friendly interface. Its re-clocking mechanism reduces jitter, resulting in a smooth, open, and well-defined soundstage with pinpoint stereo imaging
Whether integrated into a traditional hi-fi setup or connected to Meridian's DSP loudspeakers, the G06 offers a seamless blend of technical sophistication and musicality, making it a valuable addition to any high-end audio system
Specifications
Audio Performance:
Digital-to-Analog Conversion: 24-bit, 192kHz Delta Sigma DAC
Total Harmonic Distortion (THD): Better than 95dBFS
Signal-to-Noise Ratio: Better than 95dBFS
Output Voltage: 2.3V RMS fixed, Class A
Disc Compatibility:
Supports CD Audio (CD-DA), CD-R, and CD-R/W formats
Transport Mechanism:
Triple-beam laser, multi-speed CD/DVD-ROM drive
High-speed disc reading with enhanced error correction

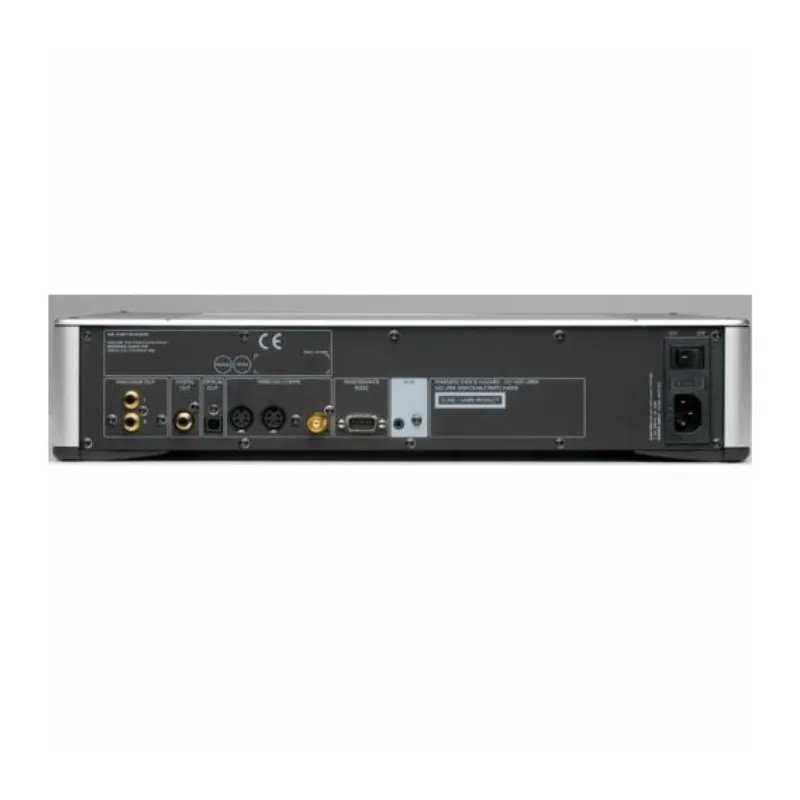

Outputs:
Analog Output: 1 unbalanced on phono (RCA), 47 impedance
Digital Outputs: S/PDIF via coaxial and Toslink optical
Control and Connectivity:
Front Panel: Customizable soft keys (Play, Stop, Pause, Previous, Next, etc.)
Remote Control: Full-featured via MSR
Communication Ports: RS-232 for control and status, Meridian Comms (2 x DIN plus BNC)
Display:
Multi-character dot-matrix graphic Vacuum Fluorescent Display (VFD)
Construction:
Metal chassis with tinted glass front panel
Available in black or silver finish
Power Supply:
Universal input: 100240V AC, 5060Hz
Power Consumption: 25W
Dimensions and Weight:
Width: 440 mm (17.32 inches)
Depth: 350 mm (13.78 inches)
Height: 90 mm (3.54 inches)
Weight: 8 kg (17.6 lbs)
Additional Features:
Multi-layer PCBs and four separate power supplies for reduced interference
Advanced surface-mount technology with audiophile-grade components
Re-clocking mechanism to minimize jitter
Gold-plated connectors for optimal signal integrity
