Features:

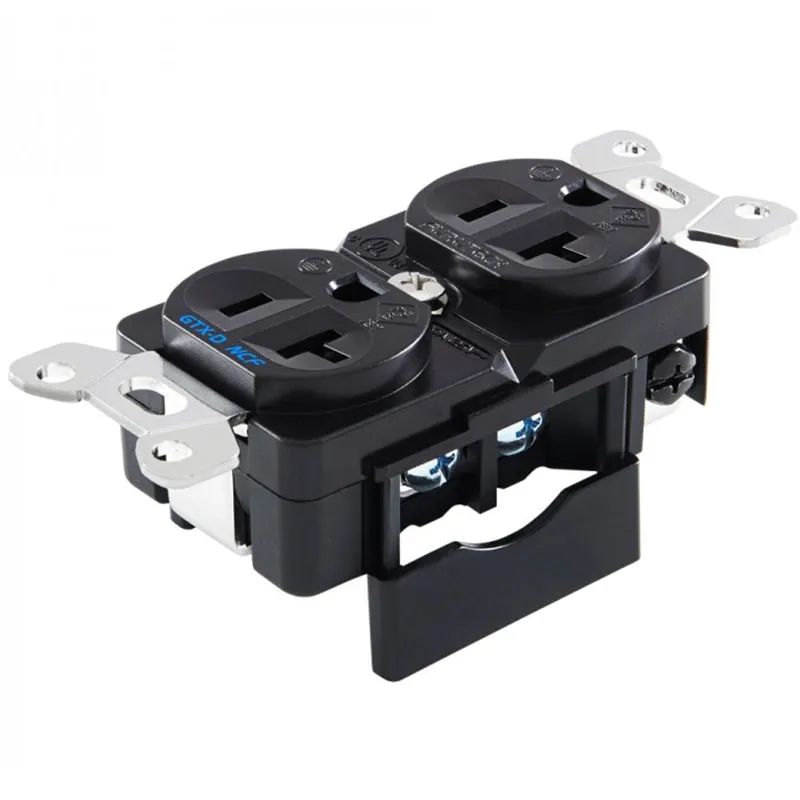

Furutechs Top-Tier GTX-D NCF Receptacles Refinement has a New Name
Nano Crystal Formula (NCF) Nano Crystalline, Ceramic, and Carbon Powder:
Incorporated into select Furutech products, Nano Crystal Formula NCF is comprised of a special crystalline material that has two active properties. First, it generates negative ions that eliminate static, and secondly, it converts thermal energy into far-infrared. Furutech then combines this remarkable crystalline material with nano-sized ceramic particles and carbon powder for their additional Piezo Effect damping properties. The resulting Nano Crystal Formula is the ultimate electrical and mechanical damping material only found in Furutech products!
The Pure Transmission Mission:
The GTX-D NCF manifests a devotion to the best performance in every element of AC and signals transfer. Considering that what you actually hear is in a very real sense the direct product of the incoming AC then the final few feet are of prime importance for best performance
Of course, everyone would love to make pure-copper receptacles, but its malleability lack of stiffness makes pure copper a poor choice. Thats why youll find less conductive metals like beryllium copper, phosphor bronze, or brass in most receptacles. Furutechs intense engineering scrutiny has resulted in an industry-first, a technique allowing us to use special Furutech rhodium-plated (Alpha) pure copper conductors strengthened and sprung by our innovative nonmagnetic Stainless Steel Conductor Spring System that keeps a firm grip yet wont damage male connector blades or their plated surfaces. But what really sets the GTX-D NCF receptacle apart is NCF Furutechs ultimate damping material Nano Crystal Formula eliminates static, interconverts thermal, mechanical, and electrical energy and damps vibrations. The GTX-D NCF can be summed up in a word; virtuoso!
All metal parts treated with Furutechs Two-Step Cryogenic and Demagnetizing Alpha Process
SPECIFICATIONS
Rhodium-plated (Alpha) Pure Copper Conductor (0.8mm) Nonmagnetic stainless conductor spring system
Body material: Nylon/fiberglass with anti-resonance nano-sized crystalline, piezo ceramic particles, and carbon.
Cover material: Polycarbonate with a special anti-resonance nano-sized crystalline material NCF
Parts set with nonmagnetic 2.0mm-thick stainless brace plate
Specified for wire diameters of 4mm (set screw)
Dimensions: 104.0 mm (L) x 47.2 mm (W) x 28.0 mm (H)
Total attention to detail and build quality extends right down to a specially designed patent-pending conductor pressure plate that increases the contact area
Furutech spade terminal FP-205 recommended for 10 AWG wire
Type: 2-pole earth
Rating: 20A 125V ac
