Inline Power Filter with Built-in EMI Filtering

In 2010, Furutech introduced its first Inline Power Filtera compact and effective solution featuring integrated EMI filtering. Designed to be positioned between a power cable and the AC inlet of an audio component, it significantly reduced high-frequency noise and suppressed vibration transmitted through the power line. The result: cleaner, more stable power and a marked improvement in sonic clarity.

In 2016, the flagship Flux-50 was upgraded with Furutechs proprietary NCF (Nano Crystal Formula) technology. The filter housing was enhanced with a vibration-damping composite, while the internal architecture incorporated the AC-1501(R) EMI-filtering system and Neo Damper materialtogether offering superior control over both electrical interference and mechanical resonance.

By 2024, the Inline Filter Series had been further refined with upgraded internal coils and capacitors, enhancing its ability to suppress ground noise, voltage irregularities, and high-frequency interference. These advancements delivered even lower noise floors, greater dynamic range, and a more natural, immersive listening experience.

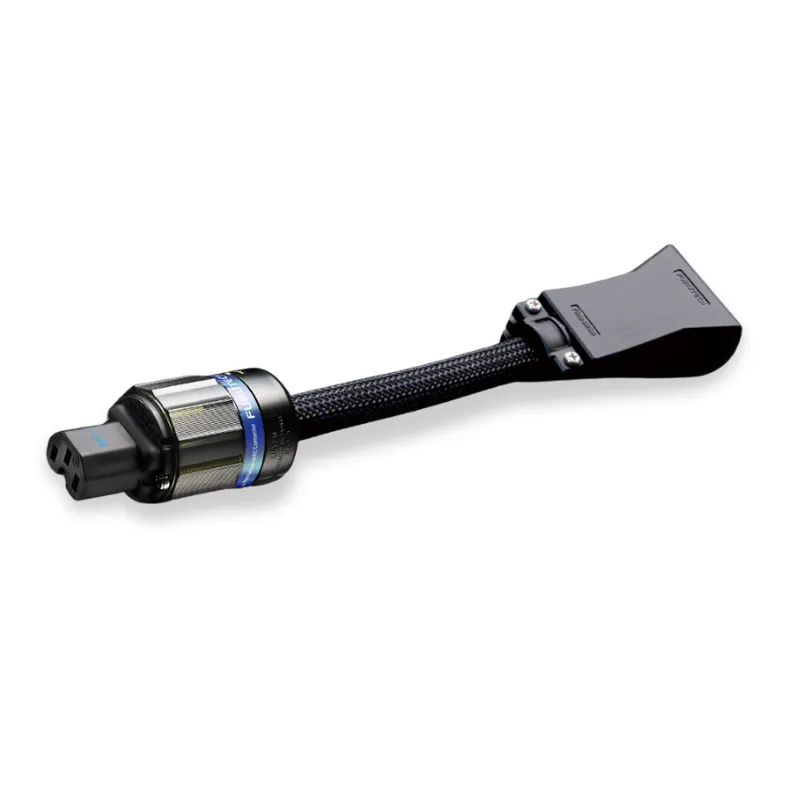

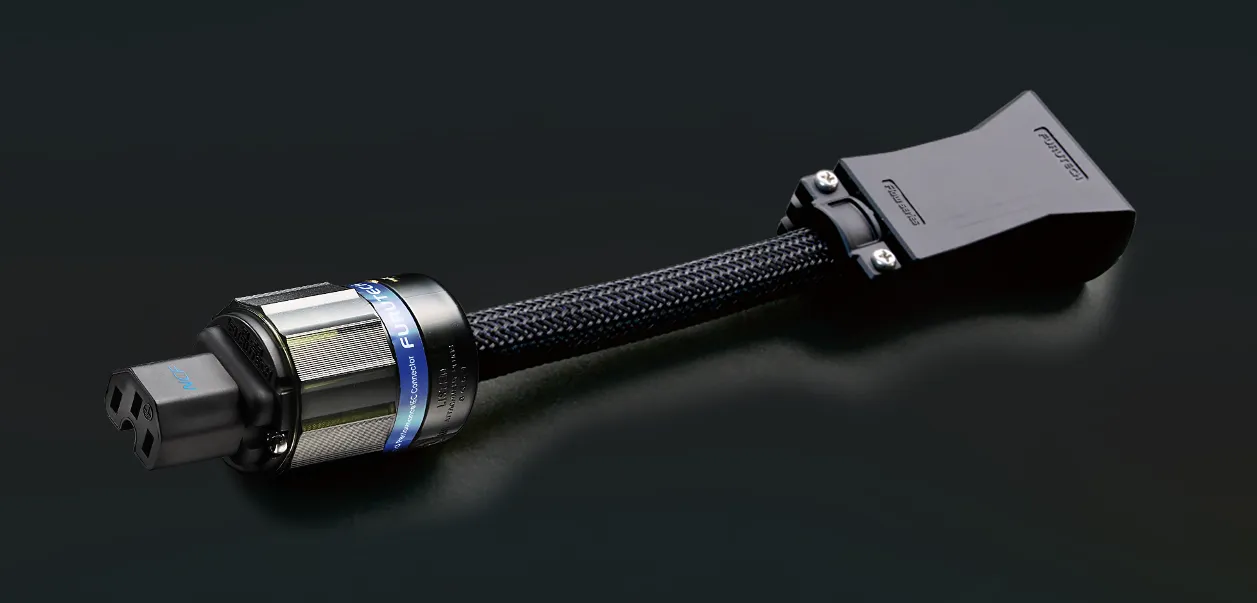

Now in 2025, Furutech proudly debuts the Flow-28 NCFa high-performance, cost-effective evolution that benefits from the full legacy of technical innovation and refinement in the series. Featuring the FI-28 NCF IEC connector and incorporating all the proven advances in EMI suppression and vibration control, the Flow-28 NCF not only blocks external noise and vibration, but also prevents internally generated noise from contaminating the rest of the system or escaping into the surrounding environment.

Drawing from over a decade of research and development, the Flow-28 NCF delivers clean, stable power with exceptional efficiencyoffering audio enthusiasts a compelling upgrade in performance and value.

Advanced Noise Suppression with Furutechs Nano Crystal Formula (NCF)

At the heart of the Flow-28 NCF is NCF (Nano Crystal Formula), a proprietary material developed by Furutech. This cutting-edge technology features a crystalline compound with two active properties:

• It generates negative ions to eliminate static.

• It converts thermal energy into far infrared to dissipate heat.

Combined with nano-sized ceramic particles and carbon powder for their piezoelectric damping effect, NCF is the ultimate electrical and mechanical noise suppression solutionexclusive to Furutech products.

Amazing Features

• The body of the Flow-28 NCF combines two active materials: Nano-sized ceramic particles and powdered carbon plus Nylon and fiberglass to form an extremely effective mechanically and electrically damped body

• Use between power cables and power distributors or power cables and components

• Eliminates radiated AC noise

• Fitted with rhodium-plated (Alpha) nonmagnetic FI-28 NCF(R) connector

• AC-1501(R) EMI-filtering IEC features rhodium-plated (Alpha) nonmagnetic copper alloy conductors plus

• A parallel circuit with an in-line coil and capacitor that reduces noise at 1MHz by 10dB and at 10MHz by more than 30dB

• Floating Field Damper (Earth/Ground Jumper System) with US Patent No.: 6,669,491

• Patent-pending metal cable clamp improves grip and reduces mechanically and electrically induced distortion

• (Alpha) conductor shield for protection against radiated noise

• RoHS-compliant flexible PVC sheath improves vibration isolation

• Special high-grade PE Insulation contributes to reduced capacitance

• Incorporating Furutechs special passive GC-303 EMI filtering material

The AC-1501 (R) EMI Filtering IEC Input

The parallel circuit with in-line coil and capacitor reduces noise at:

• 100 KHz by 8dB

• 500 KHz by 14dB

• 10MHz by more than 30dB

Specifications:

• Rhodium plated (Alpha) nonmagnetic copper alloy conductors

• Outer cover: Ni-plated steel-plate

• Inner box and cover: PBT (Poly Butylene Terephthalate)

• Rating: AC 125V 15A / AC 250V 10A 50/60Hz

The Flow-28 NCF(R) complies with IEC standards and features the EMI filter AC-1501 (R) (UL E134751 / CSA Certificate Number: 1224486) and the IEC connector FI-28 NCF(R) (PSE Certificate Number: JET7873-43004-1001 / KEMA-KEUR Certificate Number: 71-127956), both of which meet IEC regulations.

Component Values:

• L: 2*0.3mH

• Cx: 0.1uF

• Cy: 3300pF

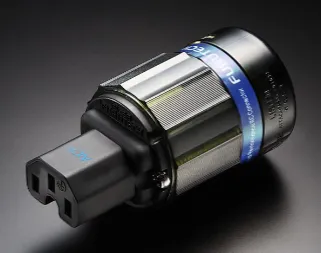

FI-28 NCF(R) Connector

• (Alpha) pure-copper rhodium-plated conductors

• Insulation body incorporates Nano Crystal Formula Nano Crystalline, Piezo Ceramic and Carbon Powder

• Eliminates static, interconverts thermal, mechanical and electrical energy and damps vibrations

Even during normal use, cables generate unwanted electromagnetic radiation, especially where the cable is bent or folded. Furutechs "Earth Jumper Function" uses a copper plate in contact with mounting screws to ground and stabilise the electromagnetic potential. This greatly enhances clarity and reduces vibration-induced distortion.

Additional Features

• Patented Ground/Earth Jumper Technology (US Patent No.: 6,669,491)

• Special design wire-clamping mechanism for firm contacts and pure, stable power transmission

• Industry-leading mechanical contact area: over 17% larger than standard wire holds

The Furutech Floating Field Damper

Solving a hidden issue in power connectors, this system eliminates floating magnetic fields generated by small internal parts like screws and clamps. These parts can interfere with the cables magnetic field and introduce noise.

Furutechs solution: a sprung metal bridge that star grounds the internal metal partsreducing distortion and enhancing signal integrity.

Cable Specifications

• Conductors: 56-strand (inner) and 29-strand (outer) (Alpha) OCC 0.175mm x 3 cores

• Insulation-1: Irradiated PE (Red/Natural/Yellow), 3.45mm diameter

• Insulation-2: Irradiated PE with Teflon tape wrap, 3.6mm diameter

• Inner Sheath: RoHS-compliant flexible PVC with carbon particles

• Shield: 0.12mm diameter (Alpha) conductor wire braid

• Sheath: RoHS-compliant flexible PVC, 14.2mm diameter

• Jacket: Vibration-damping Nylon yarn braid (Black)
