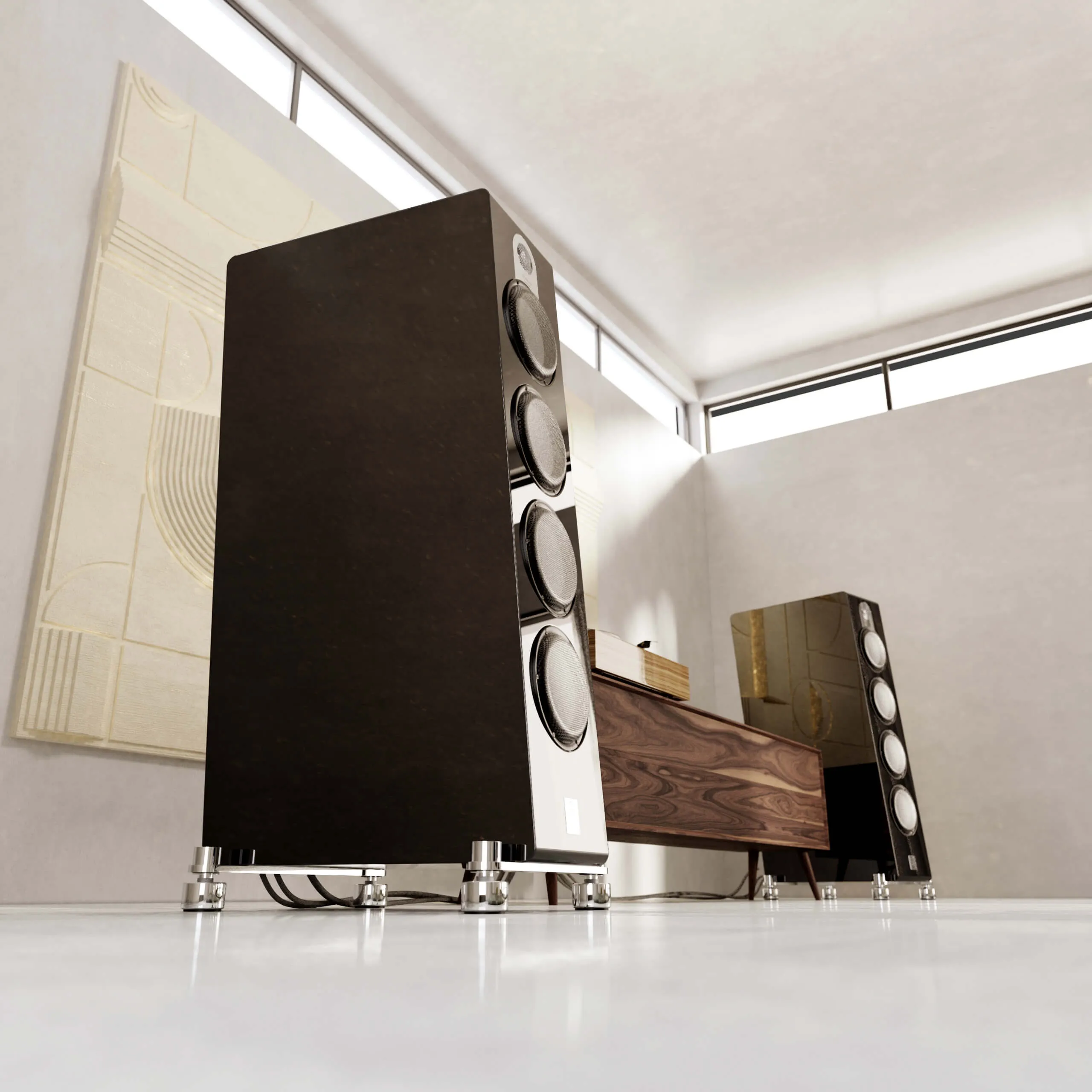

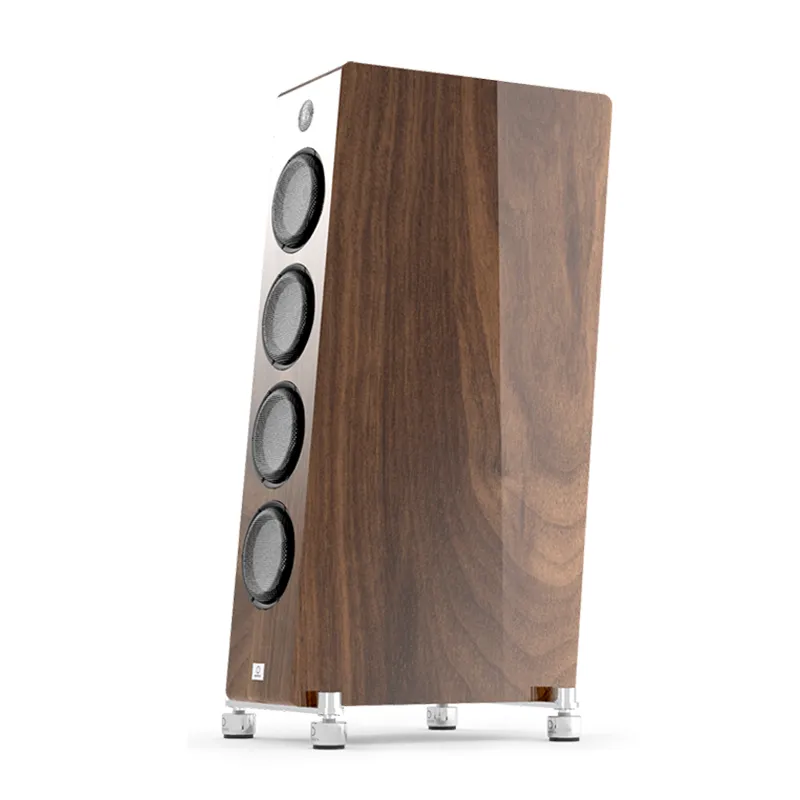

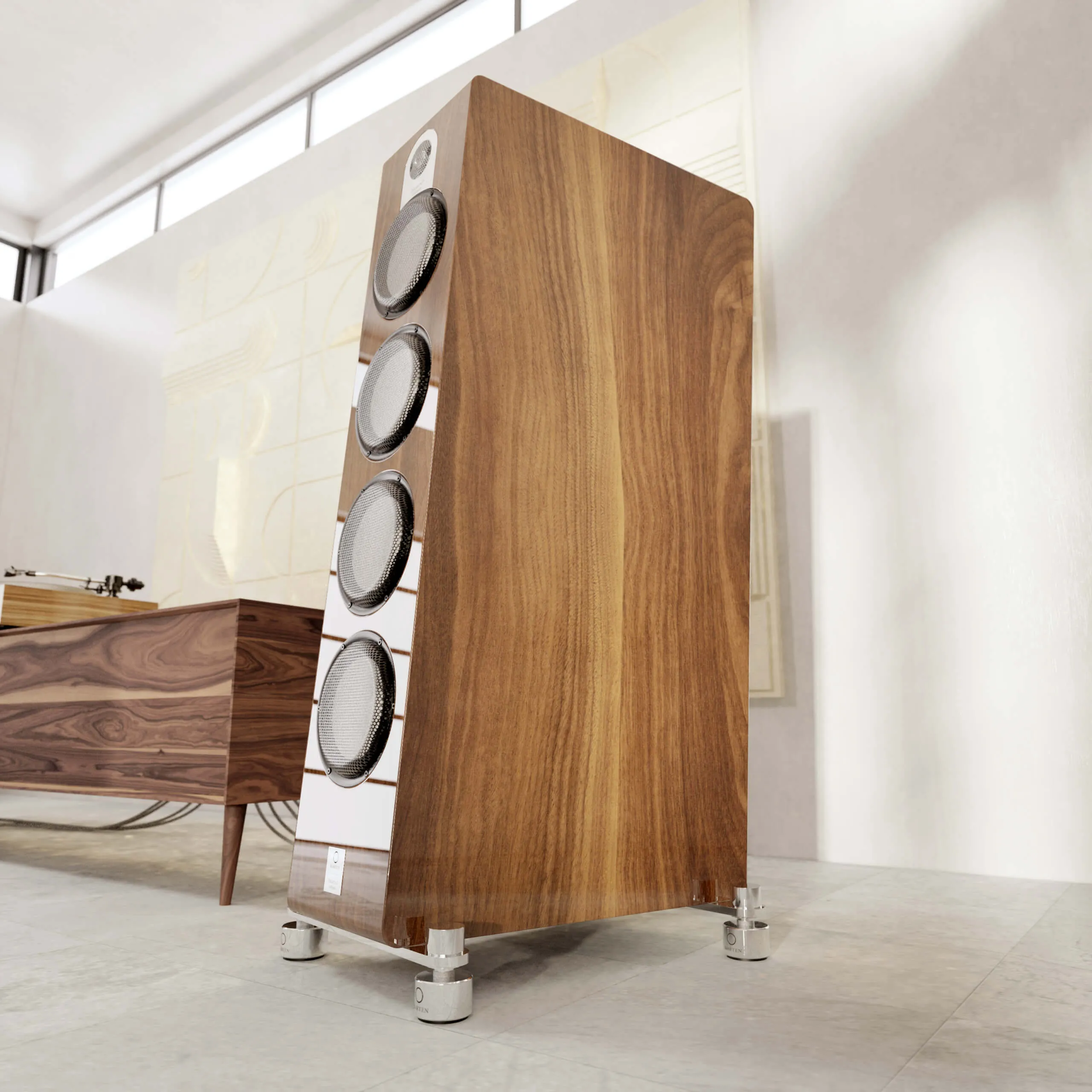

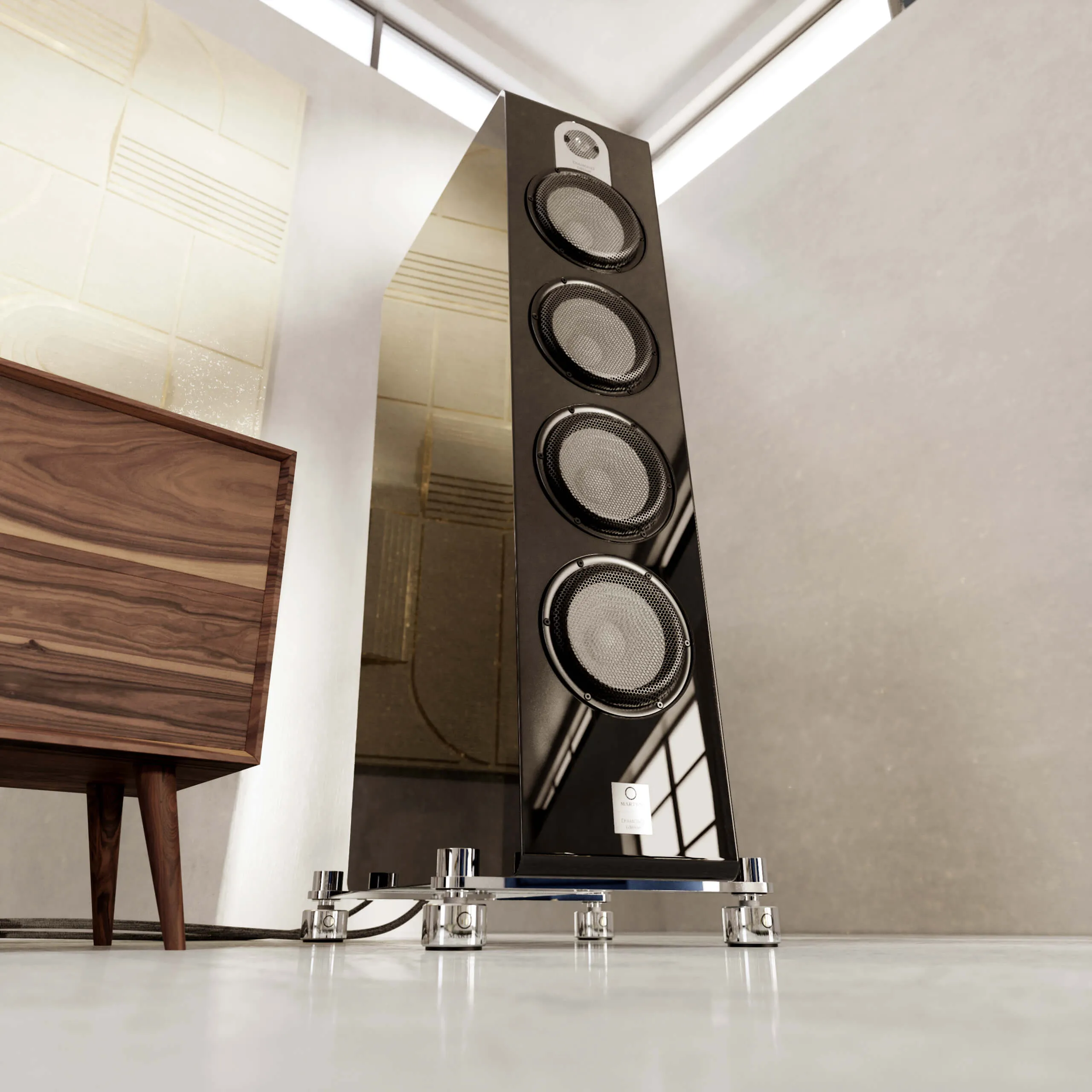

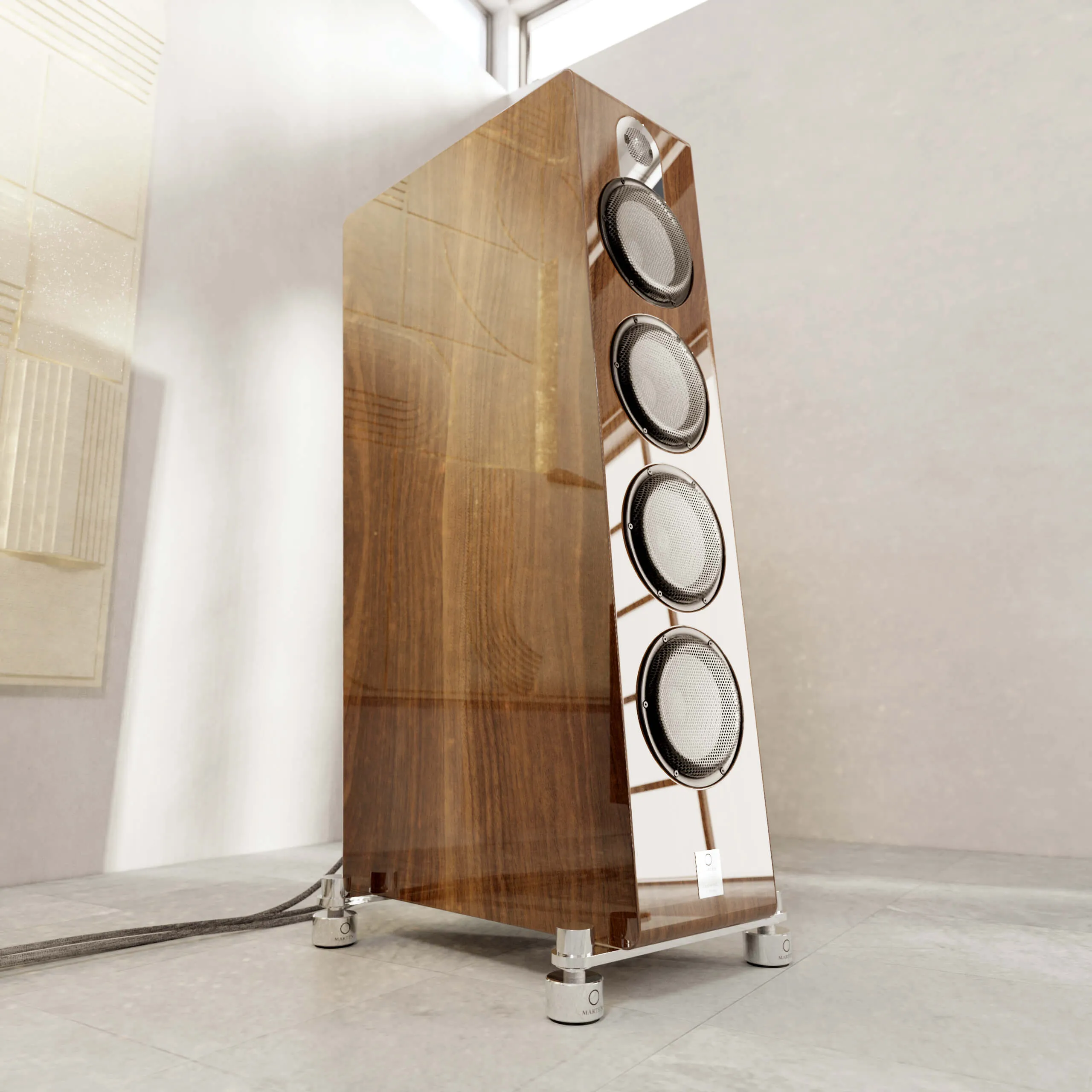

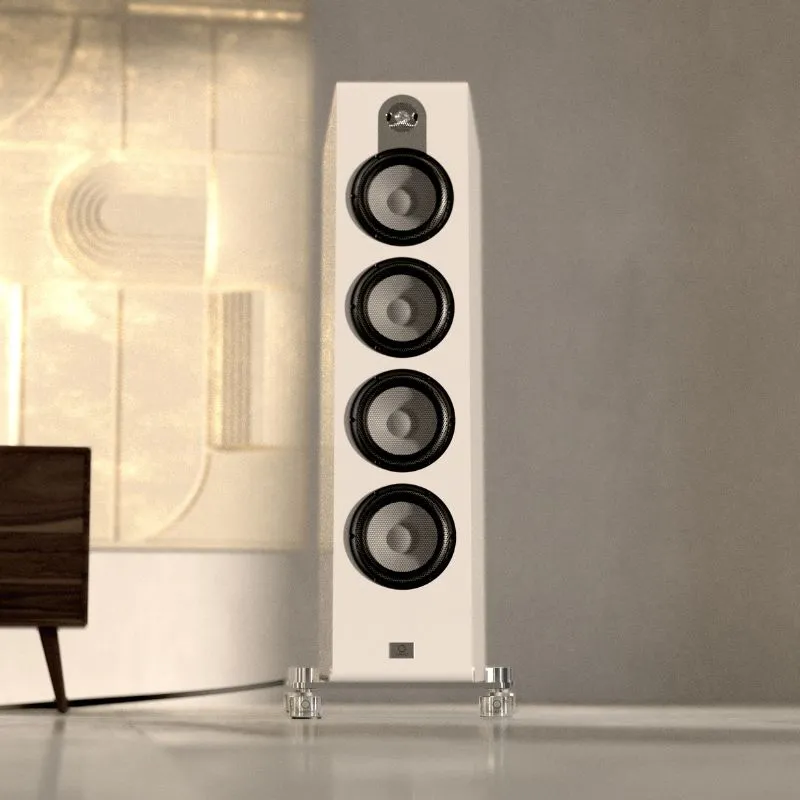

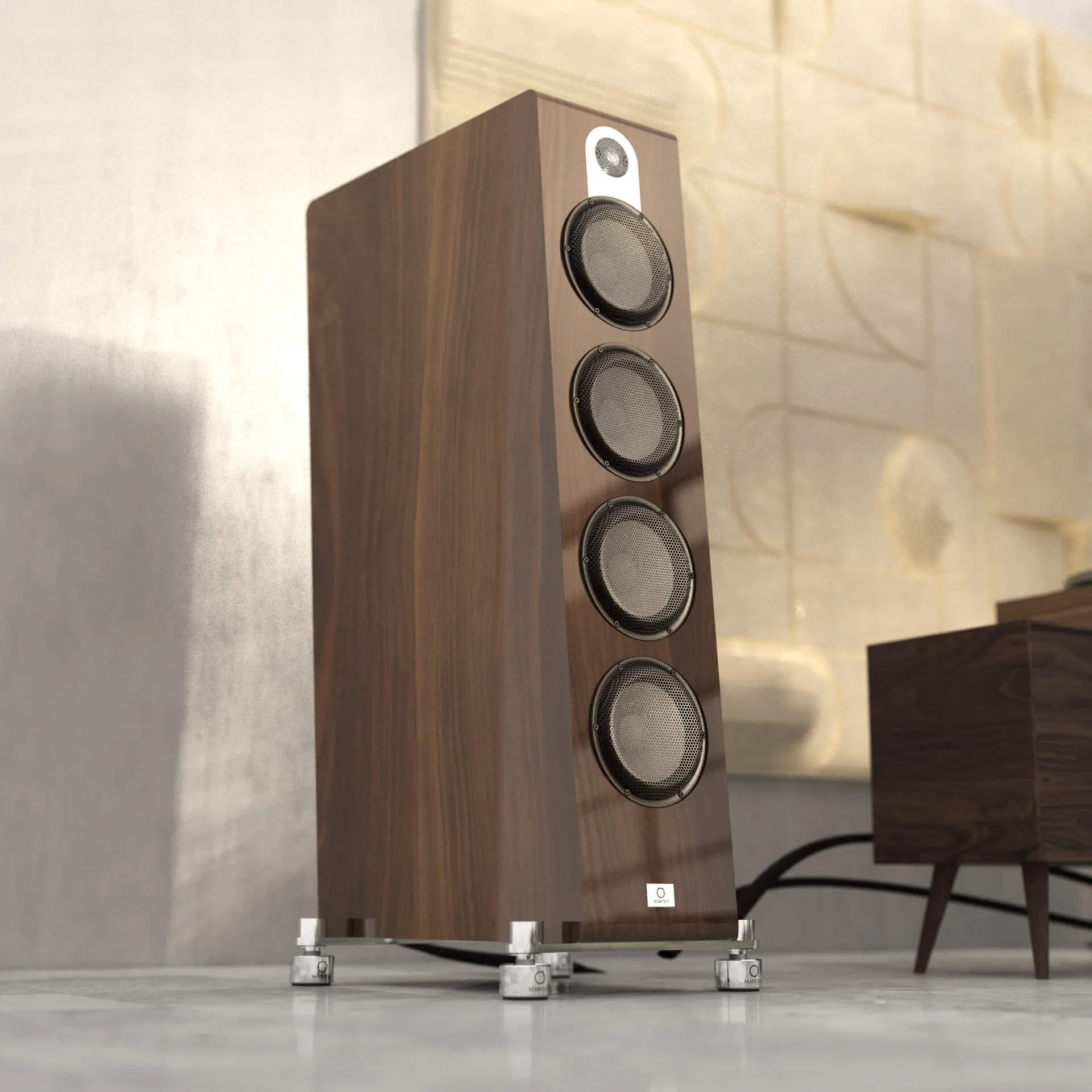

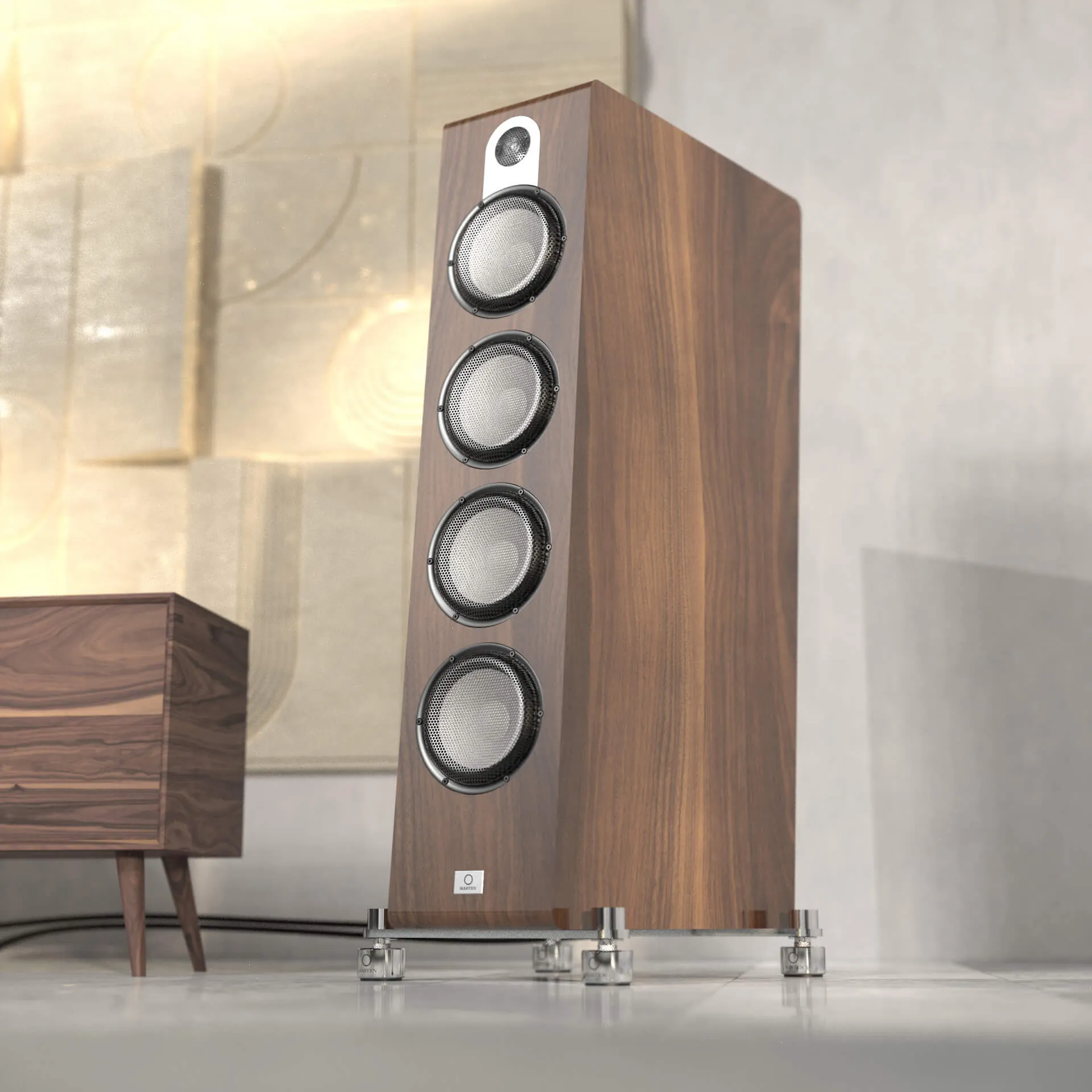

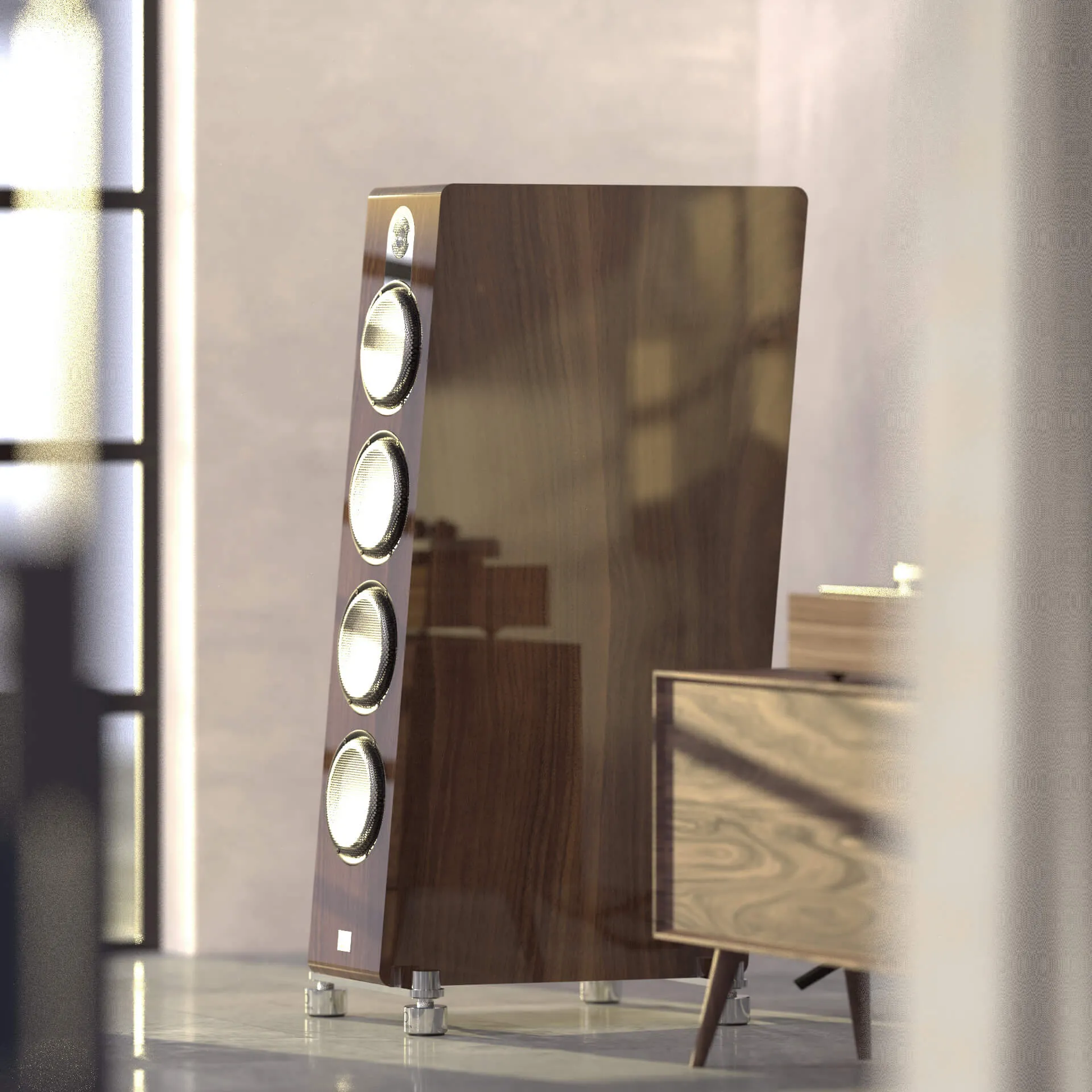

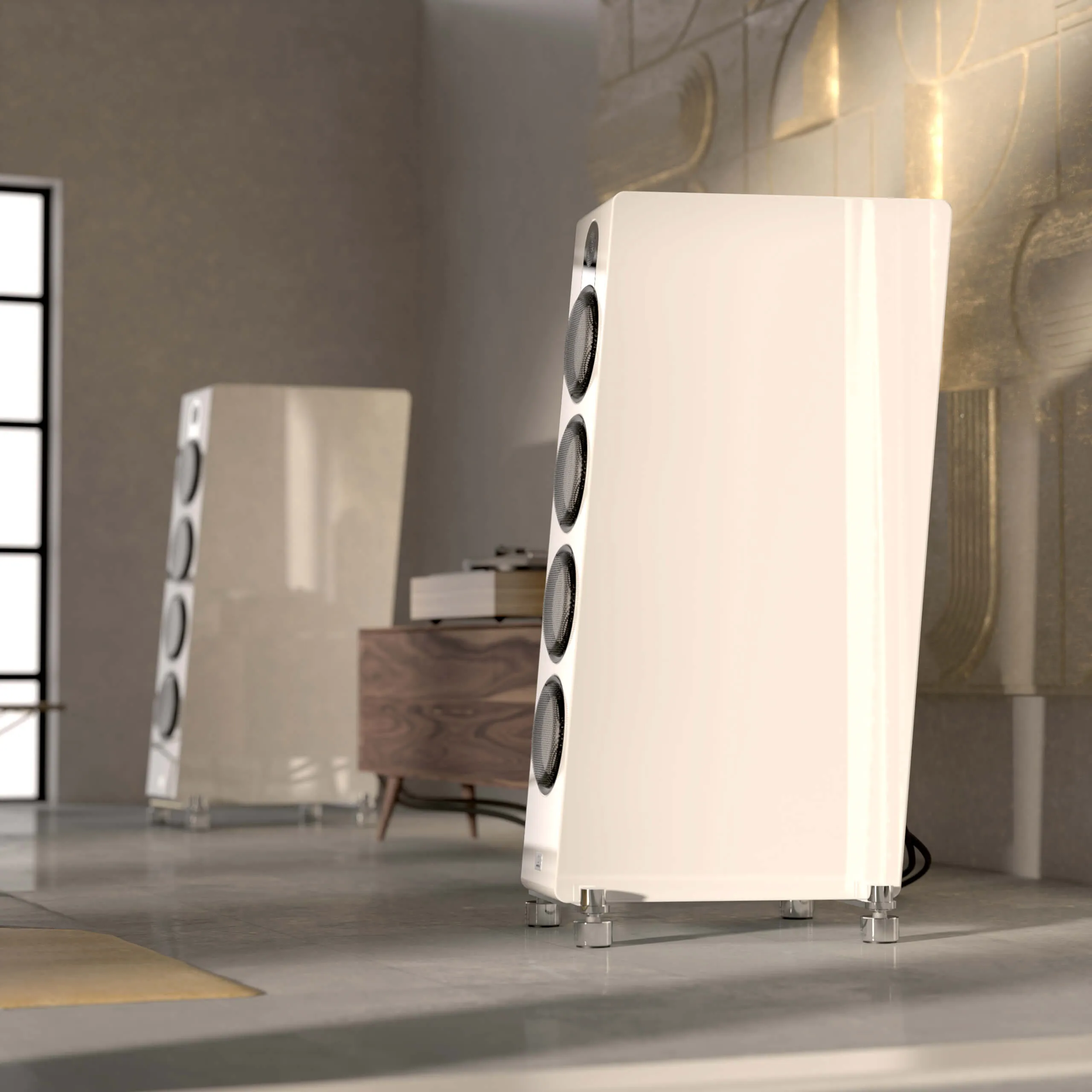

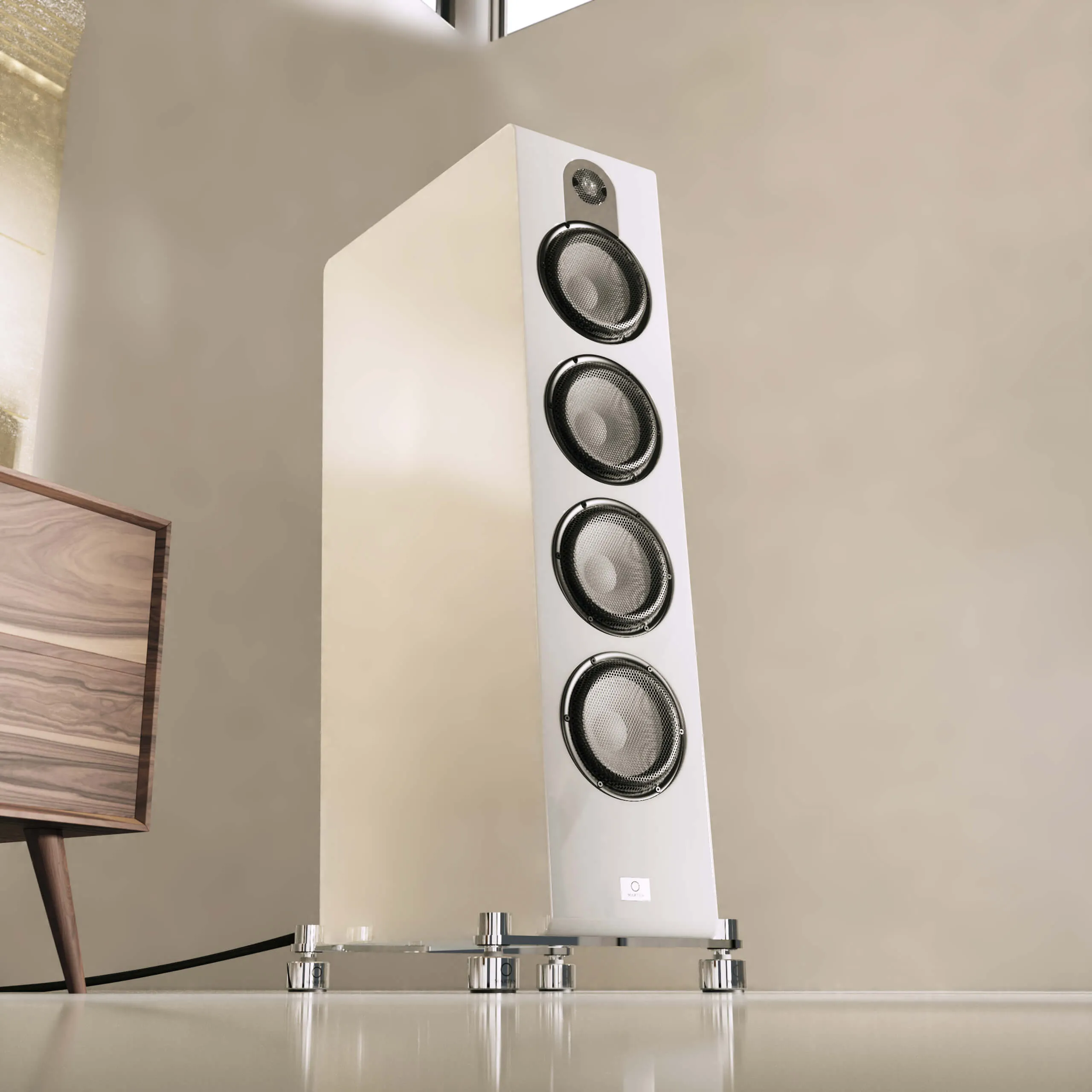

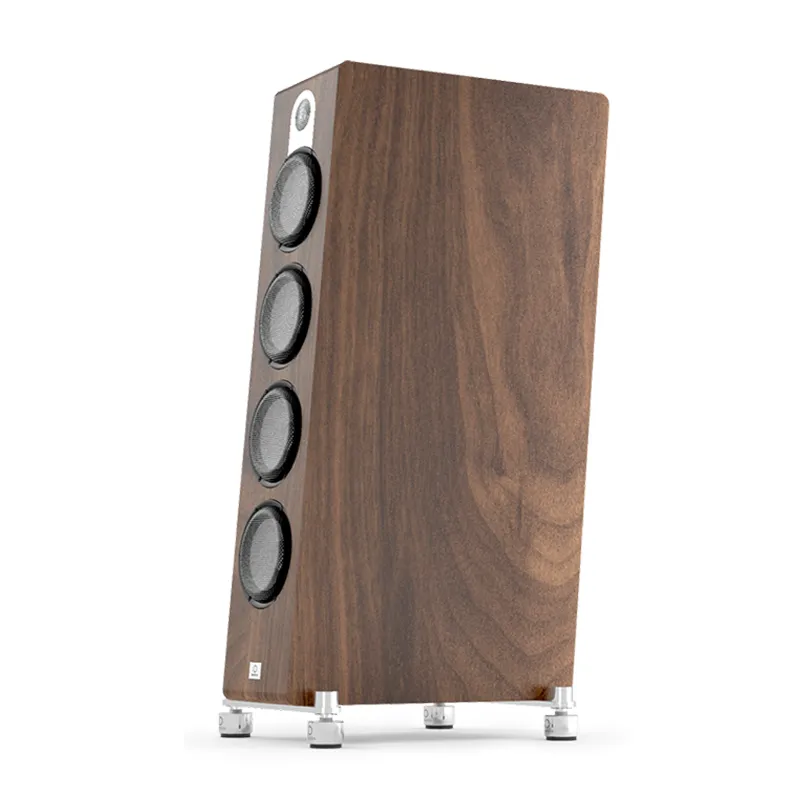

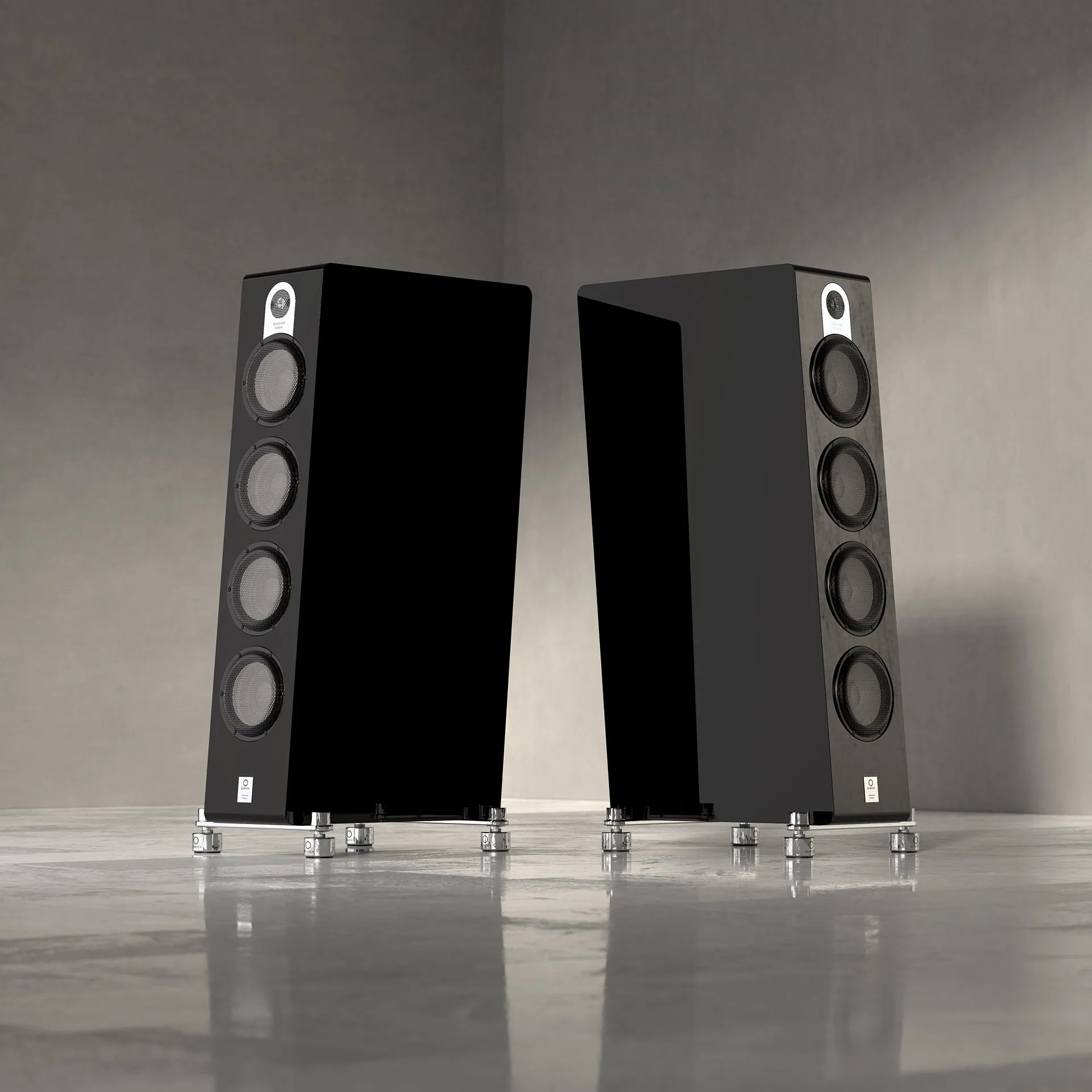

The cabinet features sleek, tapering sides created from M-board, a multi-layered material offering extreme resonance reduction. Parker Quintet is so resonance-free, it completely disappears within the soundstage. The newly designed cabinet balances visual appeal with low-impact on sound.
Ceramic drivers are custom designed by Leif Olofsson to meet the needs of a loudspeaker in this class. Each unit has a very long linear excursion and utilises the powerful Neodynium magnet system for control. Custom designed components allows a more holistic way of building a system, making Parker Quintet a super-refined Marten speaker.

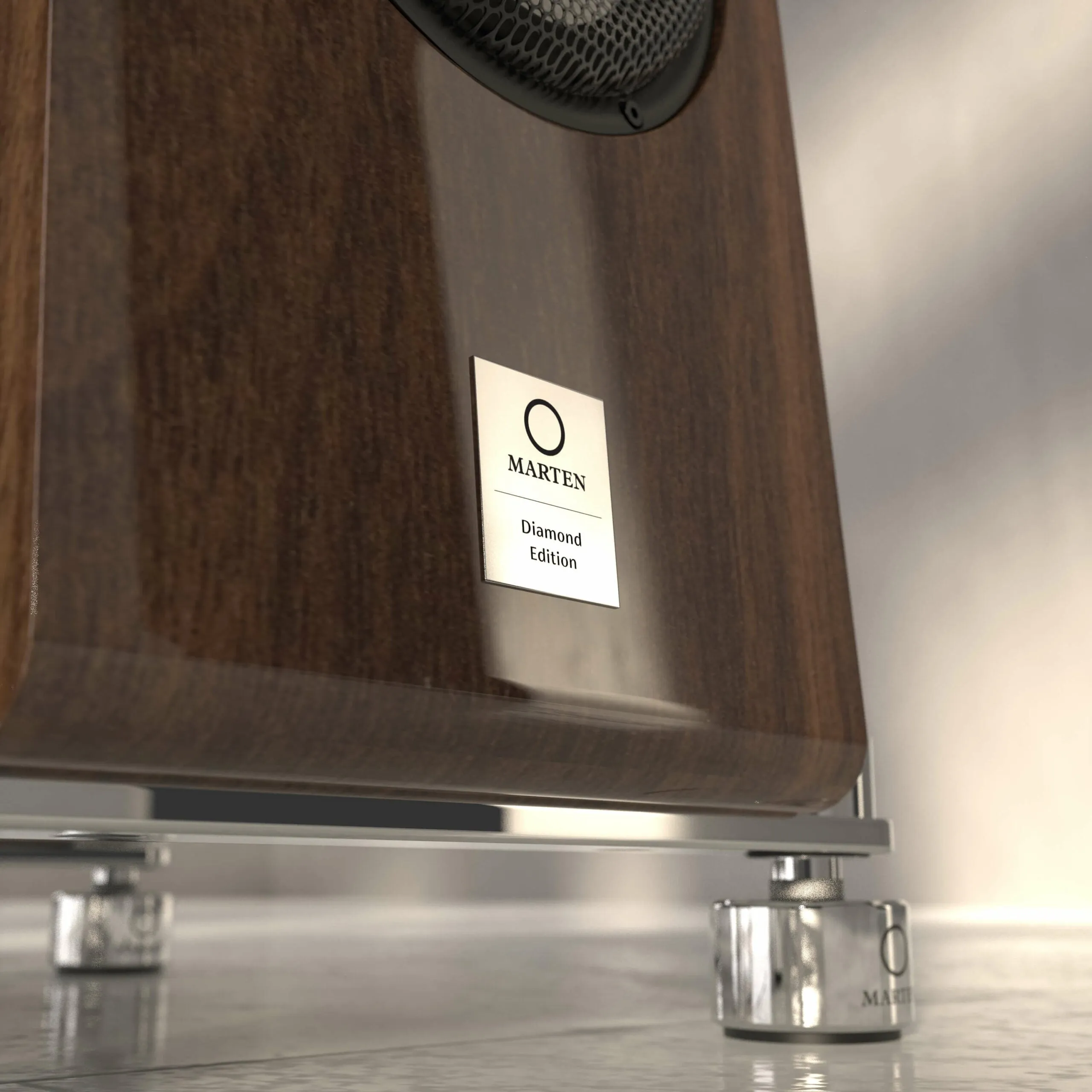

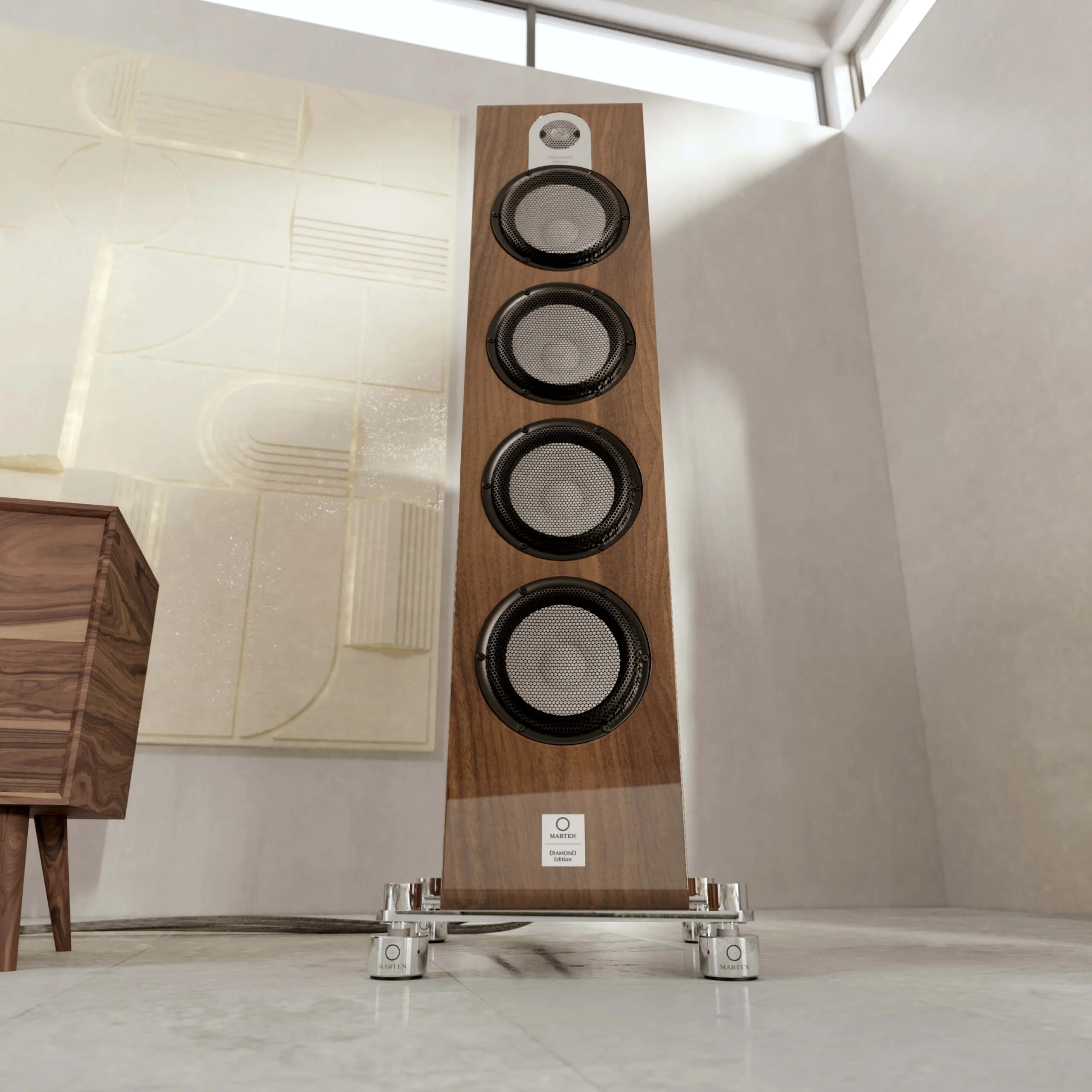

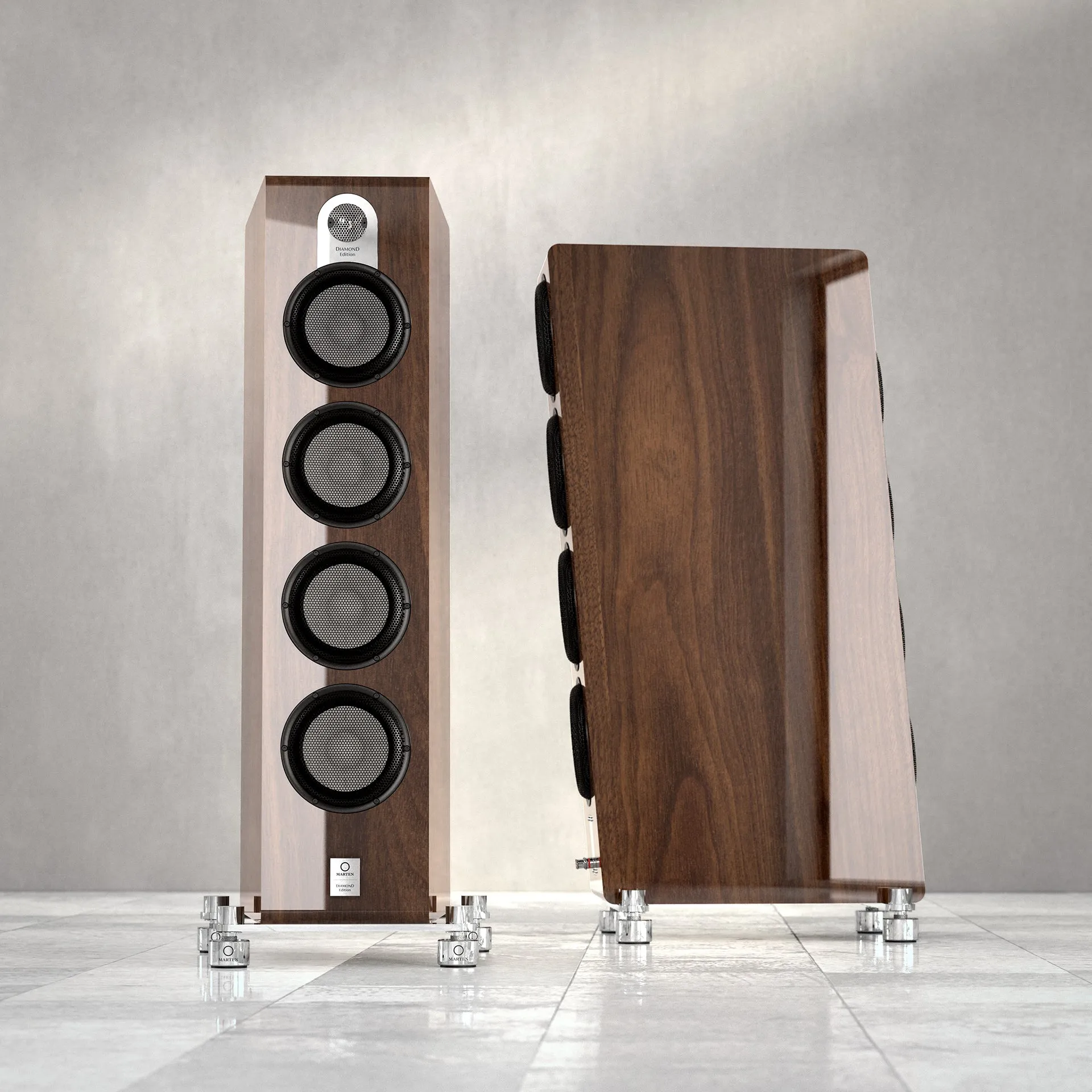

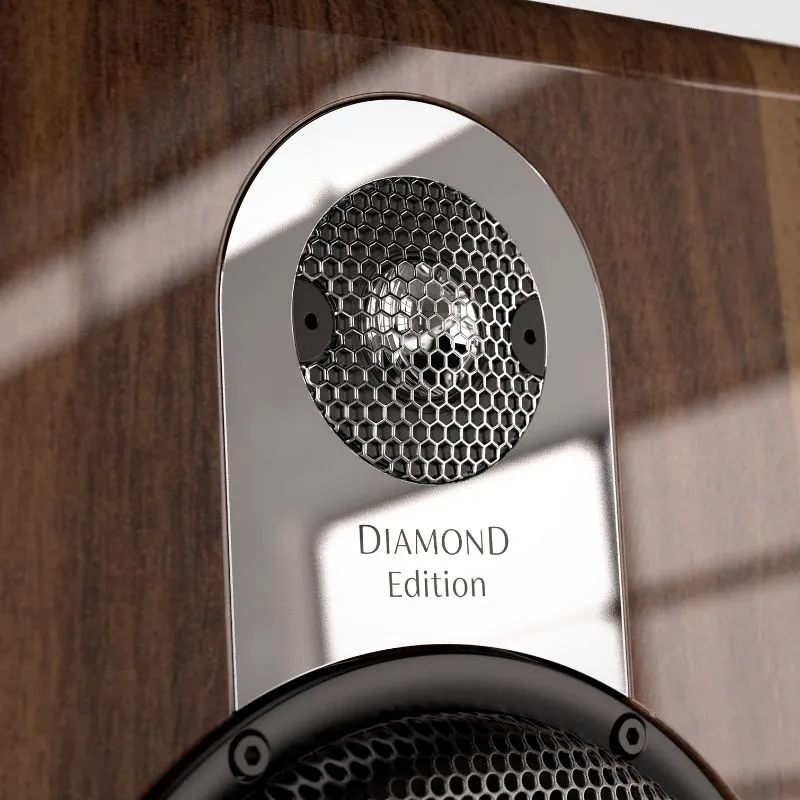

Parker Quintet can be upgraded to Diamond Edition, featuring a pure Diamond tweeter, Jorma Statement internal cables, more advanced crossover components and improved terminals. All Parker models can be elevated to the ultimate in premium loudspeakers.
Designed for the system, four 7.5 bass/midrange ceramic drivers offer a large surface area resulting in a large, precise soundstage and great dynamics. While passive radiators give the control and dynamics needed for Parker Quintet. A speaker of this class demands the ultimate in bass response.
A multi-diverse crossover technique was developed through hours of listening and testing, plus rigorous simulation, calculation and measurement. Weve really put the work in with this crossover, using the best components and precisely tuning it to work with the system.
We use Jorma Design internal wiring, for its exemplary quality and performance. Handmade in Sweden, the cables use separate and for enhanced shielding and the highest quality Copper. This offers natural, transparent sound; the perfect choice for our speakers.
Cables are integral components, so they must work harmoniously with our precision design and build. Jorma Design delivers exactly what a Marten speaker demands.
The reduction of resonance has always been important to the design of our cabinets the right isolation can mean the difference between a good speaker and a great speaker.

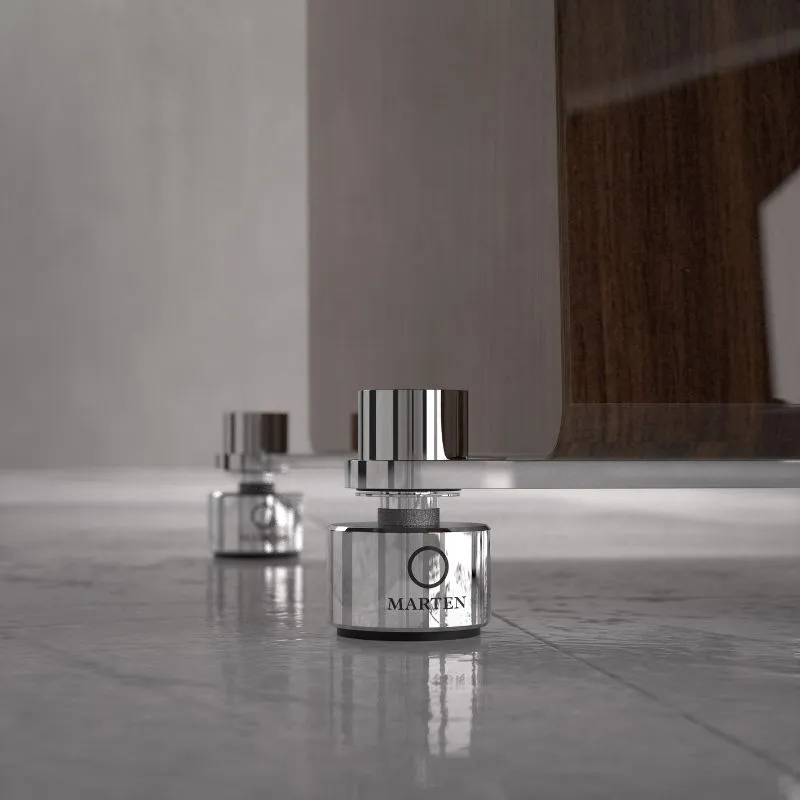

We worked with IsoAcoustics to design and make Marten Isolators. With this precision product, the speaker feels completely isolated from the floor, reducing resonance and distortion leaving the soundstage free. It also makes for richer, more controlled and dynamic bass.
TECHNICAL SPECIFICATIONS
Speaker (front)

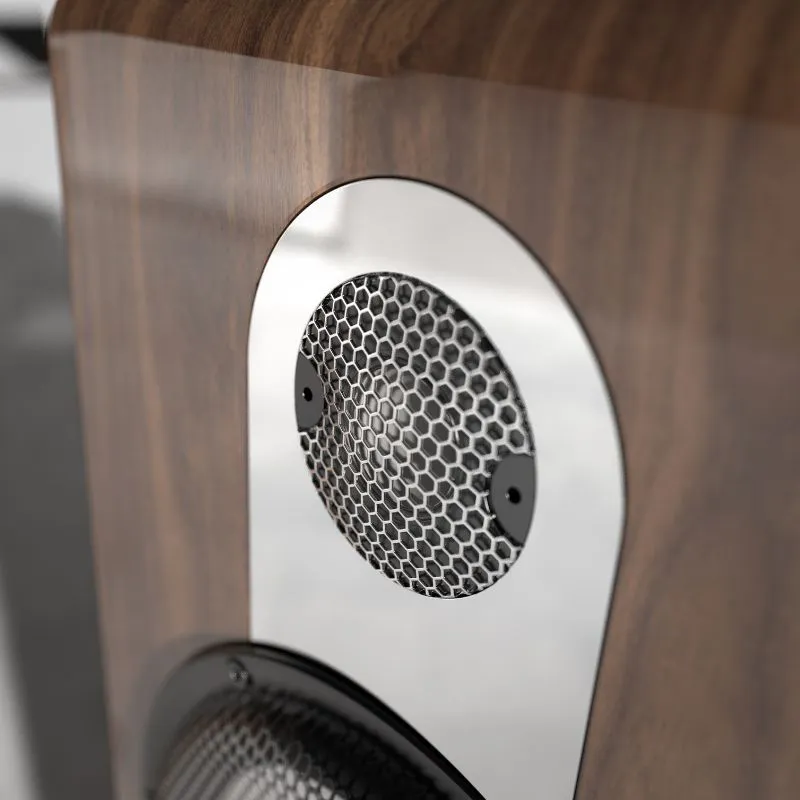

1 pure ceramic tweeter (upgradable to Diamond)
4 x 7.5 ceramic bass/midrange
Speaker (back)

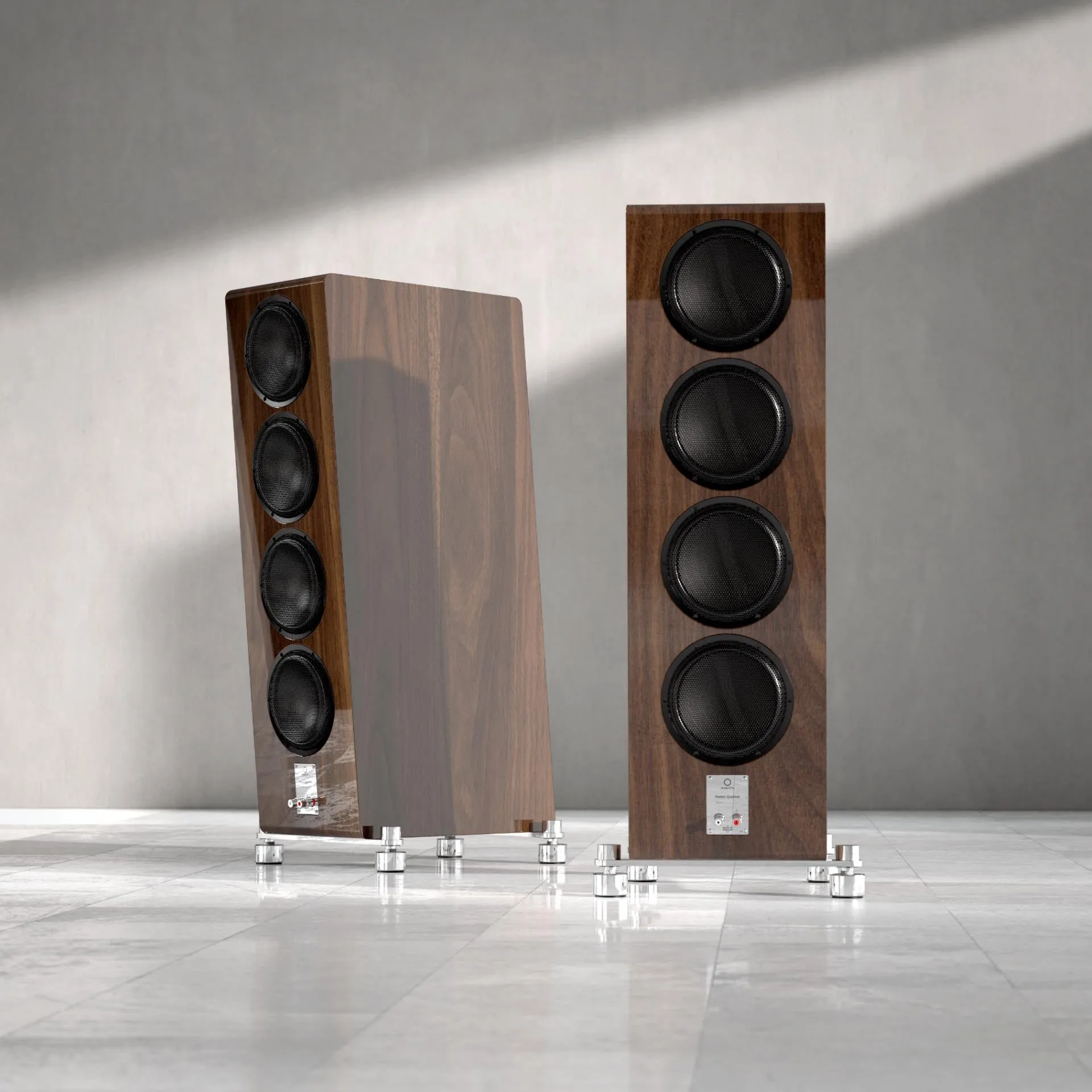

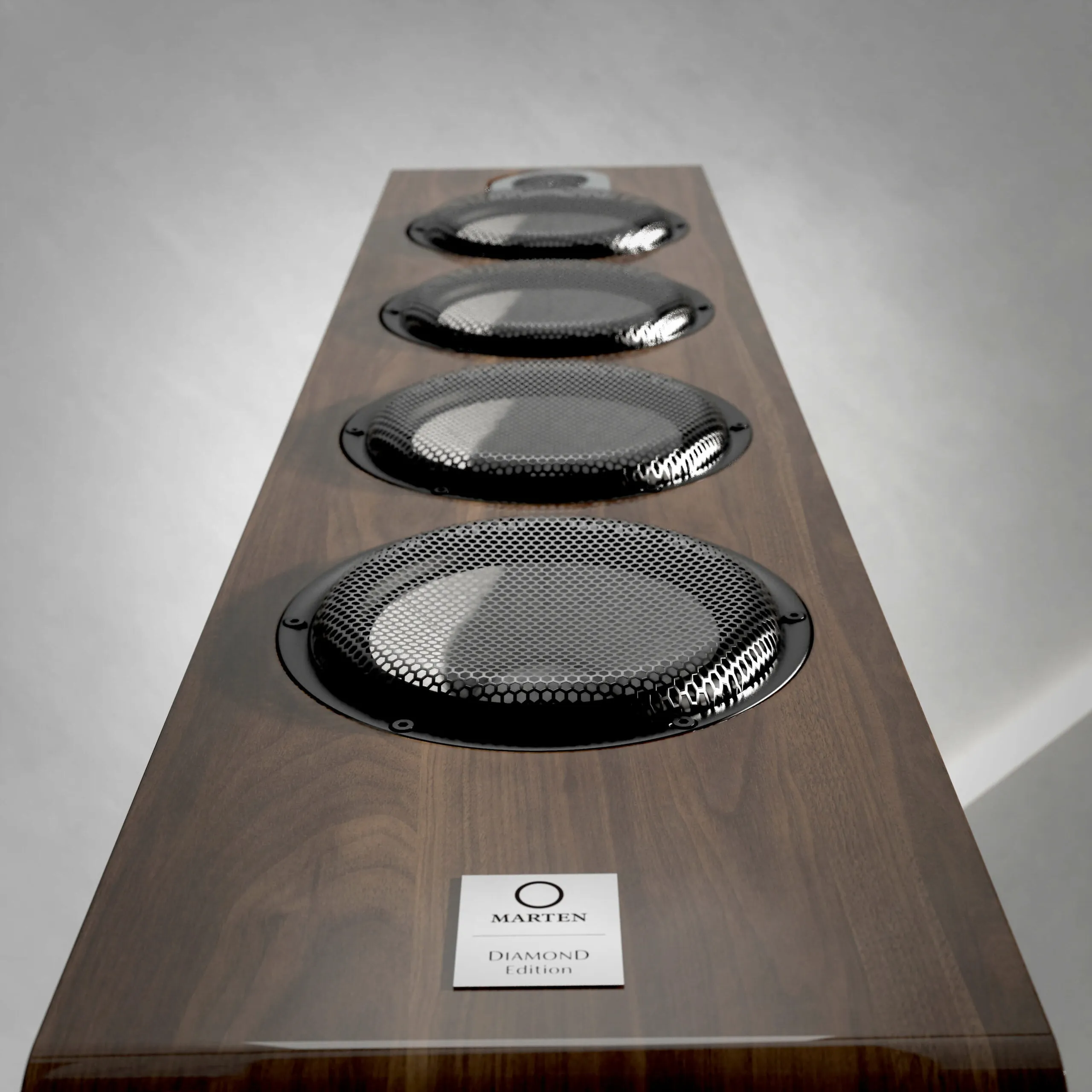

4 x 9 Aluminium passive radiator
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
24-40000 Hz -2dB
Power rating
350 W
Sensitivity
93 dB/2.83 V
Impedance
4 ohms (2.7 Ohms min)
Type
2.5-way
Crossover frequency
Multi diverse order,
2200 Hz

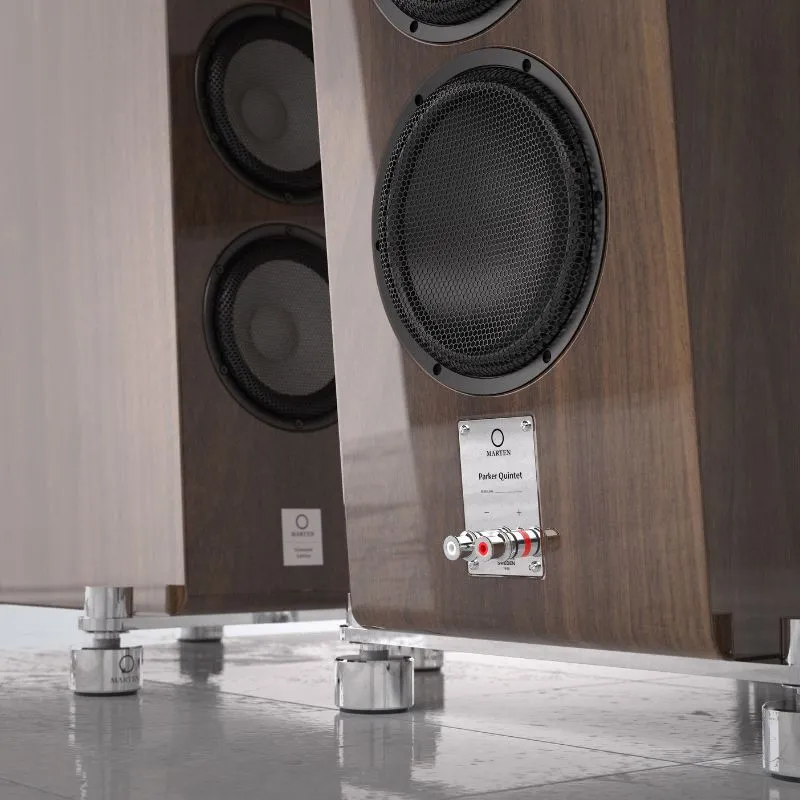

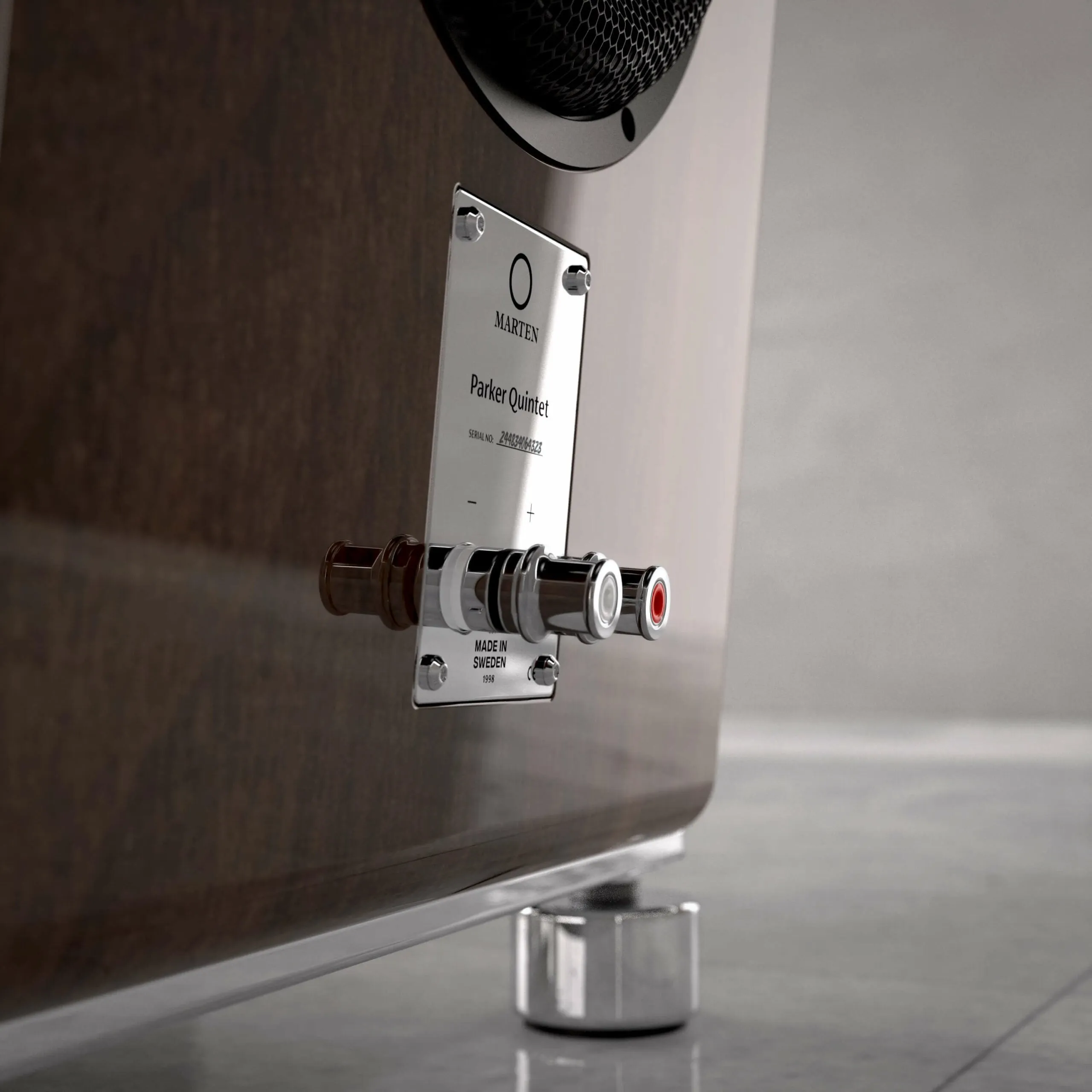

Terminals
Single-wiring
WBT Nextgen
Internal wiring
Jorma Design
Cabinet
35 mm M-board

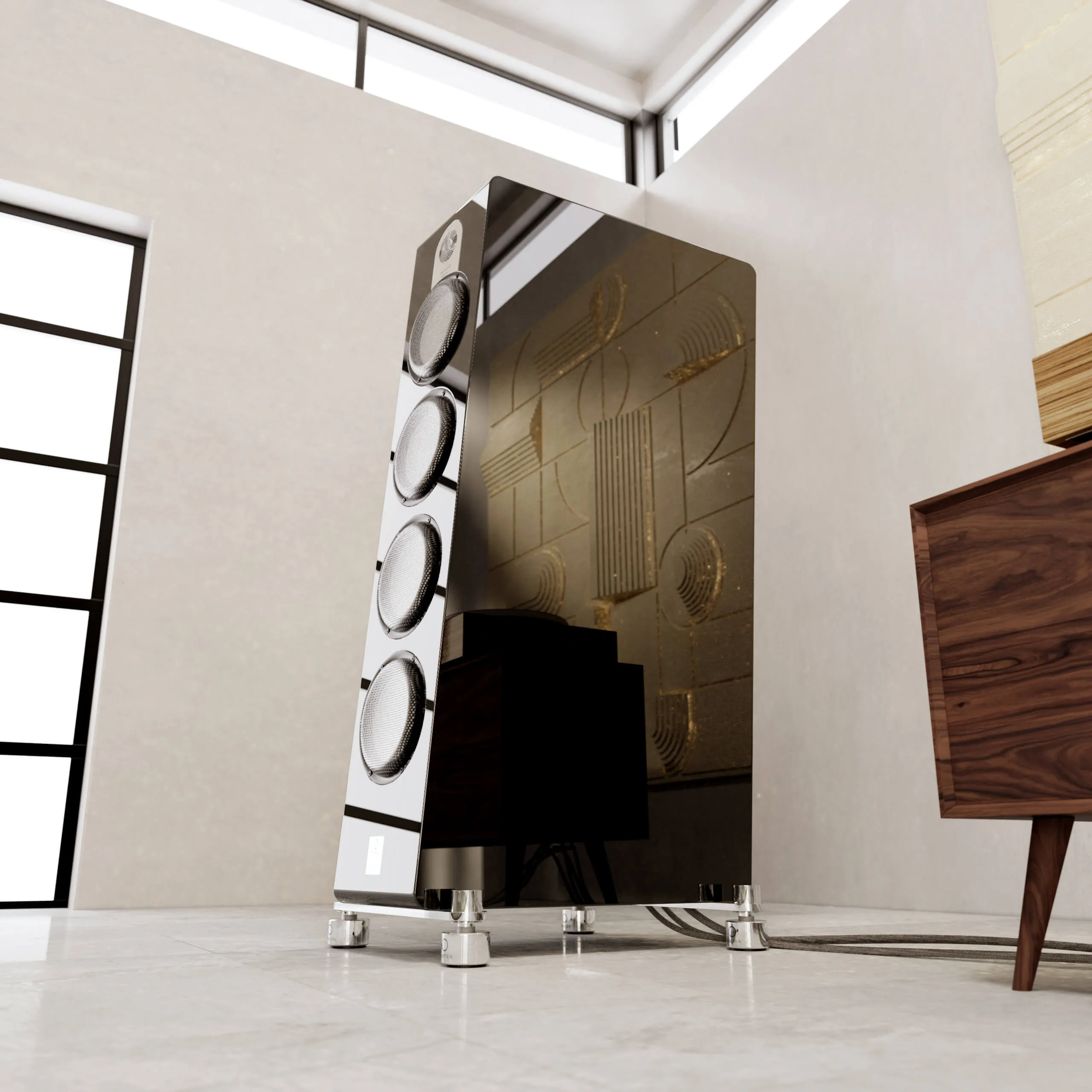

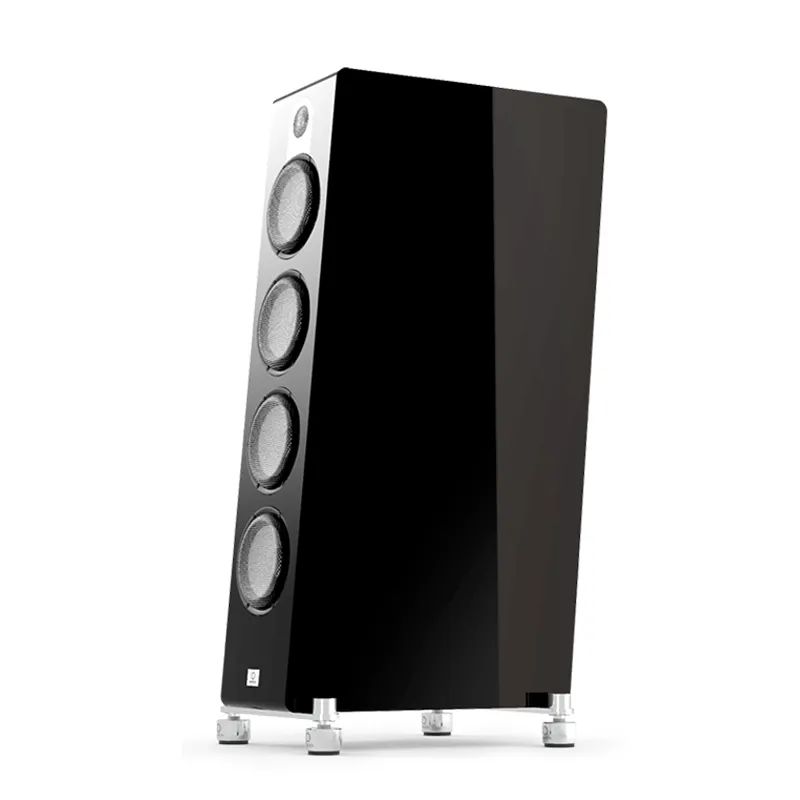

Piano Walnut, Matte Walnut or Piano Black
Stands and feet
Mirror polished stainless steel with
Marten Isolators
Dimensions W x H x D
24 - 33 x 117 x 54 cm
(9.4" - 13 x 46" x 21.3")
Net weight
60 kg (133 lbs)
