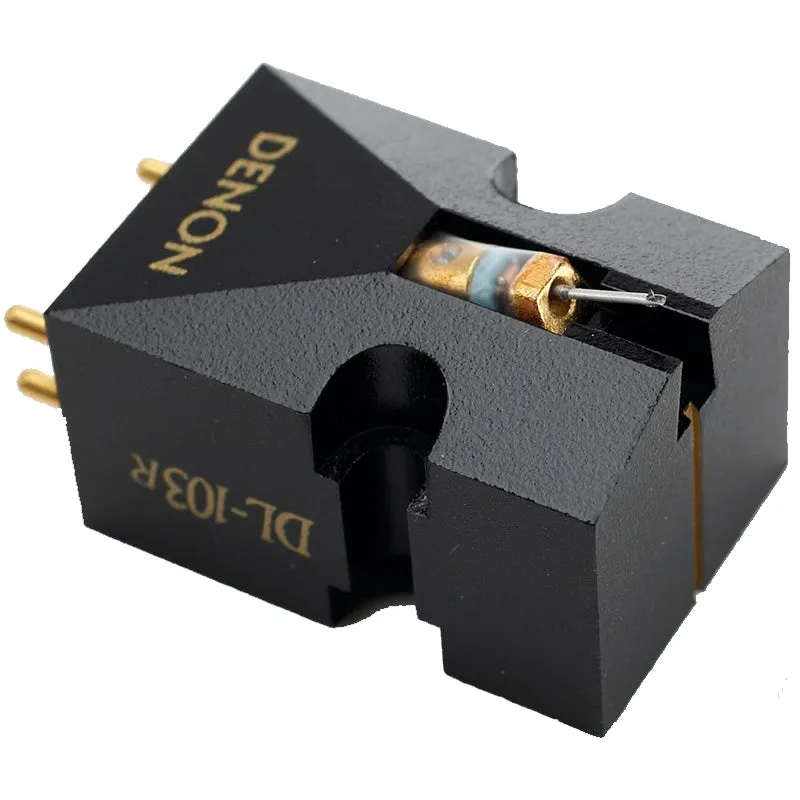

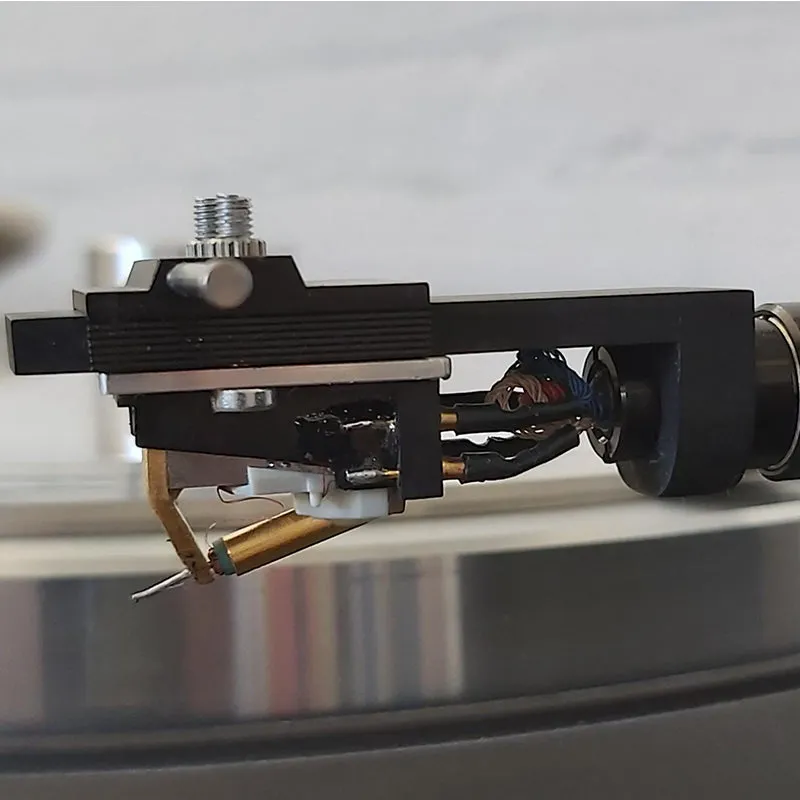

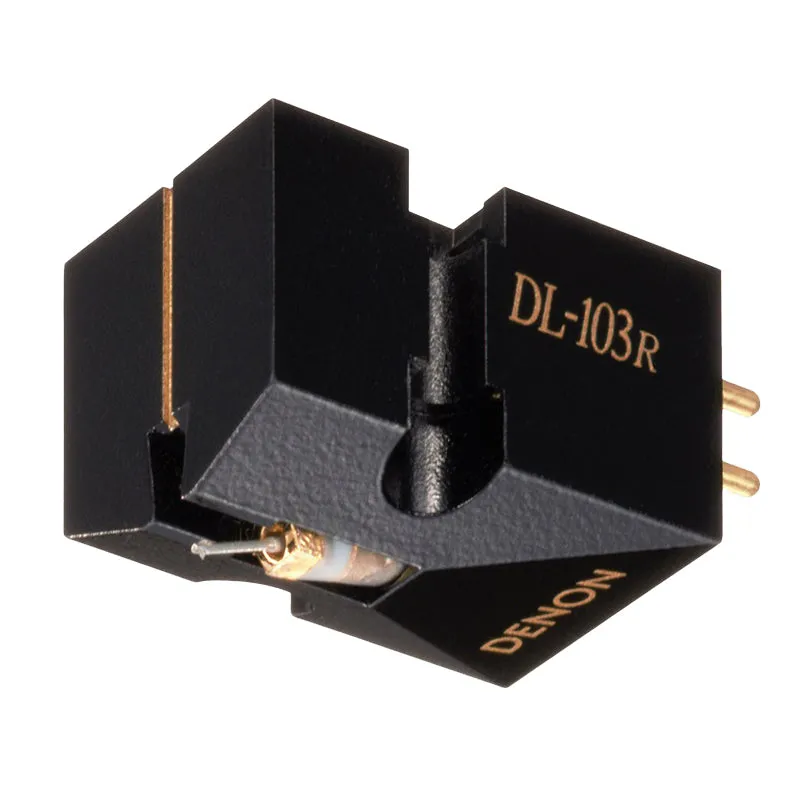

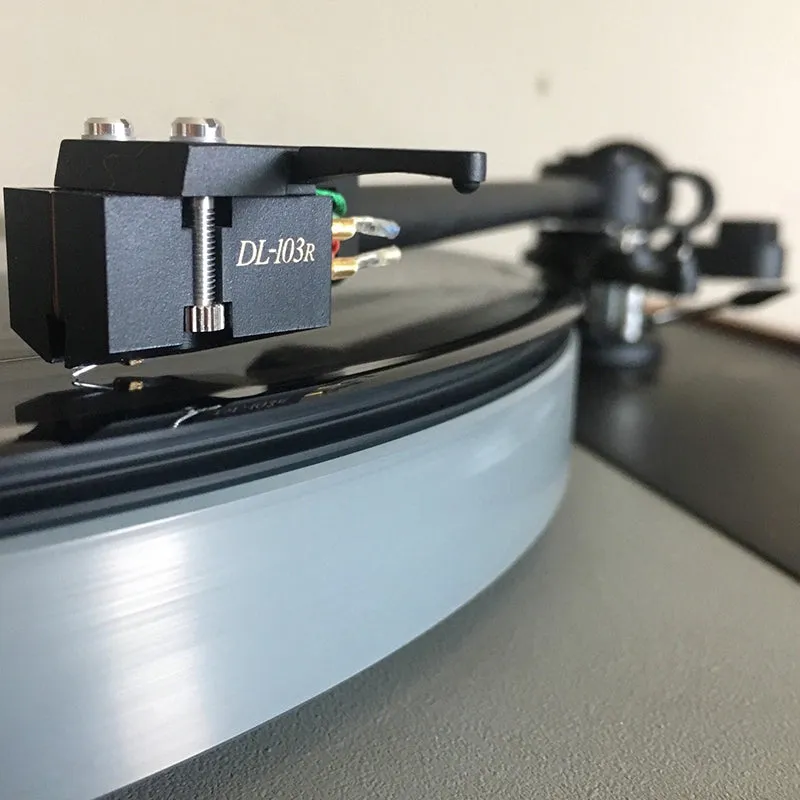

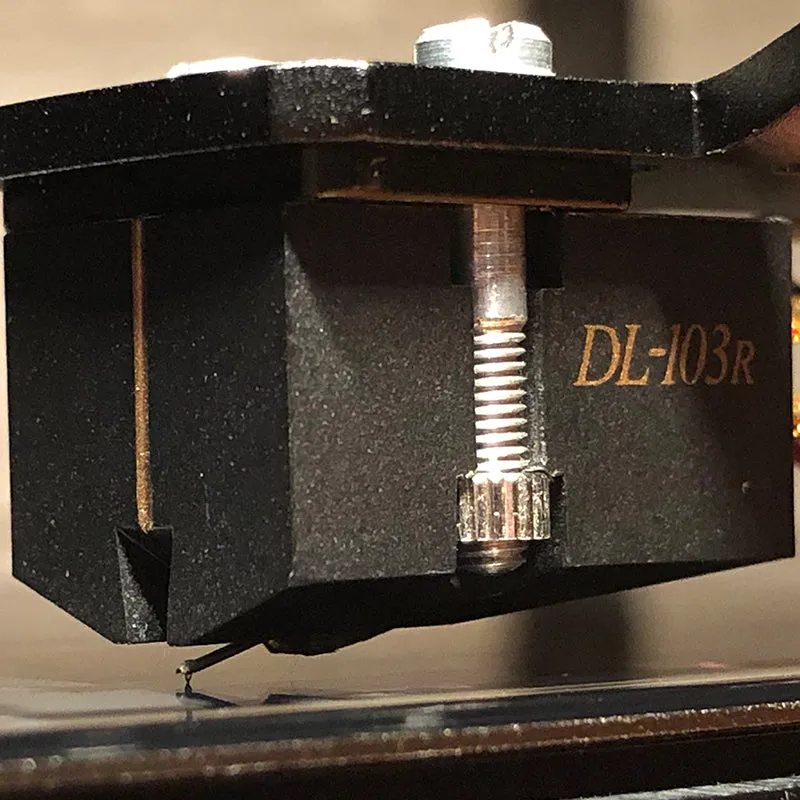

The DL-103R is an updated version of the classic DL-103. It provides improved sound by using 6N copper coils wound with precision to the cantilever shaft. Audio lovers will delight with the detail that is brought out by this outstanding phono cartridge.

Technical Specifications

• Principle Moving coil (MC) type
• Channel Balance 1 dB max. (1 kHz)
• Channel Separation 25 dB min. (1 kHz)
• Electrical Impedance 14 ohms 20%
• Compliance 5 x 10-3 m/N (Using a 100 Hz record)
• Stylus 0.2 mm square solid diamond
• Tracking Force 25 mN 3 mN (2.5 g 0.3 g)
• Load Impedance 100 ohms min. (40 ohms when using a transformer)
