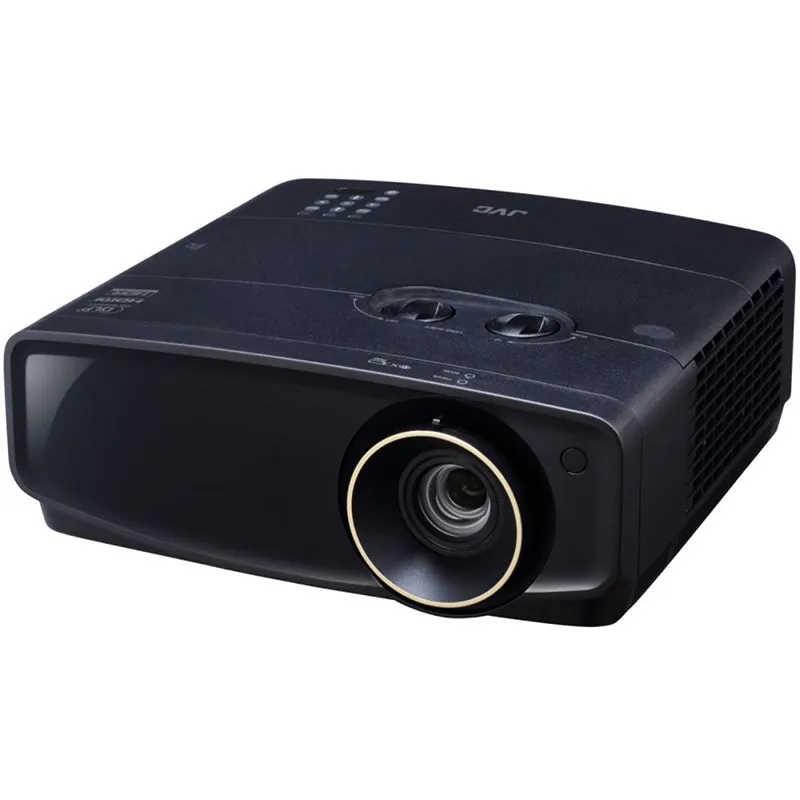

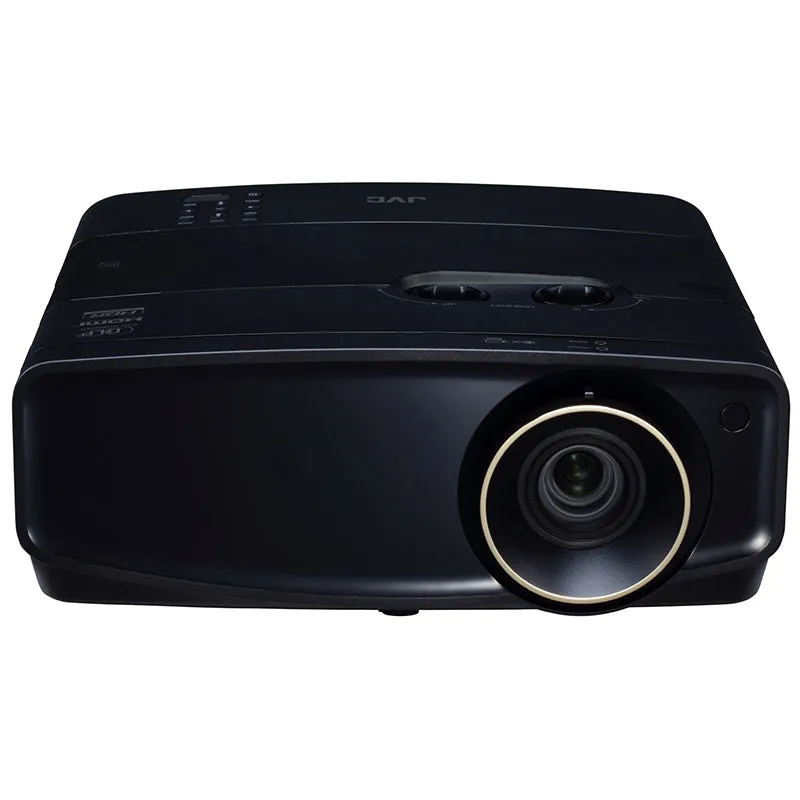

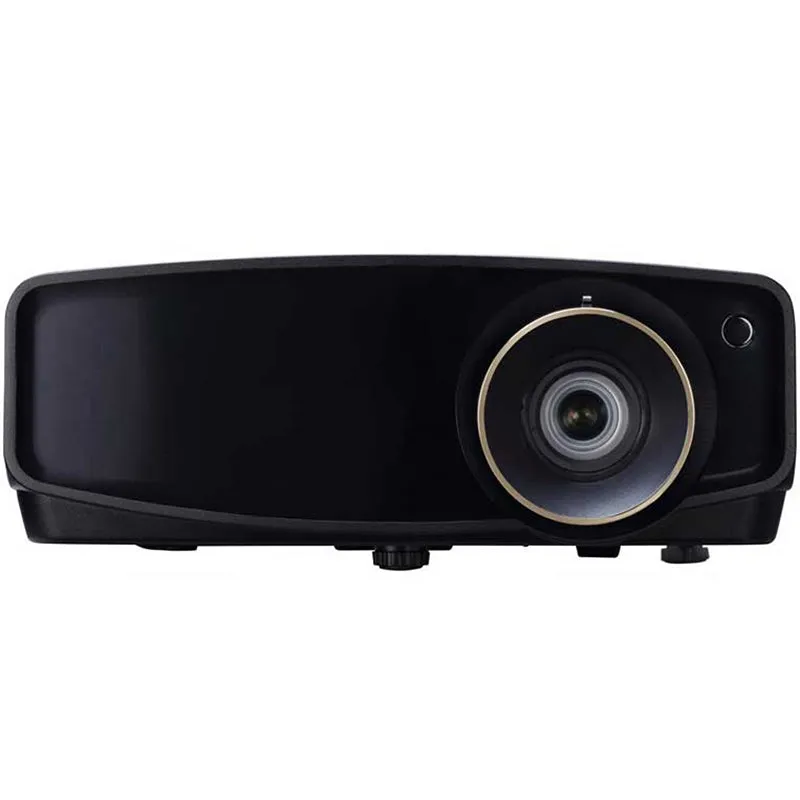

Name: Luxury Feel JVC LX-UH1 - (2000 Lumens) 4K HDR DLP Projector (Each) Almost Gone!
SKU: 306871

Product Details ＋

Full 4K Support with HDCP2.2

The LX-UH1 is compatible with full-spec 4K input at 18Gbps throughput supporting 4K/60p 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals for more vivid colours and subtle gradations. Whats more, HDCP2.2 compatibility means that this projector supports the latest video-streaming services and copyright-protected content such as UHD Blu-ray discs.

HDR (High Dynamic Range) for More Realistic Image

High Dynamic Range (HDR) is a technology to accurately reproduce realistic, dynamic images in which finer gradations and colors are clearly visible, even in the lightest and darkest areas of the picture. The LX-UH1 supports both HDR10 for UHD BD content and Hybrid Log Gamma (HLG) for broadcast signals.

Bright Picture and 100% Coverage of Rec. 709

Viewing movies, broadcast and other content in a room thats well lit can be difficult with a conventional projector. But despite its compact size, the LX-UH1 offers brightness of 2,000 lumens thanks to a highly efficient lamp system. And 100% coverage of the Rec. 709 gamut means you enjoy beautiful colour rendition.

Newly Developed 0.47-inch DMD for Bright High-definition 4K Images

4K resolution (3840 x 2160 pixels) is four times full HD resolution. As 4K content rapidly becomes mainstream for broadcasting, streaming and optical discs, you can be sure that the LX-UH1 will make the most of it, providing a bright, vibrant picture with all the detail. Impressive colour reproduction almost makes you feel immersed in the scenes unfolding on the screen

Wide Lens Shift Function: 60% Vertical, 23% Horizontal

A compact design facilitates projector installation but if lens shift is insufficient it may require keystone adjustment, which can degrade picture quality. There are no such worries with the LX-UH1, however, as it features a wide lens shift: 60% vertically and 23% horizontally.

1.6x High-resolution Lens

The LX-UH1 features a 1.6-times zoom lens. For a typical 100-inch picture size, the projector would be installed between 3 and 4.8 m / 9.8' and 15.7' from the screen an added convenience when space is at a premium. Refer to Projection Distance Chart on the back of the brochure for more.

Features

4K (3840 x 2160) via e-shift technology
HDMI/HDCP2.2 standard
Provides a 60% vertical lens shift and 23% horizontal lens shift
BT.2020 compatible - displays HDR content
100% of Rec.709 color space
HDR10 and Hybrid Log Gamma
2000 lumens
New 0.47-inch TRP digital micro-mirror device (DMD)
Data transfer rates up to 18Gbps
Recommended Screen size 60200 inch

SPECIFICATIONS

Info

Image Devices

Projection Technology: DLP

Projection Chip size: 0.47 inch

Number of Projection Chips: 1

Native Resolution: 1920 by 1080 Pixels

Electronic E-Shift Generation: Yes

Max Resolution: 3840 by 2160 Pixels

Light-Source

Light source technology: NSH

Number of Light sources: 1 unit

Expecting Lifetime regular mode: 4000

Expecting Lifetime save mode: 10000

Color Wheel: RGBRGB

Light and Contrast

Brightness Typical: 2000 ANSI Lumen

Dynamic Contrast: 100000 to 1

Color Space: REC 709

Lens

Model Name: Regular Lens

Description: Zoom Lens

Fix Lens: Yes

Lens include: YES

Zoom Electrical or Mechanical: Mechanic Manual

Focus Electrical or Mechanical: Mechanic Manual

Aperture ratio F:: 1.8 to 0

Focal length f:: 14.3mm to 22.9mm

Lens Ratio Factor: 1.35:1 to 2.17:1

For Lens Type A:: Regular Lens

A) Aperture ratio F:: 1.8 to 0

A) Focal length f:: 14.3mm to 22.9mm

A) Zoom Electrical or Mechanical: mechanical

A) Focus Electrical or Mechanical: mechanical

A) Lens Shift Vertical: /-60%

A) Lens Shift Horizontal: /-23%

A) Projection distance Wide to End: 2.85 m to 6m

A) Projection distance Tele to End: 4.56m to 9.6m

A) Screen Size in inch diagonal: 60 inch to 200 inch

Lens Aperture: Off / LOW / HIGH

Focus/Zoom Adjustment on internal Test Patterns: Yes

Functions

Picture Mode Presets: Natural / Cinema / Dynamic / User 1 / User 2

Color Temperature: High / Normal / Low / User

Gamma adjust: 2,2 Std. 1,8 / 2,0 / 2,1 / 2,2 / 2,3 / 2,4 / 2,6

E-Shift Control: OFF/ON

HDR Compatible: YES HDR with EOTF

HDR Gamma: Hybrid LOG

HDR Picture Mode: HLR

Color Management: 3D Color Management

Start up Logo: YES

Internal Test Patterns: YES

Standby Timer: Yes

ECO Mode: ON/OFF

Projector System Status Screen: Yes

Local Projector Control Buttons: Yes

Menu Position select: Yes

Black/Blue Screen select (in case of no Input source): Yes

Input Signal

Input Signal Capability Special Notes:: The Projector supports Auto Search for input devices

PC Input Signal: max. 1920 x 1200/60Hz

HDMI Input Signal: max. 3840 x 2160

Input Level Adjustment: HDMI 0-255 / Limited HDMI 16-235

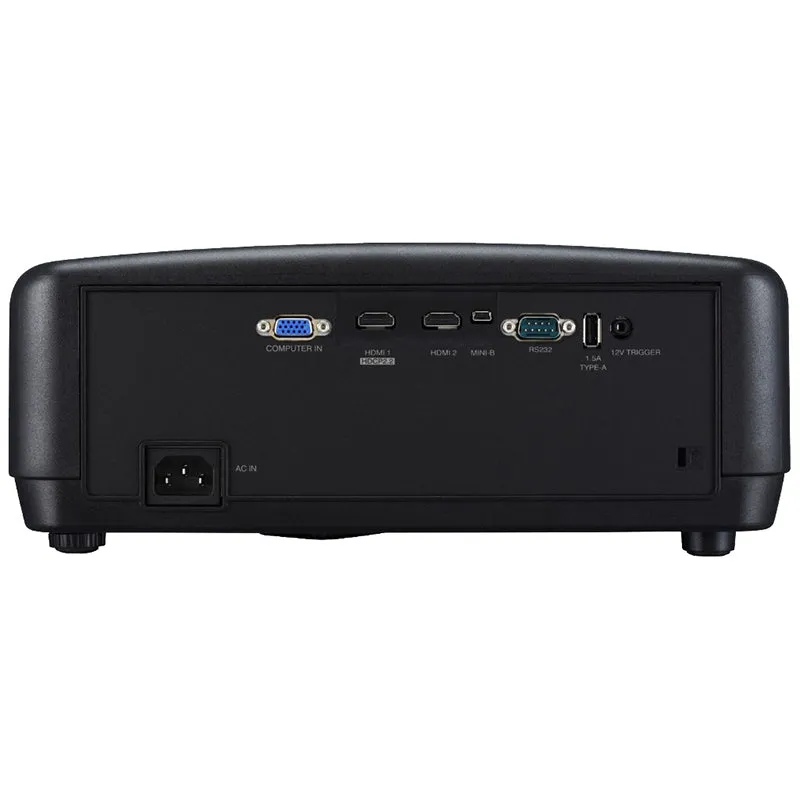

Input Terminals

RGB: Yes, D-SUB 15 PIN

HDMI: Yes, 2 x (HDCP2.2 x 1x,HDCP 1.4 x1)

USB: Type A for service only

Output Terminals

Trigger Terminal: Yes, 1 x (mini jack, DC12V/100mA)

RS-232C Terminal: Yes, 9 PIN sub D

Control Terminals

RS-232C Terminal: Yes, 1 x System D-sub 9-pin

IR Remote Receivers: 2 Front/Back

Power and Environment Specs

Noise Level (0-26 degree): 29dB/33dB (ECO/Normal)

Power Requirement: AC 100-240V, 50/60Hz

Power Consumption: 370 Watts

Power Standby: 0,5 Watt

Operation Temperature in Celsius: 0C to 40C

Operation Humidity:(Non-Condensing): 10% to 90%

Installation Height: 1500m-3000m at 0 degree to 30 degrees

Installation Angle: 0

Dimensions: W 333 x H 135 x D 332 mm

Weight: 4.8 kg

High Altitude Mode: see instructions

Include Package

Cord A: Power cord

IR Controller: Yes

Instruction Handbook: Yes

General Editing Note

General Note:: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
