Features:
The ultimate in refinement and extreme engineering.debuting Furutechs high-end performance Flow-28 in-line power filter
AC Power Can Make or Break Your System!
The audio you hear from your home entertainment system is essentially the incoming electricity itself, and the typically violent storms riding the AC line and its ground are very detrimental to the performance of your components.
Nobody truly enjoys the sound of high-frequency trash noise. But in many cases, listeners may not know just how noisy their audio/video systems areuntil all that EMI and RFI are removed and the music suddenly flows through like never before.
In most cases that would require some sort of power filter that removes the noiseand perhaps, unfortunately, some of the high frequencies as well.

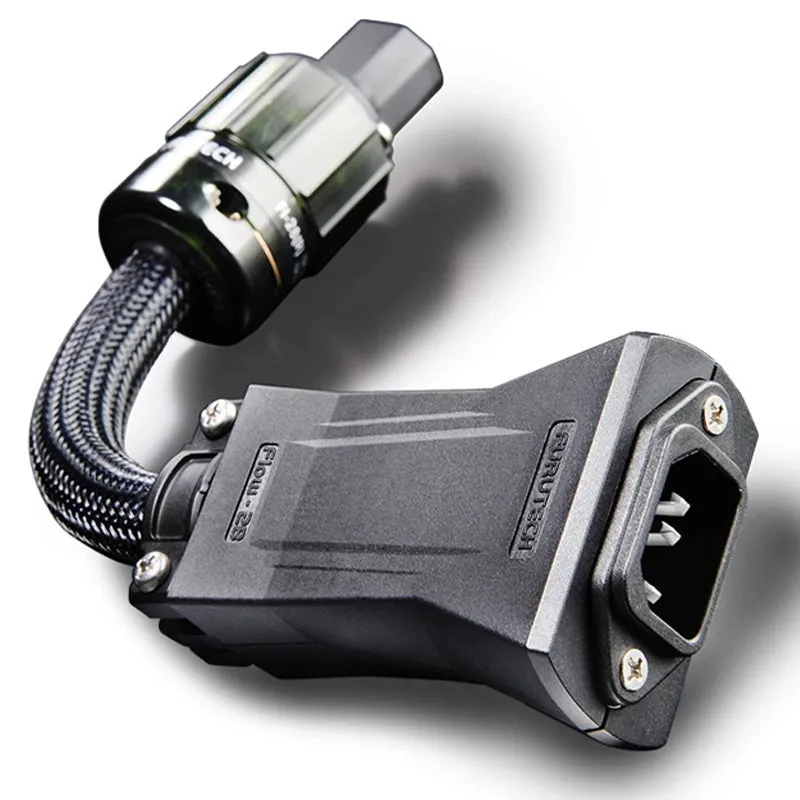

The Furutech Flow-28 Inline Power Filter effectively removes all of that high-frequency noise from the mains power before it reaches your componentsall without robbing your system of the high frequencies that are responsible for that airy, 3-D sound thats so natural and lifelike. Dynamic contrasts, youll discover, are unaffected as well. Just stick the Flow-28 between power cords and components, or power cords and power distributors, and eliminate all radiated AC noise from your system.
Furutech accomplishes this feat through meticulous engineering, and by constantly examining each part of the power signal.
All metal parts are treated with Furutechs Two-Step Cryogenic and Demagnetizing Alpha Process.
SPECIFICATIONS
Connectors: Furutech-engineered nonmagnetic rhodium-plated FI-28(R) connector (or FI-32(R)) with Floating Field Damper System
AC-1501R EMI-filtering IEC, rhodium-plated (Alpha) nonmagnetic copper alloy conductors
AC-1501R EMI filter features a parallel circuit with in-line coil and condenser, reducing noise at 1MHz by 10dB and at 10MHz by more than 30dB
Patent-pending metal cable clamp improves grip and reduces mechanically and electrically induced distortion
Cable Specifications:
Conductors: 56-strand (Inner) and 29-strand (Outer) (Alpha) OCC conductor0.175mm x 3 cores
Insulation-1: Special irradiated PE (Red/Natural/Yellow) 3.45mm diameter
Insulation-2: irradiated PE surrounded by Teflon tape wrap, 3.6mm diameter
Inner Sheath: RoHS-compliant flexible PVC incorporating carbon particles
Shield: 0.12mm diameter (Alpha) Conductor wire braid
Sheath: RoHS-compliant flexible PVC, 14.2mm diameter
Jacket: Vibration damping special Nylon Yarn Braid (Black)
(Alpha) conductor shield for protection against radiated noise
RoHS-compliant flexible PVC sheath improves vibration isolation
Special high-grade PE Insulation contributes to reduced capacitance
Incorporating Furutechs special passive GC-303 EMI filtering material
AC-1501R Specifications:
Rhodium-plated (Alpha) non-magnetic copper alloy conductors
Outer cover Cr Plated steel plate
Inner cover Nylon glass fiber
Inner Box Nylon glass fiber
Inner parts held by Piezo Epoxy
Rating AC 115V/250V 15A 50/60Hz
