Name: Limited Edition McIntosh MHA150 2-Channel Headphone Amplifier Going Fast!
SKU: 306508

Product Details ＋

The MHA150 Headphone Amplifier is a worthy successor to the critically-acclaimed MHA100. The MHA150 contains the same feature set and performance standards but adds our new 2nd generation digital-to-analog converter (DAC) that provides support for DSD and DXD files to give you access to the latest in digital music.

Like the MHA100, the MHA150 continues to take advantage of unique McIntosh technologies to create the best possible personal listening experience regardless of the headphones you use. Our Autoformer technology found in our large mono and stereo amplifiers has been adapted to produce three headphone impedance ranges of 8-40, 40-150, and 150-600 Ohms so that every headphone will receive the legendary McIntosh sound quality and performance.

For enjoying DSD and DXD files, the USB input accepts PCM signals up to 32-bit/384kHz and supports DSD64, DSD128, and DSD256 along with DXD 352.8kHz and DXD 384kHz. Our proprietary MCT input has also been added to the MHA150; when paired with the MCT80 SACD/CD Transport, it offers a secure DSD connection for playback of the high definition audio on SACDs.

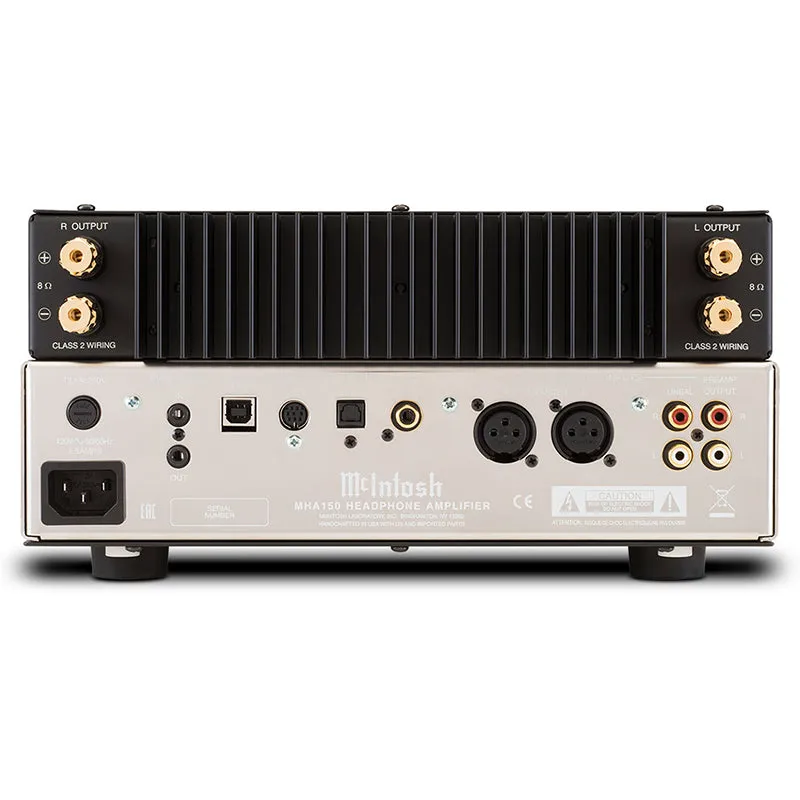

For connecting digital devices, an optical and coaxial input is included along with the USB and MCT inputs; two analog inputs are also available. Headphone Crossfeed Director (HXD) brings added dimension to your music in a natural-sounding way but can be turned off depending on your preferences. The MHA150 is smaller than our other amplifiers, giving you additional flexibility to locate it almost anywhere in your space. Its the same width as the MB50 Streaming Audio Player and the two can be combined to start building a complete system.

The MHA150 is powerful and versatile enough to drive a pair of quality desktop or small bookshelf speakers via its 50 Watt stereo speaker outputs. Our patented Power Guard technology is included and will prevent clipping that could damage your headphones or speakers. A 5 step Bass Boost Control allows for further sound customization. It is one of many McIntosh products to receive Roon Tested designation from Roon Labs. It has been profiled and tested by both Roon and McIntosh for maximum compatibility. Roon will recognize it and send it audio optimized for its capabilities. No fiddling with checkboxes or dropdowns, Roon Tested devices are automatically identified and configured out of the box for superior customer experience.

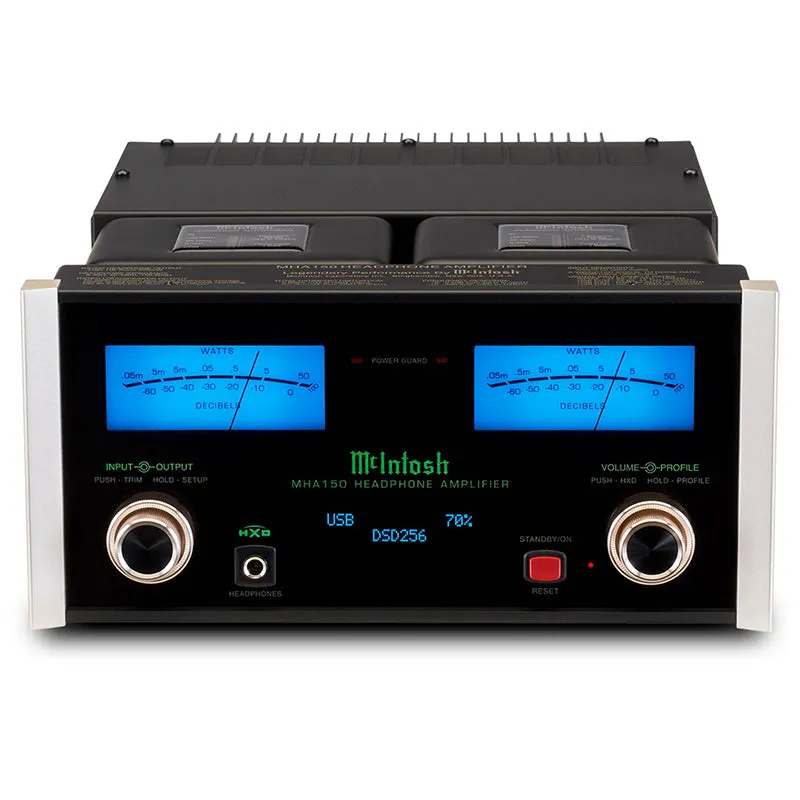

The entire unit is housed in a beautiful polished stainless steel chassis that not only complements the classic glass front panel, knobs, and brushed aluminum end caps but virtually any room decor.

SPECIFICATIONS

HEADPHONE OUTPUT SPECIFICATIONS

Headphone Power Output -

High Selection: 1W

Normal Selection: 250mW

Headphone Output Impedance

8-40 Ohms

40-150 Ohms

150-600 Ohms

ELECTRONIC SPECIFICATIONS

Power Output per Channel - 50 Watts

Speaker Impedance - 8 Ohms

Rated Power Band - 20Hz to 20kHz

Total Harmonic Distortion - 0.005%

Intermodulation Distortion - 0.005% maximum, if the instantaneous peak power is 100 watts or less per channel with both channels operating for any combination of frequencies from 20Hz to 20kHz

Dynamic Headroom - 1.5dB

Frequency Response -

0, -0.5dB from 20Hz to 20kHz

0, -3dB from 10Hz to 100kHz

Sensitivity (Unbalanced) - 300mV

Sensitivity (Balanced) - 600mV

Maximum Input Signal (Unbalanced) - 8V

Maximum Input Signal (Balanced) - 16V

Signal To Noise Ratio - 105dB

Input Impedance (Balanced / Unbalanced) - 25K/25K

Damping Factor - >150

Preamplifier Output - 3V (8V maximum)
