Product Details
＋

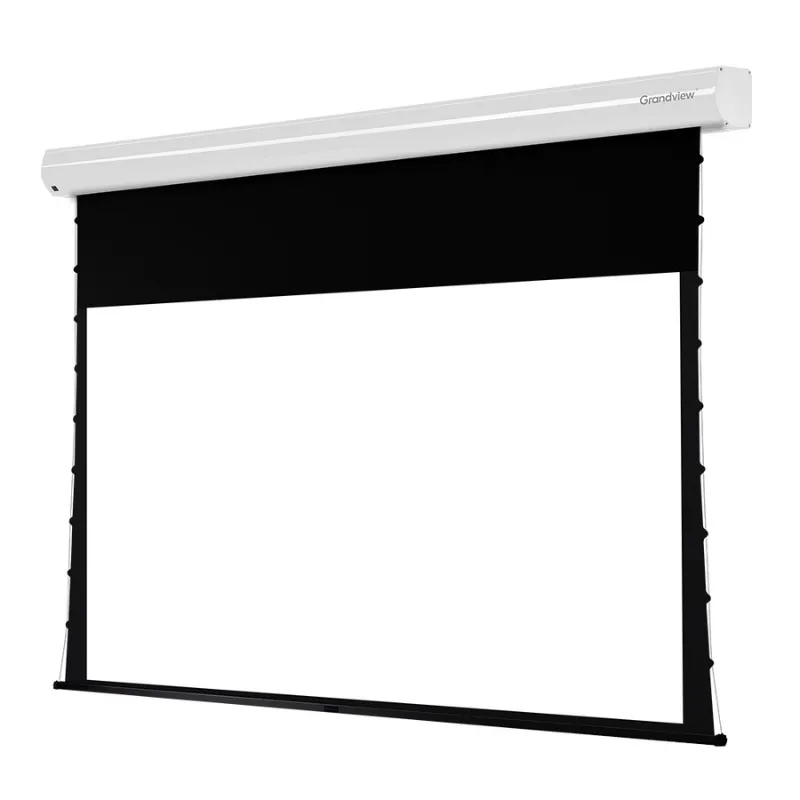

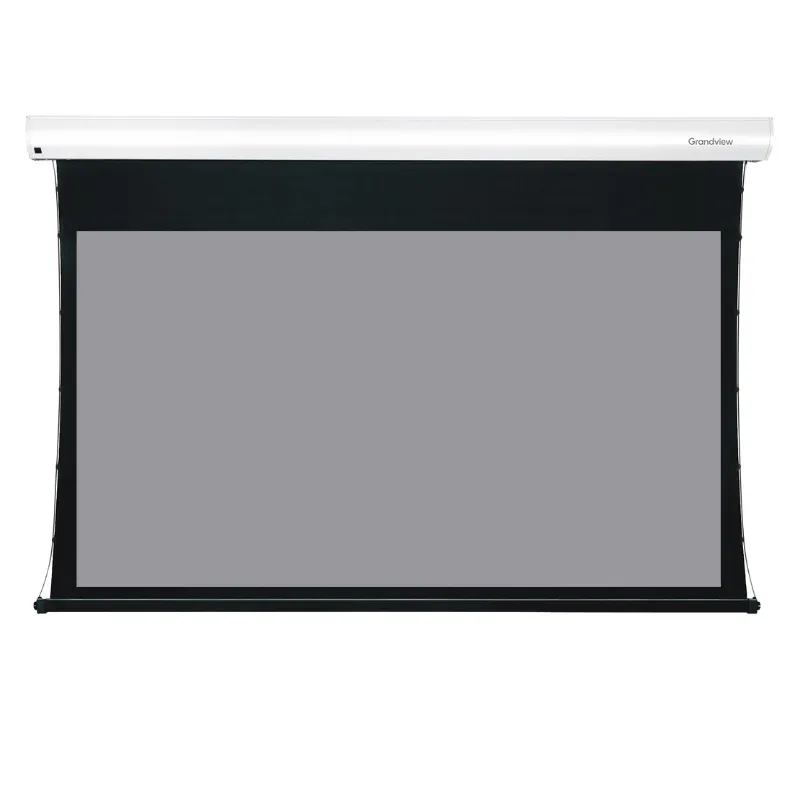

The Cyber Series design is the result of inspiration derived from Renaissance Era architecture and ancient Corinthian columns. Innovative features such as the floating L-bracket which makes installation extremely easy. Cyber Series screens are available in both motorized and tab-tension variants. It is available in a wide range of sizes allowing it to be used in various installation environments.
Sizes: Model A ( 120"-150" ), Model B (120")
Installation Options: Floating Wall Mount / Ceiling Mount / Suspended Mount
Control Options: Inbuild IR Remote Control ; RS485 Dry Contact Control , 3-12Voltage Trigger Control ; IP ControlLF-MP Model Only; Central Control etc.
Product Specifications for 16:9
| Diagonal Measurement | Viewing Area (WH) mm | Product Height (A) mm | Black Drop (B3) mm | Lower Border (B2) mm | Left/Right (B1) mm | Product Length (L) mm | Endcap Height (Hc) mm | Endcap Width (Wc) mm |
|---|---|---|---|---|---|---|---|---|
| 92" | 2037 1146 | 1803 | 400 | 65 | 80 | 2490 | 145 | 137 |
| 100" | 2214 1245 | 1902 | 400 | 65 | 80 | 2672 | 145 | 137 |
| 106" | 2346 1320 | 1977 | 400 | 65 | 80 | 2804 | 145 | 137 |
| 110" | 2435 1370 | 2027 | 400 | 65 | 80 | 2896 | 145 | 137 |
| 120" | 2656 1494 | 2151 | 400 | 65 | 80 | 3114 | 145 | 137 |
| 138" | 3055 1718 | 2375 | 400 | 65 | 80 | 3512 | 145 | 137 |
| 150" | 3320 1867 | 2524 | 400 | 65 | 80 | 3784 | 145 | 137 |
