RATING
GTX-D NCF(R) - 20A 125V

Suggested max. torque setting for the polarity screws of the GTX-D series is 12Kgcm / 10 inch-pounds / 117 centiNewton meters Using a PH2 type screwdriver

FEATURES
Furutechs Top-Tier GTXD NCF Receptacles... Refinement has a New Name...

Nano Crystal Formula (NCF) - Nano Crystalline, Ceramic and Carbon Powder
Incorporated into select Furutech products, Nano Crystal Formula --- NCF is comprised of a special crystalline material that has two active properties. First, it generates negative ions that eliminate static and secondly, it converts thermal energy into far-infrared. Furutech then combines this remarkable crystalline material with nano-sized ceramic particles and carbon powder for their additional Piezo Effect damping properties. The resulting Nano Crystal Formula is the ultimate electrical and mechanical damping material only found in Furutech products!

The Pure Transmission Mission
The GTX-D NCF manifests a devotion to best performance in every element of AC and signal transfer. Considering that what you actually hear is in a very real sense the direct product of the incoming AC then the final few feet are of prime importance for best performance.
Of course everyone would love to make pure-copper receptacles, but its malleability lack of stiffness makes pure copper a poor choice. Thats why youll find less conductive metals like beryllium copper, phosphor bronze or brass in most receptacles. Furutechs intense engineering scrutiny has resulted in an industry-first, a technique allowing us to use special Furutech rhodium-plated (Alpha) pure copper conductors strengthened and sprung by our innovative nonmagnetic Stainless Steel Conductor Spring System that keeps a firm grip yet wont damage male connector blades or their plated surfaces. But what really sets the GTX-D NCF receptacle apart is NCF Furutechs ultimate damping material - Nano Crystal Formula eliminates static, interconverts thermal, mechanical and electrical energy and damps vibrations. The GTX-D NCF can be summed up in a word; virtuoso!

SPECIFICATIONS

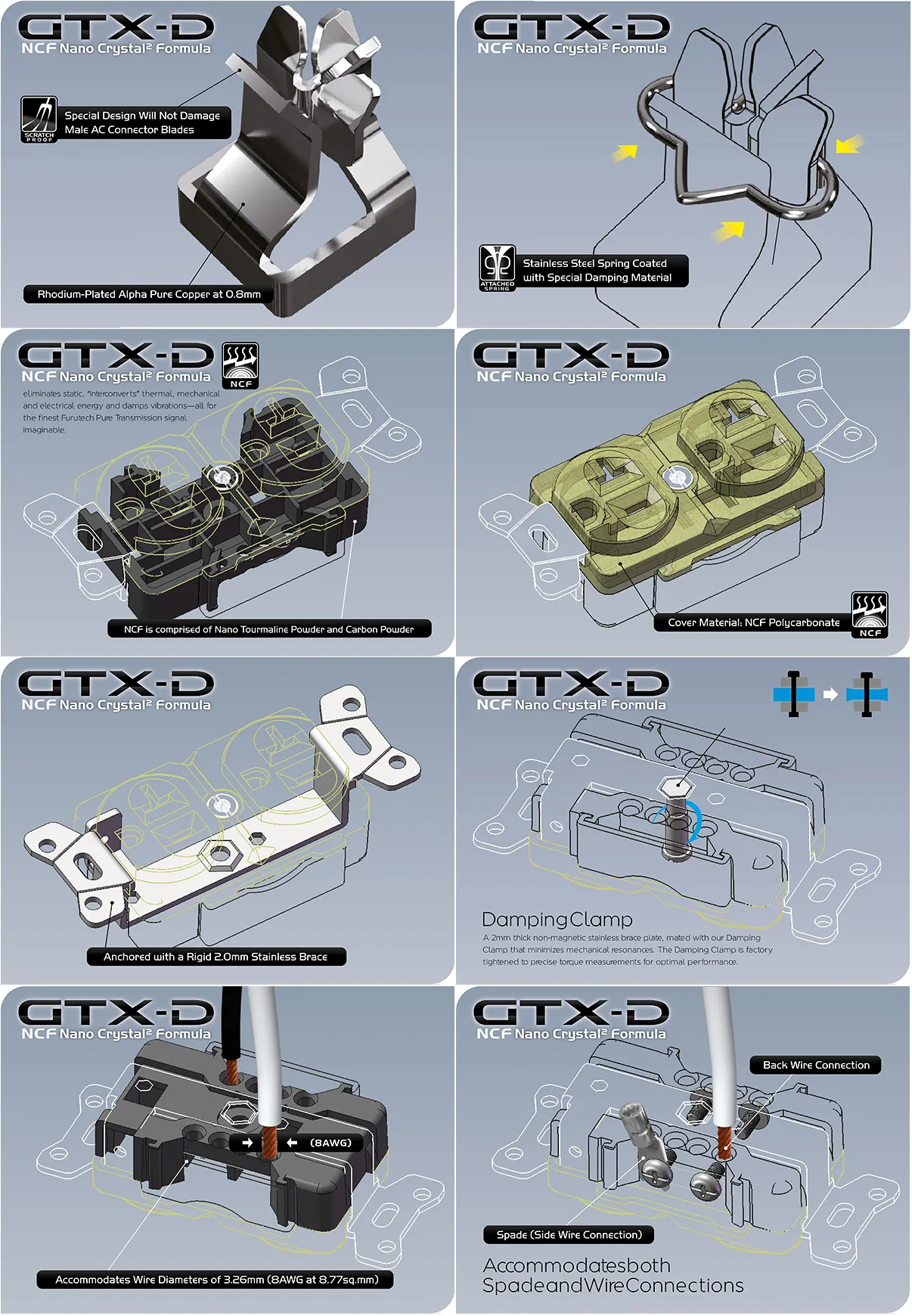

- Rhodium-plated (Alpha) Pure Copper Conductor (0.8mm) Nonmagnetic stainless conductor spring system
- Body material: Nylon/fiberglass with anti-resonance nano-sized crystalline, piezo ceramic particles and carbon.
- Cover material: Polycarbonate with a special anti-resonance nano-sized crystalline material NCF
- Parts set with 2.0mm-thick stainless brace plate with minimal magnetic properties
- Specified for wire diameters of 4mm (set screw)
- Dimensions: 104.0 mm (L) x 47.2 mm (W) x 28.0 mm (H)
- Total attention to detail and build quality extends right down to a specially designed patent-pending conductor pressure plate that increases contact area
- Furutech spade terminal FP-209 recommended for 10 AWG wire
