Features:

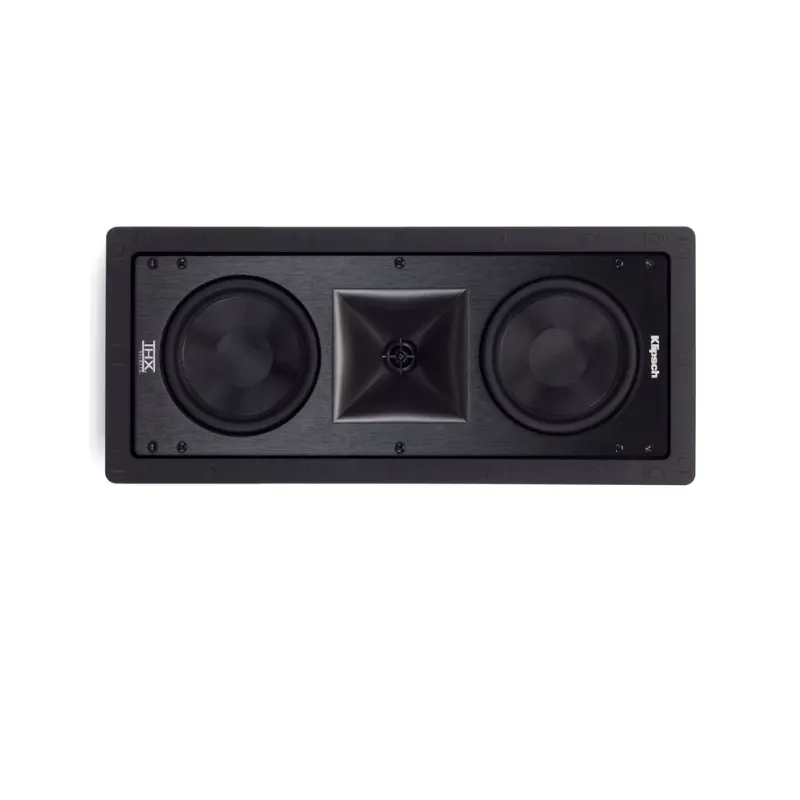

• 1" Titanium Diaphragm Compression Driver mated to 90 x 90 square Tractrix Horn
• Dual 5.25" Fiberglass Cone Woofers
• THX Select 2 Certified
• Cinema Quality Sound
• Maximum Installation Reliability
• Unlimited Flexibility

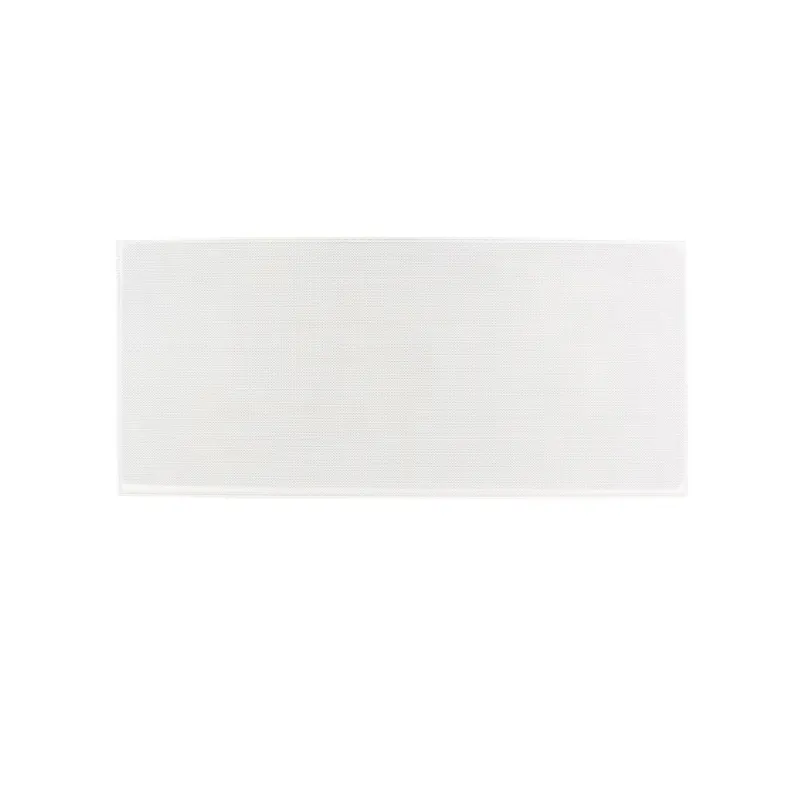

• Edge-to-Edge Grille

Specifications

System Type:

• 2-way In-wall

Performance:

• Frequency Response: 46Hz - 20kHz 3dB
• Power Handling: 100W/400W
• Recommended Amp Power: 150W
• Sensitivity: 92dB @ 2.83V / 1m
• Impedance: 8 Ohms switchable

Drivers:

• High Frequency Driver: 1 (2.5cm) Titanium diaphragm compression driver mated to 90 x 90 square Tractrix Horn
• High Frequency Crossover: 2100Hz & 1200Hz
• Low Frequency Driver: Dual 5.25 (13.3cm) high-output, fiberglass cone woofers

Speaker Enclosure:

• MDF & Aluminum motorboard / ABS frame
• Enclosure Type: Infinite baffle, front flush with wall

Dimensions:

• Hole Dimensions (H x W x D): 16.5 (41.9cm) H x 6.5 (16.5cm) W
• Overall Dimensions (H x W): 17.98 (459.69mm) H x 8.11 (205.99mm) W
• Mounting Depth: 3.49 (88.65mm)
• Weight: 9.6lbs (4.4kg)

Finish:

• White (paintable)

Installation Kit:

• IK-502-W

Cutout Dimensions:

• 16.42 (417.07mm) L x 6.57 (166.88mm) W
