EFFICIENT AMPLIFIER FOR

MULTIZONE INSTALLATIONS

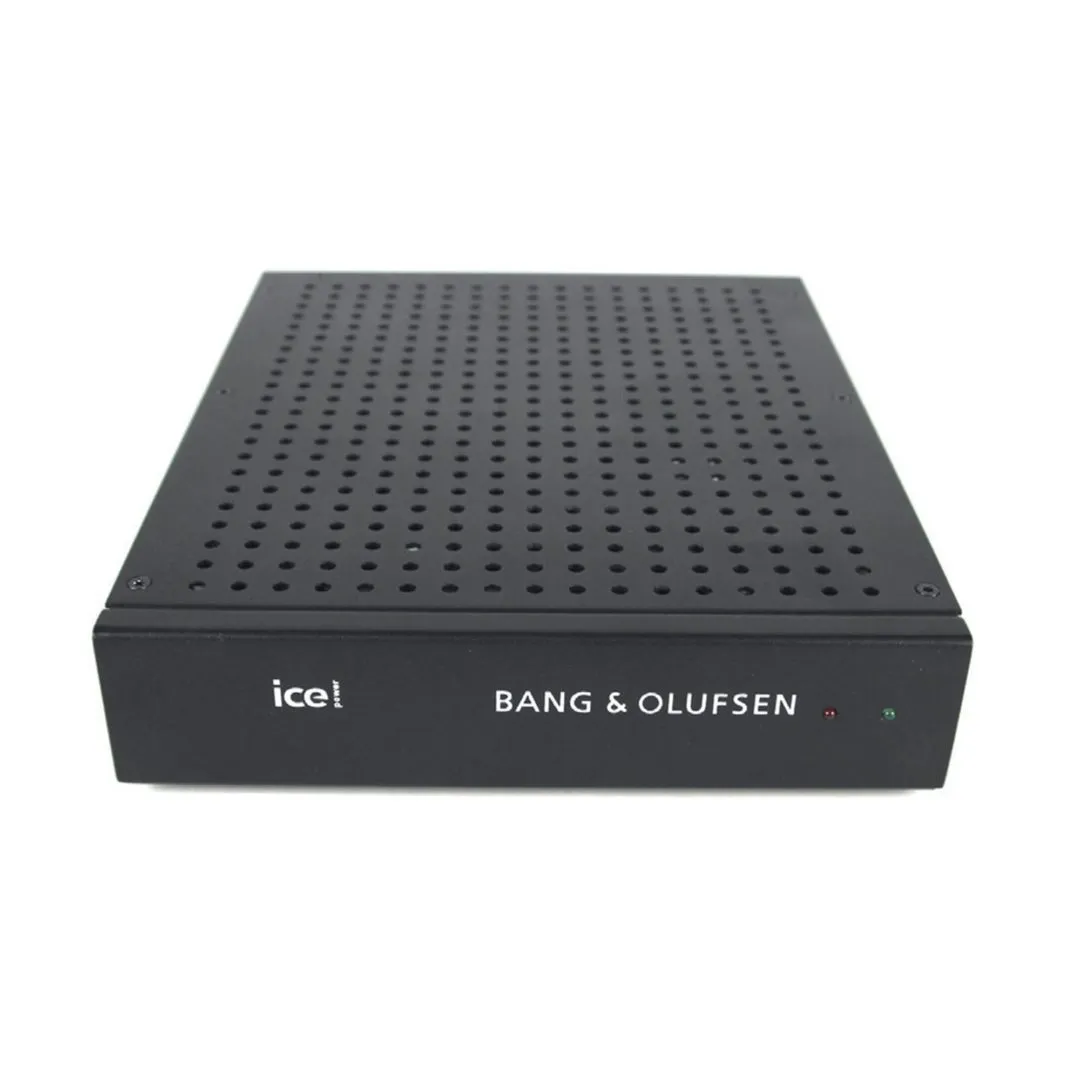

The BeoAmp 2 amplifier is an ultra-compact and powerful
audio power amplifier intended for single zone custom
installation in modern homes, and can also be used in
professional applications. BeoAmp 2 is designed for multiple
placement options and fits a 1 unit space in a 19" rack
installation as well as table and wall mount possibilities.

SPECIFICATIONS / FEATURES
Amplification Placement options Dimensions/Weight
Typical output power
100W per Ch., 8 (1%THD N, f=1kHz), @ 230Vac
Peak power
150W per Ch., @ 8
300W per Ch., @ 4
Shelf (Feet included)
19 inch Rack (Rack ears included)
Cabinet
Height 1.65 inches / 42 mm
Width 7.87 inches / 200 mm
Depth 9.84 inches / 250 mm
Weight 1.9 kg

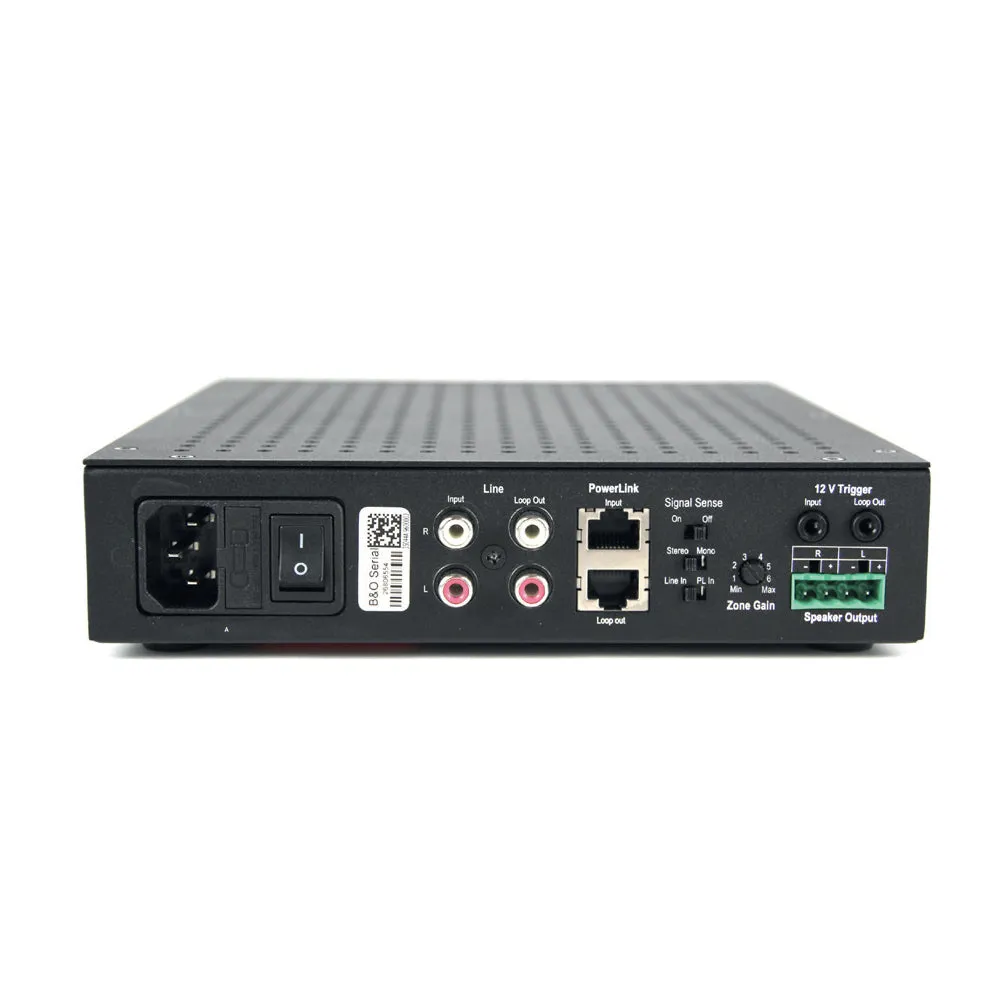

Connections Standby power consumption Power supply
Stereo RCA Line in
Stereo RCA Loop out
RJ45 Power Link input
RJ45 Power Link loop out
Phoenix speaker outputs
Mains connector
Less than 0.5W Universal Mains 85-264 Vac, 45-65 Hz
Power Management Thermal dissipation Colours
Audio input sense, 12V trigger and PowerLink Passive cooling Black cabinet
FEATURES Ultra-compact enclosure (2 pcs BeoAmp 2 fits in a 1U rack)
Extremely low weight - up to seven times lighter than similar products
Up to 2 x 150W channels of audiophile sound quality
Very low power consumption and heat dissipation thanks to efficient ICEpower
Class-D technology
Comprehensive protection keeps the music playing and your quality costs down
Removable rack ears and feet are included in the product packaging
