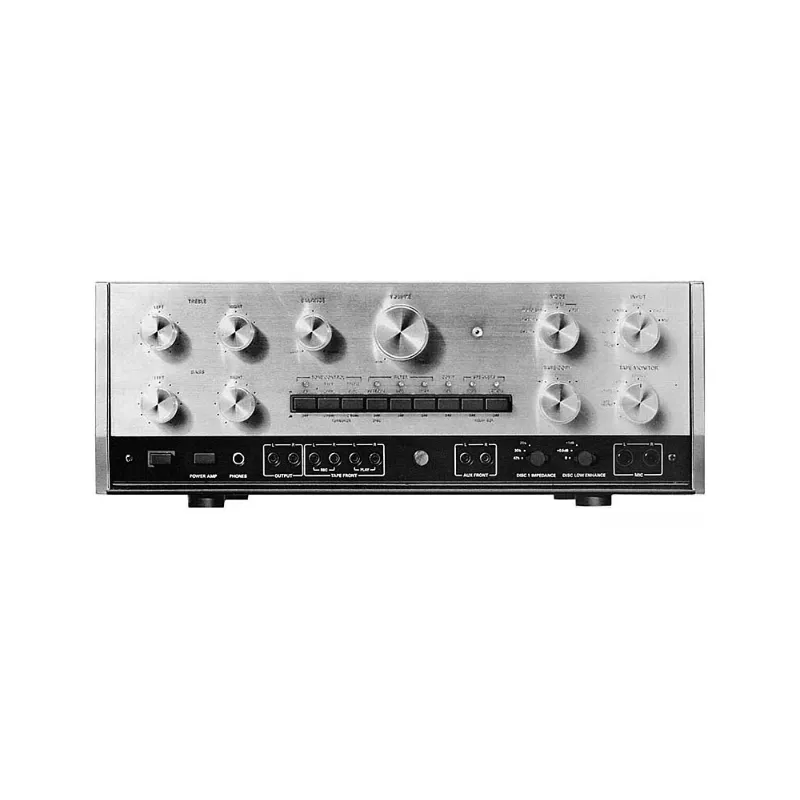

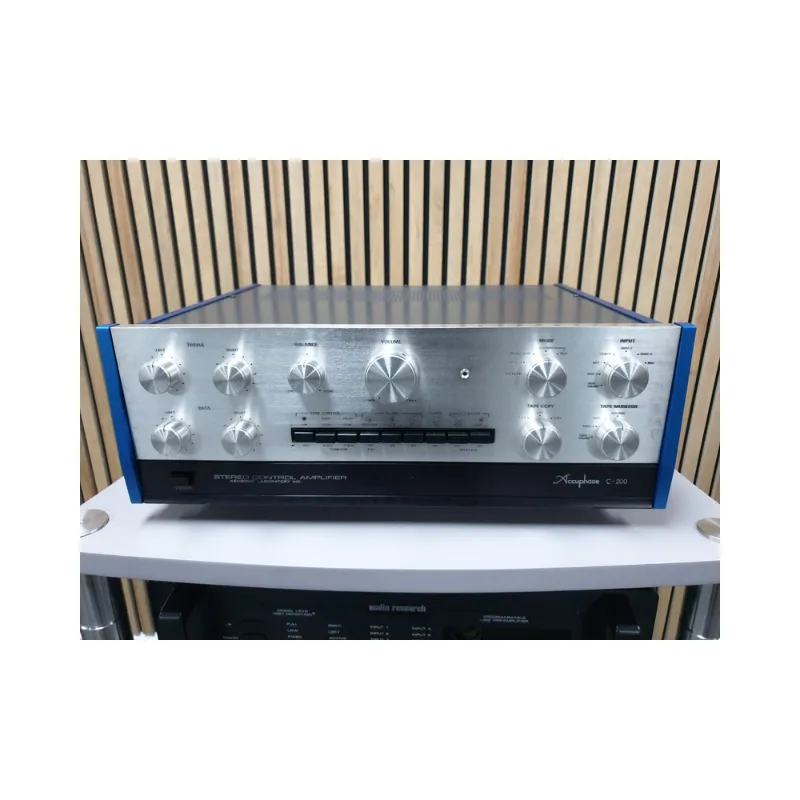

C-200 Stereo Control Amplifier
Enhance your audio experience with the C-200 Stereo Control Amplifier, meticulously designed for audiophiles seeking unparalleled sound fidelity and versatility.
Key Features:
Equalizer Circuit: Employs complementary-symmetry, Class A amplifiers in the last stage, utilizing rugged power transistors and fed by symmetrical dual power supplies. Handles inputs up to 400mV rms at 1 kHz with less than 0.05% distortion.
Disc Low Enhance Switch: Accentuates rich bass tones with 0dB, 0.5dB, and 1dB options against the RIAA characteristic curve at 100 Hz.
Impedance Matching: Features a 3-point impedance switch for Disc 1, compatible with transformer-coupled moving coil type cartridges (47K, 30K, 20K ohms).
Subsonic Filter: Eliminates low-frequency vibrations below 25 Hz for cleaner sound reproduction.
Headphone Amplifier: Includes a dedicated amplifier for high-fidelity private listening.
Stable Power Supply: Delivers regulated DC output voltages, unaffected by AC line voltage fluctuations.
Tone Controls: Bass and treble controls with 10-step selection and two turnover frequencies for precise audio customization.

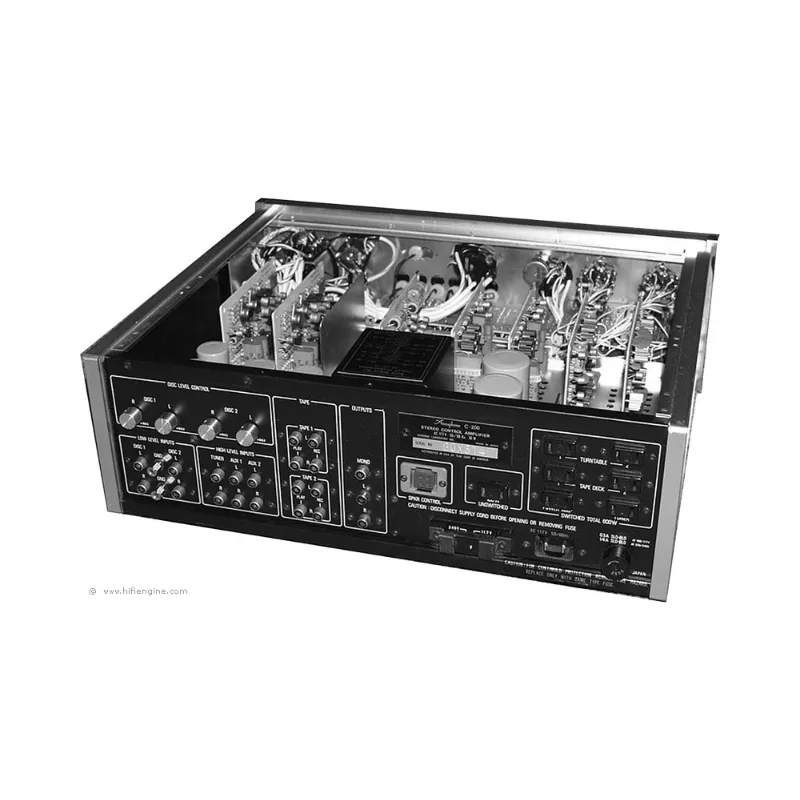

Versatile Connectivity: Offers 10 inputs and 7 output terminals, adaptable to various audio sources and installations.
Tape Recorder Capability: Connects up to three tape recorders simultaneously, with independent tape copying functionality.
Specifications:
- Frequency Response: 20Hz to 20kHz
- Total Harmonic Distortion: 0.05%
- Input Sensitivity: 2mV (MM), 200mV (line)
- Signal to Noise Ratio: 73dB (MM), 90dB (line)
- Output: 10V (Pre out Max)
- Dimensions: 445 x 152 x 355mm
- Weight: 14kg
- Year Released: 1973
