Affordable High-Performance Solutions

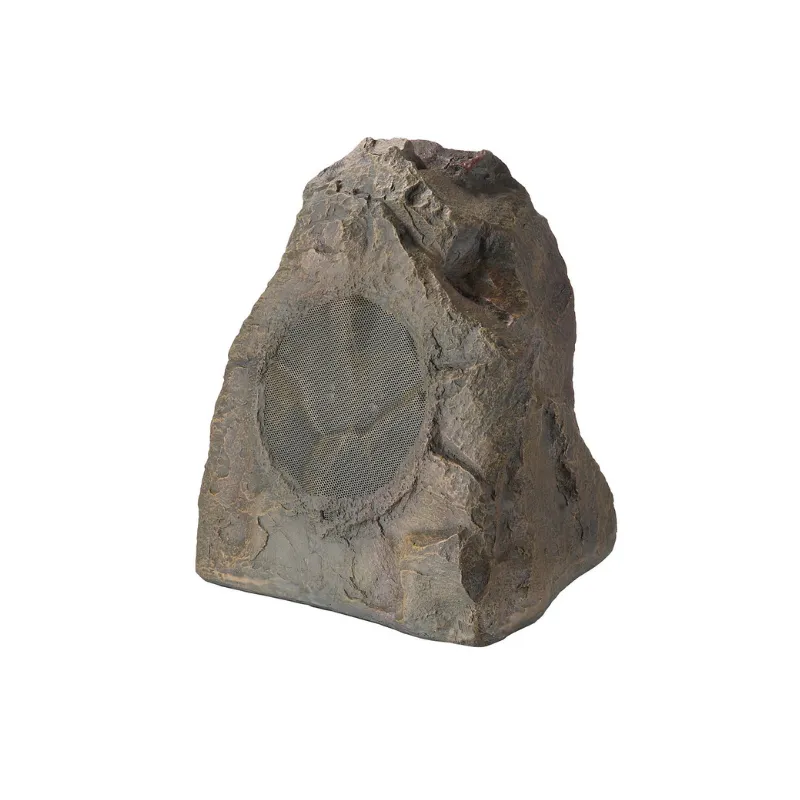

The Installer Series by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.

Specifications

Frequency Response:

• 6620,000 Hz 2dB

Recommended Amplifier Power:

• 2070 watts per channel
• Stereo: 20 watts 20 watts 140 watts 140 watts

Sensitivity:

• 89 dB/2.83 volts/meter

Impedance:

• 8 Ohms per channel/connection. Compatible with 4, 6, or 8 ohm rated amplifiers.

Crossover Frequency:

• 3000 Hz

High Frequency Transducer:

• Two 1" (2.5cm) titanium dome

Low Frequency Transducer:

• 6.5" (16.5cm) mineral-filled polypropylene cone with dual voice coil.

Inputs:

• Two pair pre-installed wires

Weight:

• 12.1 lbs. (5.5 kg)

Dimensions:

• 12.1875" x 11.125" x 10.625" (31cm x 28.2cm x 27cm)
