Folded Motion XTTweeter

MartinLogan's larger, low distortion Folded MotionXTtweeter boasts a radiating surface 40% larger than those found in the award-winning Motion Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless performance.

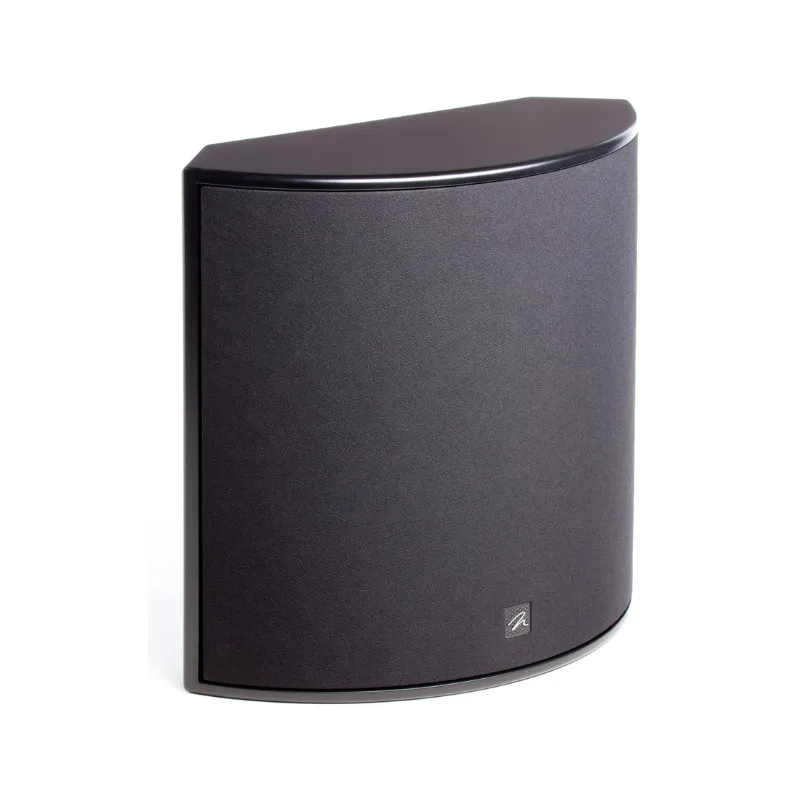

Slender Profile

When mounted on a flat wall, the EM-FX2protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.

Specifications

Frequency Response:
5525,000 Hz 3 dB

Recommended Amplifier Power:
20200 watts per channel

Horizontal Dispersion:
160

Vertical Dispersion:
30

Sensitivity:
93 dB @ 2.83 volts/meter

Impedance:
5 Ohms. Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency:
2,300 Hz

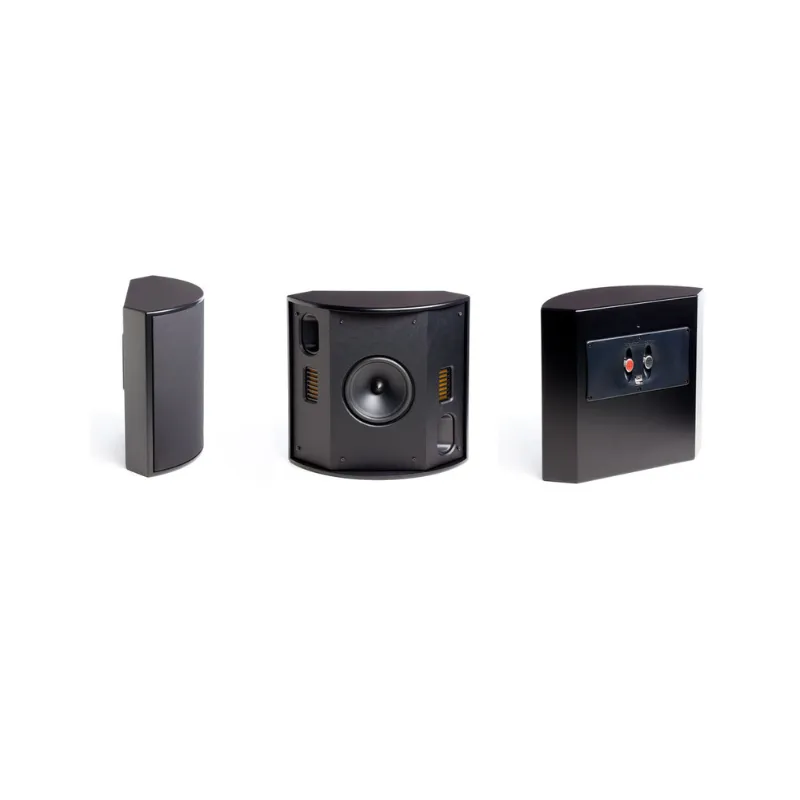

High Frequency Transducer:
Two 1.25" 2.4" (3.2 cm 6.1 cm) Folded Motion XT Transducers with 4.5" 2.75" (11.4 cm 7 cm) diaphragm

Low Frequency Transducer:
6.5" (16.5 cm) paper cone with cast aluminum basket. Ported.

Components:
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.

Inputs:
Push style with banana jacks

Weight:
16 lbs. (7.3 kg)

Dimensions:
14.9" x 14" x 6.8"
(37.9 cm x 35.5 cm x 17.2 cm)
