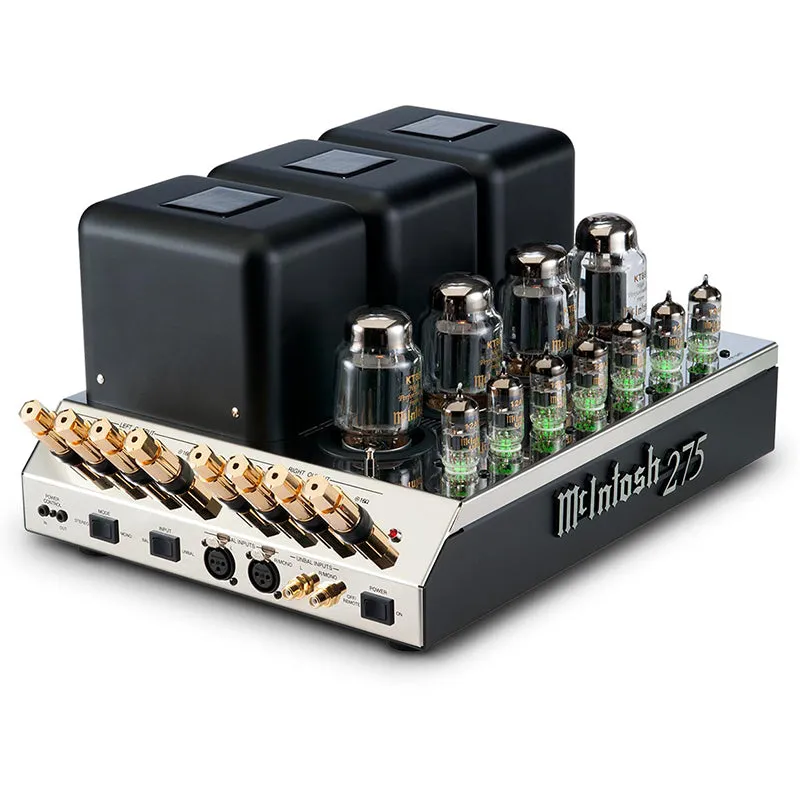

McIntosh patented and gold-plated Solid Cinch speaker binding posts assure the best connection to all speaker cables, while high quality balanced and unbalanced input connectors enhance signal transfer from the connected preamplifier.
The seven small tubes are LED illuminated to indicate the amplifiers functional status: upon power up, they sequentially glow amber for a few seconds and then all turn green to signify system readiness. In the rare case of an output tube failure, the small tubes in front of it will turn red to notify you of the problem. Power Control is used to remotely control tube illumination from a McIntosh.
SPECIFICATIONS
ELECTRONIC SPECIFICATIONS
Power Output per Channel 75W @ 4, 8 or 16 Ohms
Number of Channels 2
Total Harmonic Distortion 0.5%
S/N below rated output 105dB
Dynamic Headroom 1.2dB
Damping Factor >22
Rated Power Band 20Hz to 20kHz
Frequency Response
- 0, -0.5dB from 20Hz to 20,000Hz
- 0, -3.0dB from 10Hz to 100,000Hz
CONTROL
Remote Power Control Yes, input and output
Multi-Channel DB25 Cable N/A
GENERAL SPECIFICATIONS
Circuit Configuration Unity Coupled
Circuit Design Vacuum Tube
Mono Bridge No
Mono Parallel Yes, 150W @ 2, 4 or 8 Ohms
Output Type Unity Coupled Output Transformer
Meters No
Meter Light Switch Small signal tubes LEDs controlled by McIntosh preamp
Balanced Input Yes
Front Panel N/A
Illumination Small Signal Tubes, LED
Chassis Style Polished Stainless Steel
CONNECTIVITY
Speaker Binding Post Type Patented Solid Cinch Speaker Binding Posts
WEIGHTS & DIMENSIONS
Dimensions W x H x D 21-1/2" 54.6cm including cables x 8-1/2" 21.6cm including feet x 12" 30.5cm
Weight 67 lbs 30.5 kg
Shipping Weight 75 lbs 34.1 kg
