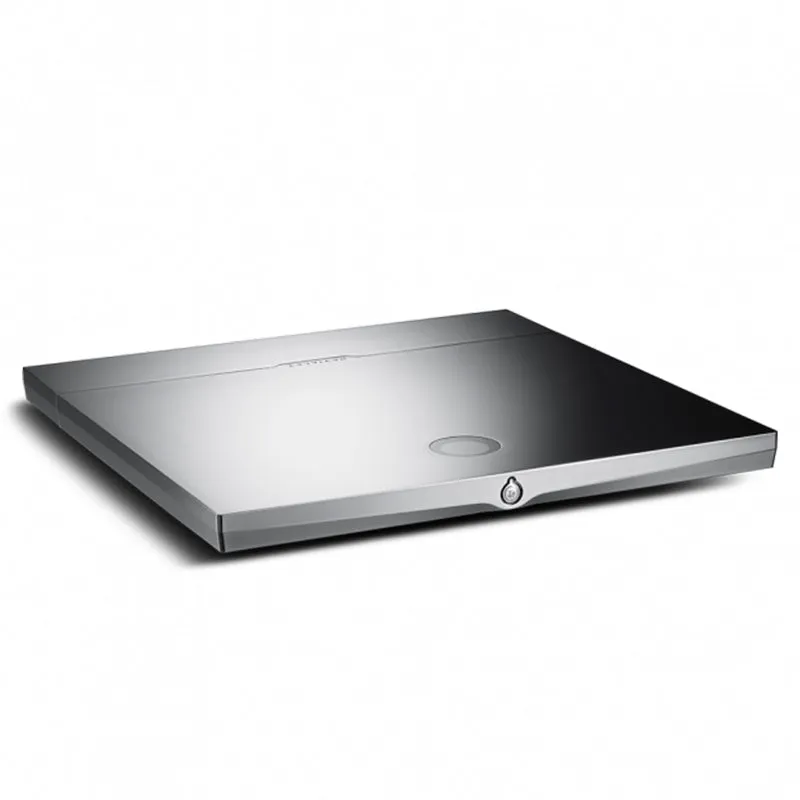

Product Details
＋
SPECIFICATIONS
| Range | Stereo |
| Exclusive technologies | ADH, SAM, RAM, AIR, EVO, DAC Magic Wire |
| Streaming Services | UPnP Airplay Spotify Connect |
| Daisy Chaining | Up to 8 units |
| Phono stage | Standard (MM / MC) |
| Pre-amplified output | Optional (on order) |
| Casing | Carved out from a single aluminium block |
| Side plating | No |
| Dimension | Width: 383mm | Depth: 383mm | Height: 40mm |
| Weight | 5.9Kg |
PERFORMANCE
| Power | 2x220 Watts RMS under 6 |
| Distortion at Full Power | 0.0005% THD N |
| Distortion at full Power | 0,00025% (10W / 6) |
| Distortion at 10w | 0.00025% THD N |
| Distortion at 10w | 0,0005% THD N |
| Signal-to-noise Ratio | 130dB |
| Output Impedance | 0.001 |
| Damping Factor | 8000 |
| Bandwidth | DC-30kHz @ -0.1dB DC-95kHz @ -3dB |
| Phase rotation | 0.4 at 20kHz 1.8 at 40kHz |
| Thermal Distortion | Below measurement threshold |
CONNECTIVITY
| WI-FI | 2.4GHz / 5GHz 802.11ac, compatible with 802.11a/b/g/n |
| Ethernet | RJ45 100/1000 Mbps |
| USB | USB Audio 2.0 Asynchronous Very low latency Bi-directionality (for digitisation of the analog sources) |
| Digital Coaxial Inputs | Up to 4x RCA 75 |
| Digital Optical Inputs | 1x TOSLINK Up to 1x miniTOSLINK 3.5mm |
| Supported Formats | Up to 32bits / 192kHz PCM (USB) Up to 24bits / 192kHz PCM (AIR, UPnP, AES/EBU, Coaxial) Up to 24bits / 96kHz PCM (Optical) Up to 1bit / 3.072000MHz DSD64 (USB, Coaxial) |
| Analog Inputs | Up to 2x RCA stereo Sensitivity adjustable via the Configurator Advanced phono stage (MM / MC) |
| Speaker output | 4mm banana plugs, fork connectors or stripped cables Compatible with all speakers from 8 to 2 Short-circuit protection Active filtering available |
| Home automation | Up to 1x RS232 3.5mm 115200 bauds (documentation available via the Configurator) |
| Trigger | 3.5mm trigger connector Trig In and Trig Out |
