Optimize for your room
Discover an uncompromising home theater AV receiver
Enhance performance with room correction options from Audyssey (installed) or Dirac Live Room Correction and Dirac Live Bass Control (optional).
Powerful 11-Channel Amplifier
Featuring a sophisticated power amplifier design, the AVR-X6800H delivers high-power performance at 140 watts per channel (8 Ohms, 20 Hz20 kHz, THD: 0.05%, 2 ch. driven) to ensure a dynamic and precise entertainment experience.
3D Audio Experience
Get enveloped in sound with Dolby Atmos, DTS:X, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X, and Auro-Matic upmixer to optimize legacy content.
Configuration Flexibility

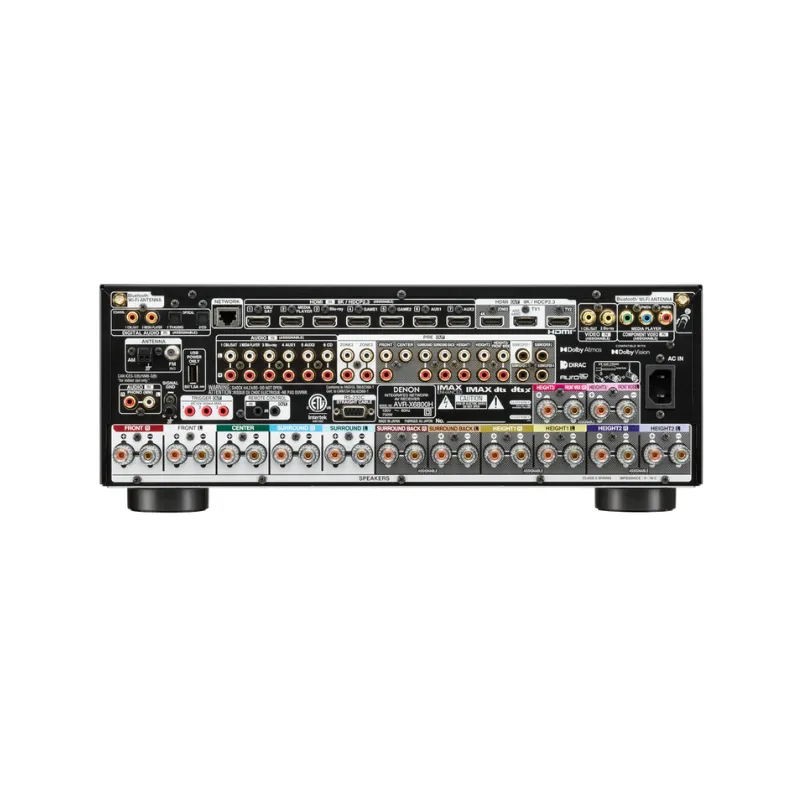

AVR-X6800H offers many setup options and flexibility to adjust your home theater to meet your needs. Supports 13.4 channel processing capability, [Pre-Elevated shot of the back] Amplifier mode, and optional Dirac Live upgradability (with fee).
Advanced 8K Home Theater
8K video is supported on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10 , and Dynamic HDR pass-through, there's no need to worry about video compatibility or picture quality.
HEOS Built-IN Technology
Stream music wirelessly from a variety of free and premium streaming services. Share content to HEOS devices, like Denon Home speakers, in other rooms.
Specifications Sheet
Sound Enhancements:
- Multichannel Surround: DTS HD Master / DTS:X / DTS:X Pro (Yes / Yes / Yes)
- DTS Sound: DTS Neo:6 / DTS Neural:X (No / Yes)
- DTS Virtual:X: Yes
- IMAX Enhanced: Yes
- Dolby Sound: Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music (Yes / Yes / Yes / Yes)
- Dolby Surround: Dolby ProLogic II / Dolby Surround (No / Yes)
- Auro 3D: Yes
- 360 Reality Audio / MPEG H: Yes / Yes
- Multichannel Stereo: Yes
- Max. number of processing (preamp) channels: 13.4
Sound Enhancements:
- Mono Block Power Amp Construction: Yes
- Discrete Power Amplifier: Yes
- D.D.S.C. HD Digital: Yes (32 bit)
- Pure Direct: Yes
- Gold Plated RCA Terminals: Yes
- Clock Jitter Reducer: Yes
- Alpha Processing: AL32 Processing Multichannel
- Audyssey: MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
- Audyssey LFC: Yes
- Dirac Live upgradability: Yes
- Compressed Audio Restorer: Yes
Network:
- Media Server: Yes
- HEOS Wireless Multi-Room Technology: Yes
- Bluetooth Re-transmit for Bluetooth headphones: Yes (With volume control)
- Voice Assistants: Alexa / Google / Apple HomePod (Yes / Yes / Yes)
- Lossy Formats: MP3 / WMA / AAC (Yes / Yes / Yes)
- Lossless Formats: FLAC / ALAC / WAV (Yes / Yes / Yes)
HDMI:
- HDMI Inputs: 7 (Back)
- HDCP2.3 support: Yes
- HDMI Outputs: 2 (Main), 1 (Zone)
- Video Conversion Analog -> HDMI: Yes
- HDMI to HDMI Scaling: 1080P/4K to 8K
- HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB (Yes / Yes)
- 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out: 7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue (Yes / Yes / Yes / Yes / No)
- HDR / HLG / Dolby Vision / HDR10 / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
- ALLM (Auto Low Latency Mode) Pass-Through for Gaming: Yes
- Variable Refresh Rate / Quick Flame Transport / Quick Media Switching: Yes / Yes / No
- 3D Signal Pass-Through: Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay: Yes / Yes / Yes
- 4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
- HDMI Pass-Though in Standby Mode: Yes
- CEC: Yes
- DSD Audio capability: Yes
- Audio Return Channel: ARC, eARC
- Auto LipSync: Yes
Multi-room / CI:
- Multi-Room Zones: 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog (Yes (2ch) / Yes (2ch) / Yes / Yes)
- Zone Audio Output: Speaker / Pre-Out (Yes / Yes)
- Zone HDMI output from HDMI source: Yes
- IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
- Remote In / Out: Yes / Yes
- DC Trigger output: 3
- HDMI Diagnostics: Yes
Others:
- Number of Power Amps: 11
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 140 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 175 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 250 W
- Auto speaker setup by microphone: Audyssey MultEQ XT32 Dirac Live (upgrade)
- Front Display: 2 Line FLD
- Graphic User Interface - GUI: Modern HD GUI
- GUI Languages: 3
- Setup Assistant: Yes
- Quick Select Plus, Quick Select: Yes / No
- Firmware Update by Network / USB: Yes / Yes
- Variable crossover: Yes
- Optimized Bass Redirection: Yes
- Bass Sync: Yes
- ECO Mode: Yes
- Auto Power Off: Yes
- Sleep Timer: Yes
