Classic Dynaudio heritage with a twist

Each speakers single 14cm long-throw mid/bass driver is made from MSP (Magnesium Silicate Polymer), just like all Dynaudio speakers have used for decades. They use updated surrounds to extend their throw, their frequency response and their low-frequency dynamics all while maintaining stellar midrange performance.

Want to know the woofers secrets? The diaphragm is 0.4mm thin, which provides exactly the right combination of lightness, stiffness and damping to ensure optimum performance. Its made of one piece (the dust-cap is part of the playing surface), and is bonded directly to the rigid glass-fibre voice-coil former directly under the Balance Ribs youll see around the centre dome. That means the whole unit moves as one, in a predictable (and carefully tuned) way, for a performance that strikes the ideal balance between bass and midrange.

The 38mm voice-coil itself is made from aluminium, making it extremely light. That means we can use more windings. More windings gives us more control over the cones movement, which means more control over the sound even at high volumes and high frequencies. Its kept stable, centred and true by the aramid fibre spider (the circular spring assembly that stops the cone moving when it shouldnt, and lets it move when it should).

And the whole assembly is driven by one of our powerful strontium carbonate Ferrite ceramic magnet systems.

Cerotar: an improved tweeter

Up top is the 28mm Cerotar soft-dome tweeter. Our engineers looked behind the curtain of the award-winning Special Forty and money-no-object Confidence tweeters and cherry-picked some key technologies to bring to Evoke.

The headline-grabbing component is the Hexis an ingenious inner dome that refines the airflow behind the playing surface to smooth-out its frequency response and eliminate unwanted resonances.

The Cerotar, like the woofer, is powered by a powerful Ferrite ceramic magnet assembly.

Linking the drivers together is a high-grade second-order crossover that uses the Confidences design with different components. So, yes, when we say youre getting high-end tech, we mean it.

Honest Danish design

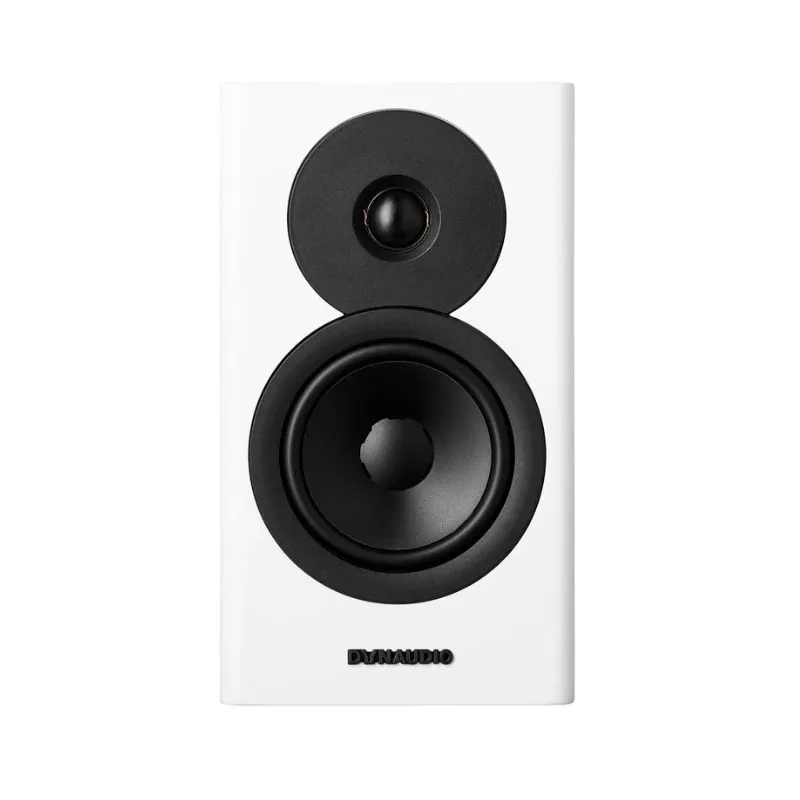

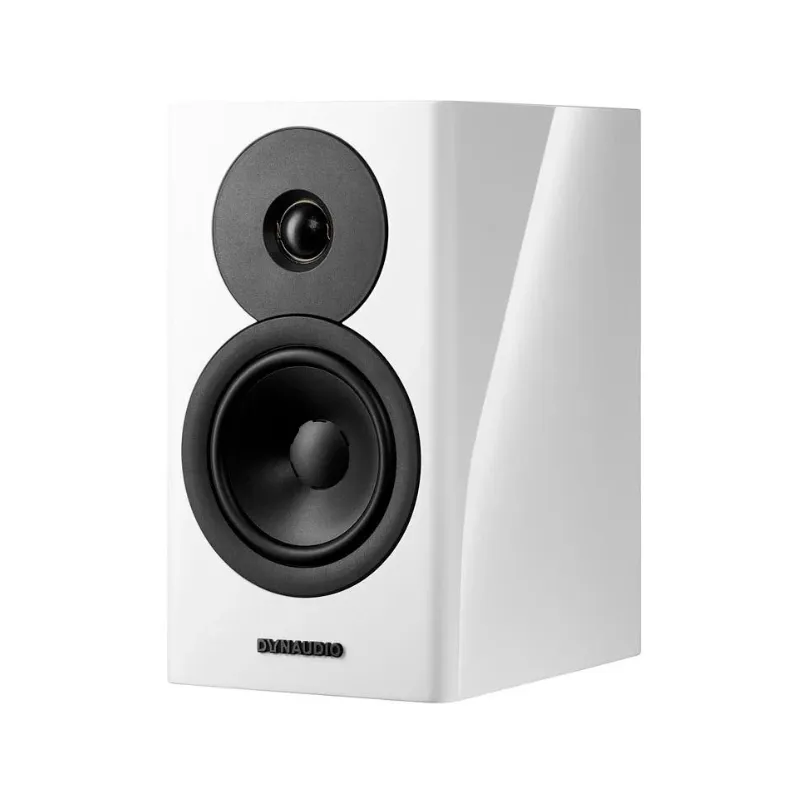

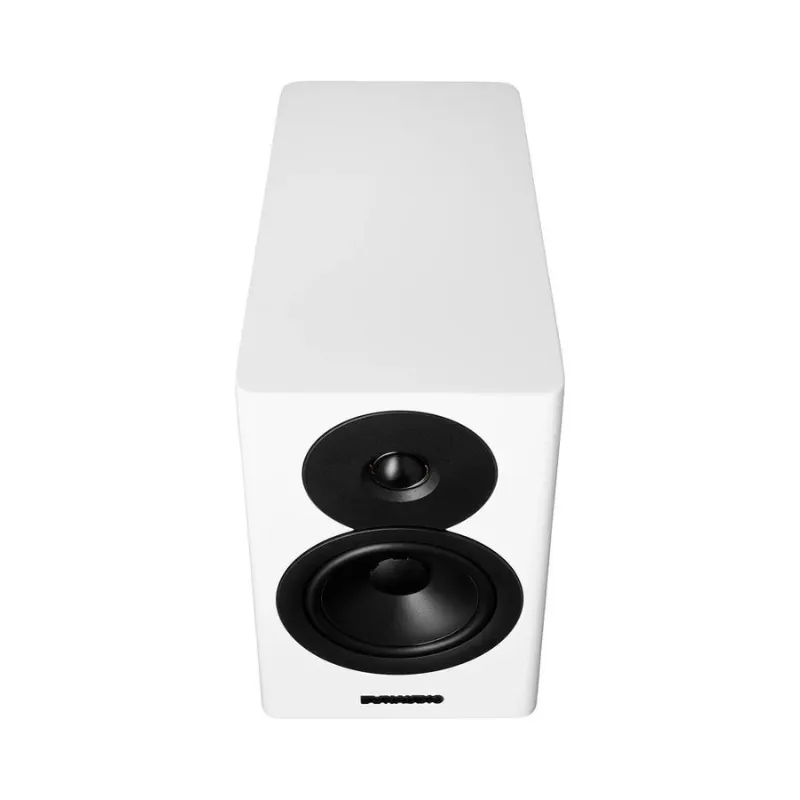

Evoke 10 is available in four beautiful finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood. The shiny versions really are just that: improved lacquering techniques have resulted in a sumptuous, almost glass-like finish. The wood versions use a tactile, open natural veneer for either a warm, dark tone or a light apricot look.

You might notice that you cant see any mounting screws. Evoke has simple, clean trim rings that emphasise the cabinets finish as well as the moving parts of the drivers. The rings are one-piece moulded, with the surface finish embedded in the moulding process so what we make is what you get.

Clean, beautiful and honest. How very Danish.

It means you can take them with you when you move and, we trust, enjoy them for a lifetime.

Specifications

Status:

• Current

Segment:

• Home

Series:

• Evoke

Type:

• Bookshelf

Specifications:

• Sensitivity (dB @ 2.83V/1m): 84 dB
• IEC Power Handling: 160W
• Rated Impedance: 6
• Frequency Response:
  • Lower Cutoff: 47Hz (@ 3 dB)
  • Upper Cutoff: 23kHz (@ 3 dB)

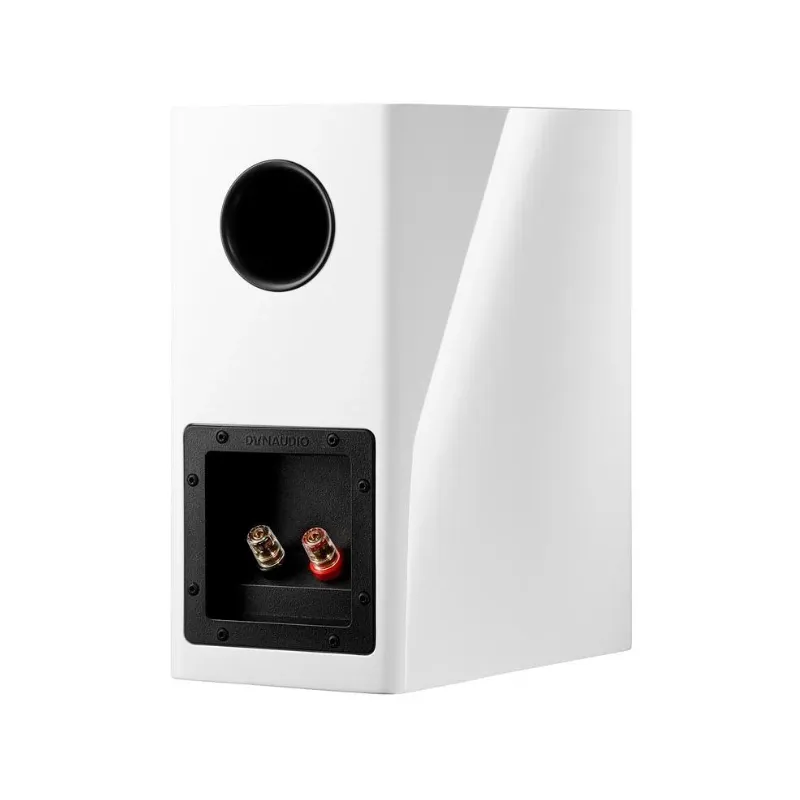

• Box Principle: Bass reflex rear ported
• Crossover:
  • Type: 2-way
  • Frequency: 1400Hz
  • Topology: 2nd order
• Drivers:
  • Tweeter: 28mm Cerotar soft dome with Hexis
  • Midrange/Woofer: 14cm MSP
• Dimensions & Weight:
  • Weight: 6.7 kg (14.8 lbs)
  • Width: 180mm (7 1/8 inches)
  • Height: 315mm (12 3/8 inches)
  • Depth: 266mm (10 4/8 inches)
• Dimensions (Including Feet/Grill):
  • Width: 180mm (7 1/8 inches)
  • Height: 315mm (12 3/8 inches)
  • Depth: 277mm (10 7/8 inches)
• Packaged Dimensions:
  • Width: 554mm
  • Height: 463mm
  • Depth: 396mm
  • Packaged Weight: 16.8 kg
• Speakers per Packaged Box: 2
• Grille: Black
