Affordable High-Performance Solutions

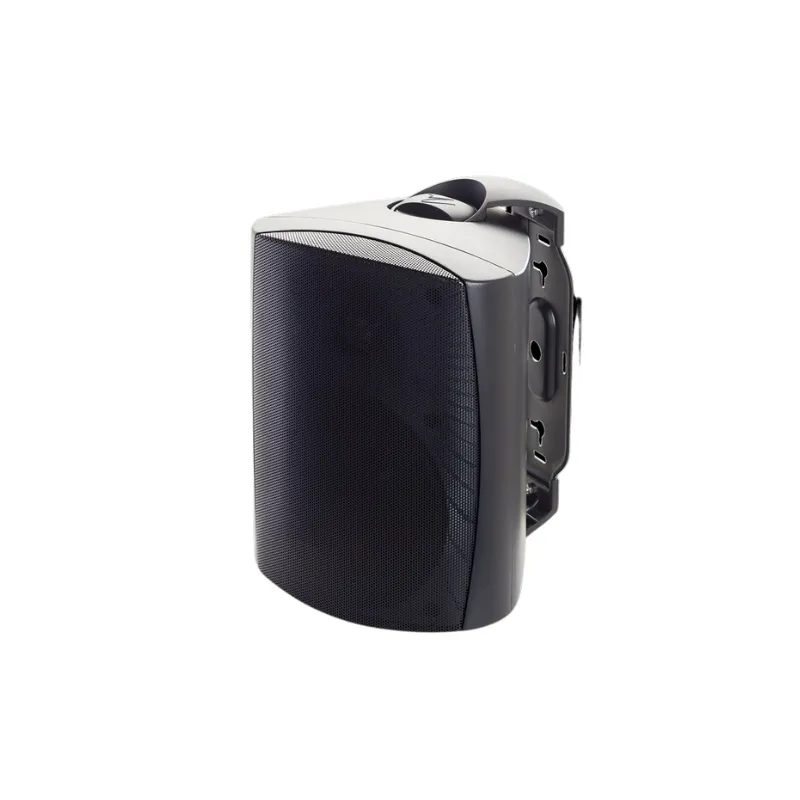

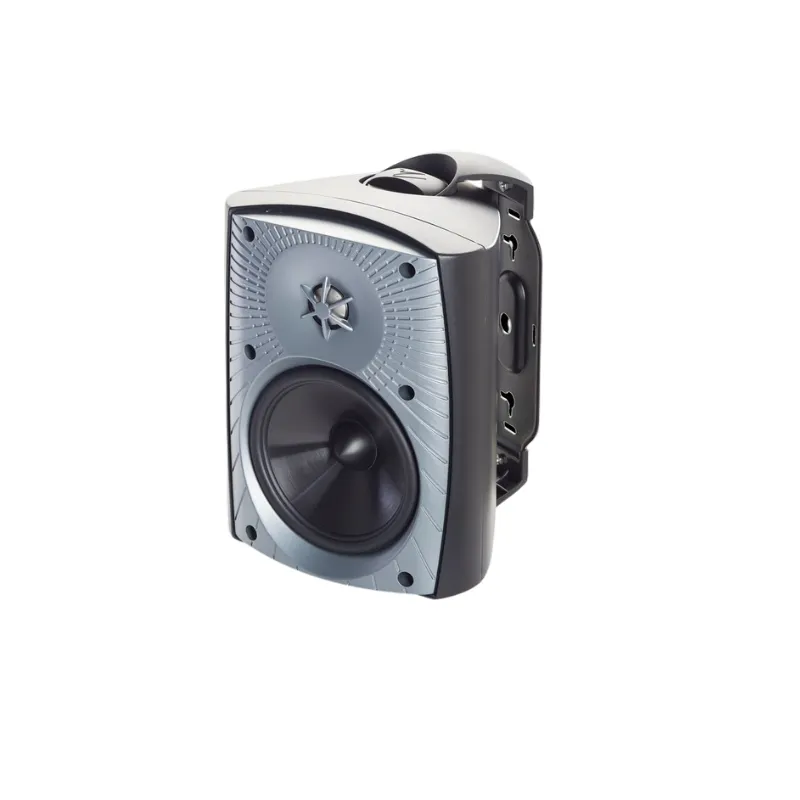

The Installer Series by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.

Specifications

Frequency Response:
8520,000 Hz 2dB

Aiming:
Swivels on U-Bracket

Recommended Amplifier Power:
20120 watts per channel

Sensitivity:
90 dB

Impedance:
8 Ohms. Compatible with 4, 6, or 8 ohm rated amplifiers.

Crossover Frequency:
2300 Hz

High Frequency Transducer:
1" (2.5cm) titanium dome

Low Frequency Transducer:
5.5 (14cm) mineral-filled polypropylene cone

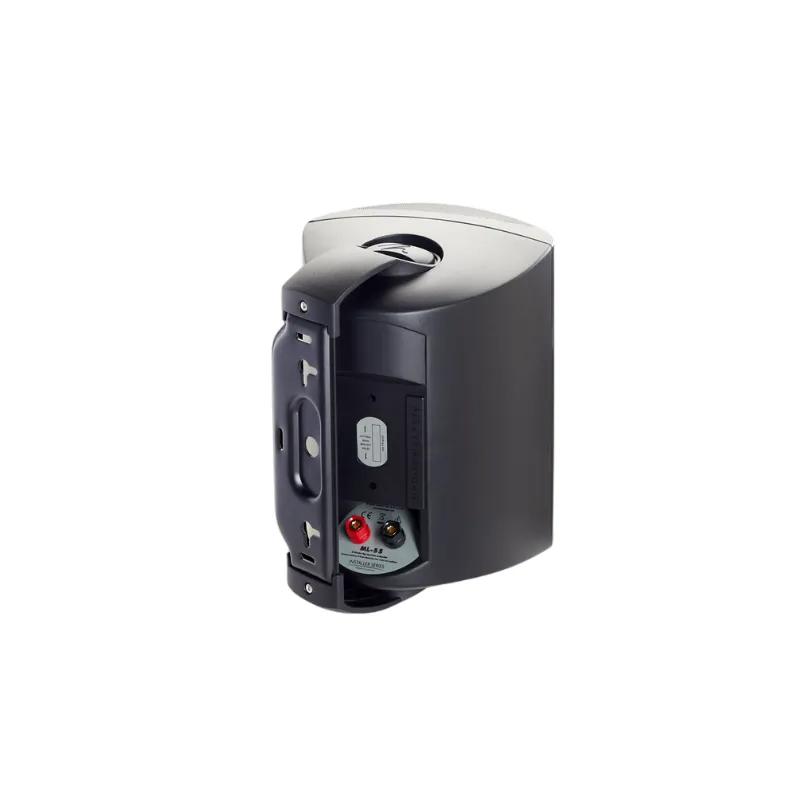

Inputs:
5-way binding posts accommodate wire up to 5AWG

Weight:
6.75 lbs. (3.05 kg)

Dimensions:
9.69" x 7" x 7.63 "
(24.6cm x 17.8cm x 19.4cm)
