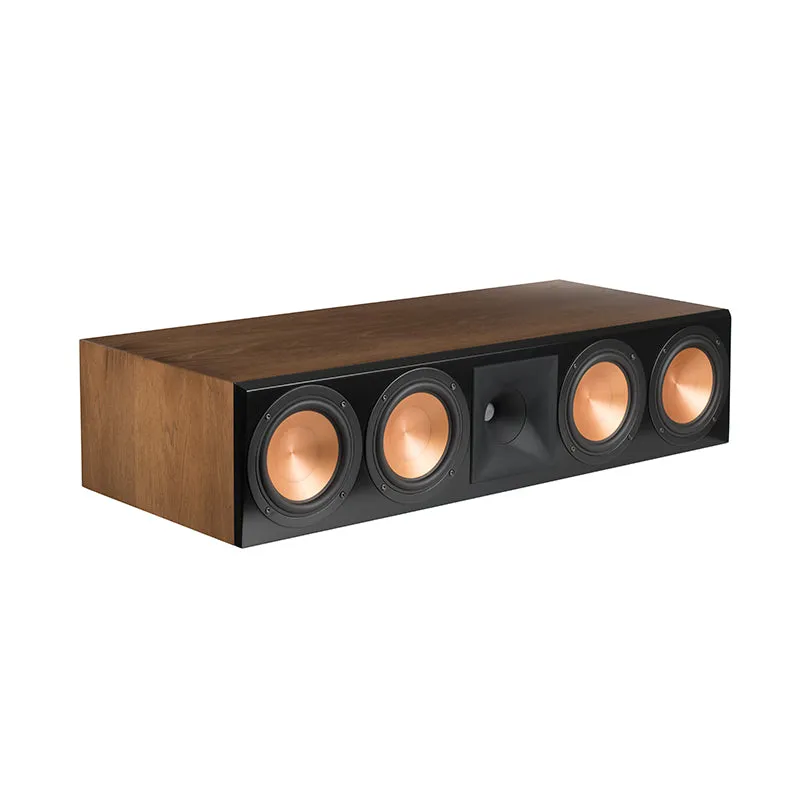

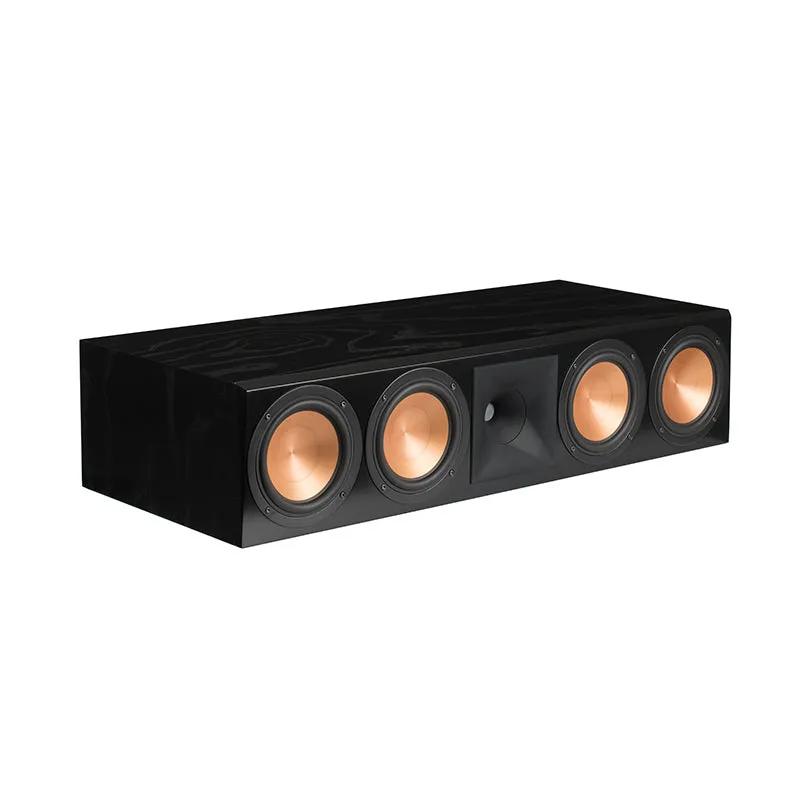

Features:
- All-New 1 3/4" Titanium Compression Driver
- 90x90 Compressed Molded-Rubber Tractrix Horn
- 2 1/2 Way Network Crossover Design
- Quad 6.5" Cast Basket Cerametallic Woofers
- Premium, Furniture-Grade Wood Veneers
- Assembled in Hope, AR
90 x 90 TRACTRIX HORN
The redesigned Tractrix horn utilizes a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension while enhancing imaging and dynamics. The compressed molded rubber construction adds high-frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.
NEW 1 3/4 TITANIUM DIAPHRAGM COMPRESSION DRIVER
The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.
SPUN COPPER CERAMETALLIC WOOFERS
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.
CAST FRAME WOOFER DESIGN
Each 6.5 woofer feature a heavy-duty cast aluminum frame for resonant-free operation.
2 1/2 WAY NETWORK CROSSOVER DESIGN
The sophisticated design of the RC-64 III network attenuates the outer woofers' output at higher frequencies to minimize horizontal interference off-axis to the loudspeaker. This maintains a wide and even sound distribution ensuring each listener hears the center channel information exactly as intended.
FURNITURE GRADE WOOD VENEERS
RC-64 III enclosures all utilize furniture grade wood veneers and are available in Black Ash, Cherry & Walnut.
SPECIFICATIONS
| Frequency Response 3dB | 57 Hz to 24 kHz |
| Power Handling | RMS: 200 W Peak: 800 W |
| Sensitivity | At 3.3' / 1 m (2.83 V): 99 dB |
| Nominal Impedance | 8-Ohm Compatible |
| High-Frequency Horn | 6.25" / 15.9 cm Square 90 x 90 Tractrix Horn |
| High-Frequency Driver | 1.75" / 4.45 cm Titanium Diaphragm Compression Driver |
| Crossover Frequencies | 1000 and 1400 Hz |
| Low-Frequency Drivers | 4 x 6.5" / 16.5 cm Cerametallic Cone Woofers |
| Inputs | Dual Binding Posts, Bi-Wire, Bi-Amp |
| Enclosure Type | Sealed |
| Dimensions | 8.0 x 35.8 x 15.0" / 20.3 x 91.0 x 38.1 cm |
| Weight | 55 lb / 25 kg |
