Features:
The e-TP60E is sophisticated, luxuriously made power distributor that eliminates many common problems found with audio and video components caused by massively contaminated electrical power.
The AC waveform becomes severely distorted by ground noise, voltage spikes, and sags, high-frequency power supply noise from other components in your own system, plus radiated high-frequency digital noise from processors and digital interconnects.
There are also distortion products at the top and bottom of the AC waveform created by switch-mode power supplies in electronic devices on the same circuit.
Additionally, youre never alone; your residential AC mains supply is shared with other apartments, homes, and businesses on the same utility transformer. Thats why many audio and video enthusiasts notice their systems are more enjoyable late at night or on weekends!
How can you tell youre a victim of polluted AC power? Listen and look for these symptoms: Flat, hard, grainy high frequencies, a thick and bloated midrange, fat, uncontrolled bass, and loss of air and soundstage stability. On video displays, the picture resolution is less than sharp, with ghosting, color shift, snow, or vertical and horizontal lines. If this looks and sounds familiar, you need Furutech!

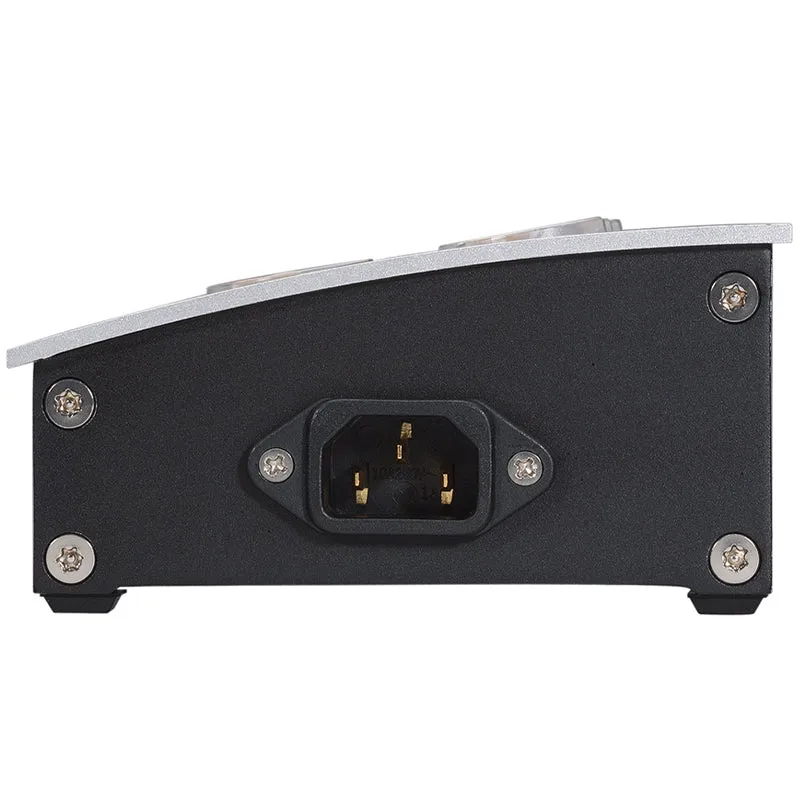

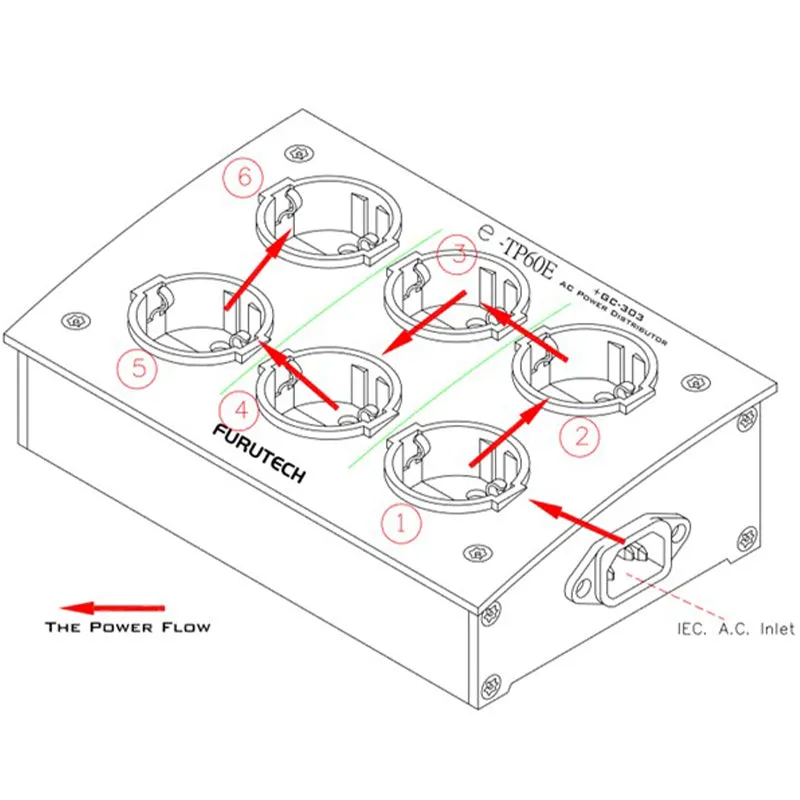

The beautifully crafted special grade aluminum chassis effectively shields against another common problem, RFI (Radio Frequency Interference), and a layer of Formula GC-303 blocks EMI (Electro-Magnetic Interference). Internal wiring is Furutech -14 wire (14 AWG) that guarantees low resistance. Furutech Hyper Quality Audio Grade Receptacles are wired to the IEC AC input of the e-TP60 / e-TP60E. Receptacles feature 24K gold-plated phosphor bronze, non-magnetic conductors for stable, long-lasting, optimized power transfer.
SPECIFICATIONS
Body Material: Aluminium Alloy Plate (Painted)

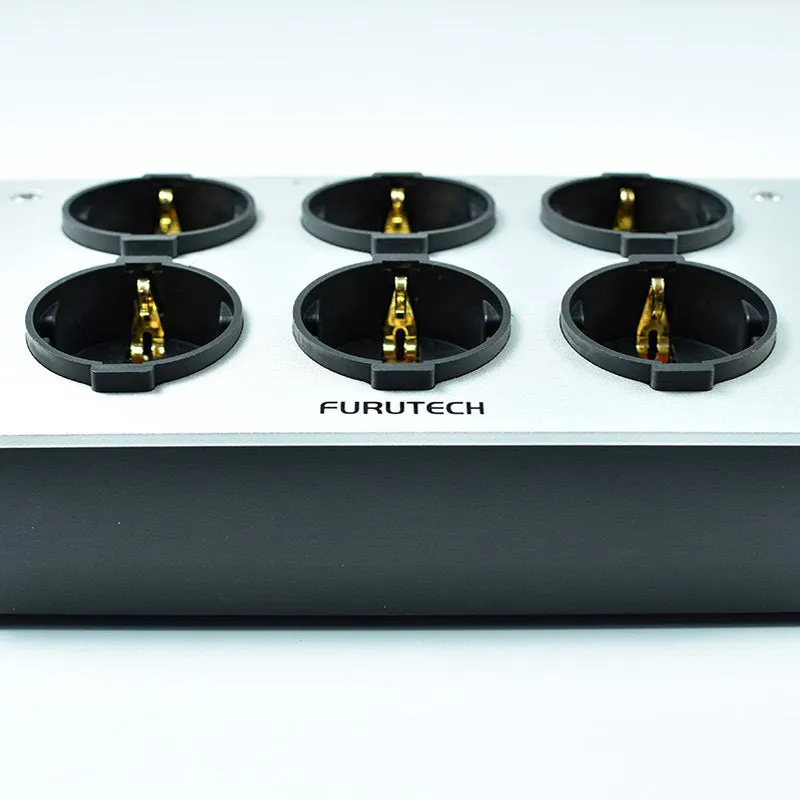

Outputs (e-TP60E): 6 non-filtered hyper-quality SCHUKO receptacles featuring 24K gold-plated Eutectic brass, non-magnetic conductors
A layer of Formula GC-303* bonded to the bottom plate effectively shields against EMI (Electro-Magnetic Interference)

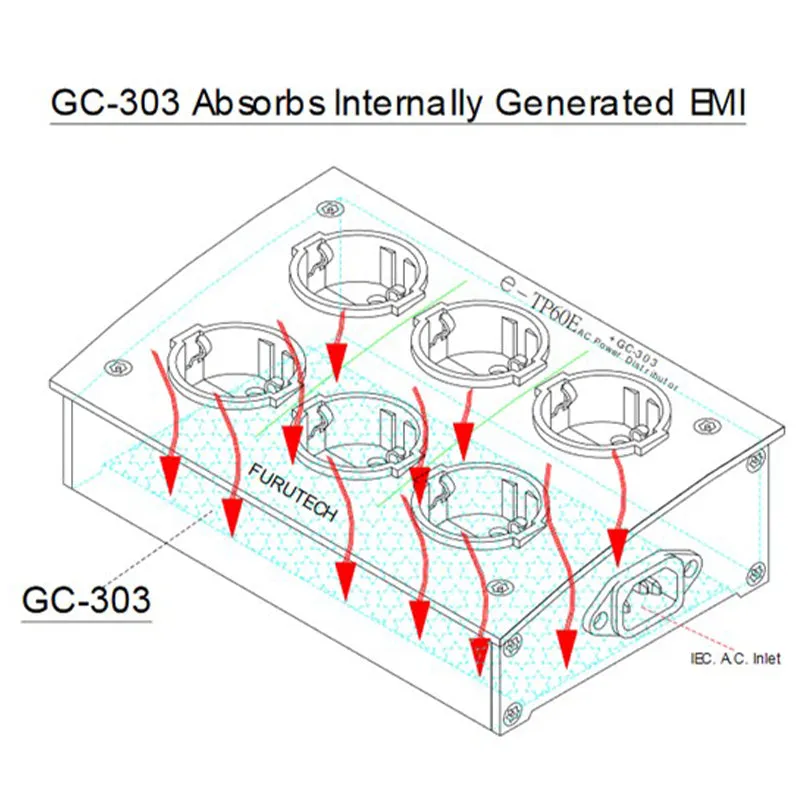

*Formula GC-303 is a special material that Furutech layers and bonds to the interior bottom-plate of the chassis. It actually absorbs EMI (Electromagnetic Interference) generated by the internal fittings of the unit. GC-303 absorbent filtering ensures that AC resistance is kept to a minimum, allowing a more resolving, powerful, dynamic, and colourful performance from your components
Rating:
Voltage: AC 250V 50/60Hz
Current: 10A
Loading: 2500 W
Grounding: SCHUKO (or US) socket 6 Holes
Overload Protective Type: Automatic circuit breaker
Insulation Voltage: AC 1500V 1 MIN 5mA
Leakage Current: Under 1.0mA
Insulation Resistance: 300M Above DC 500V
All metal parts are treated with Furutechs Two-Step Cryogenic and Demagnetizing Alpha Process
Dimensions: Size: 200mm (W) x 130mm (D) x 60 mm (H)
Weight: 0.94Kg
