Affordable High-Performance Solutions

The Installer Series by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.

Specifications

Frequency Response:
8020,000 Hz 2dB

Aiming:
Swivels on U-Bracket

Recommended Amplifier Power:
20140 watts per channel

Sensitivity:
91 dB

Impedance:
8 Ohms. Compatible with 4, 6, or 8 ohm rated amplifiers.

Crossover Frequency:
2300 Hz

High Frequency Transducer:
1" (2.5cm) titanium dome

Low Frequency Transducer:
6.5 (16.5cm) mineral-filled polypropylene cone

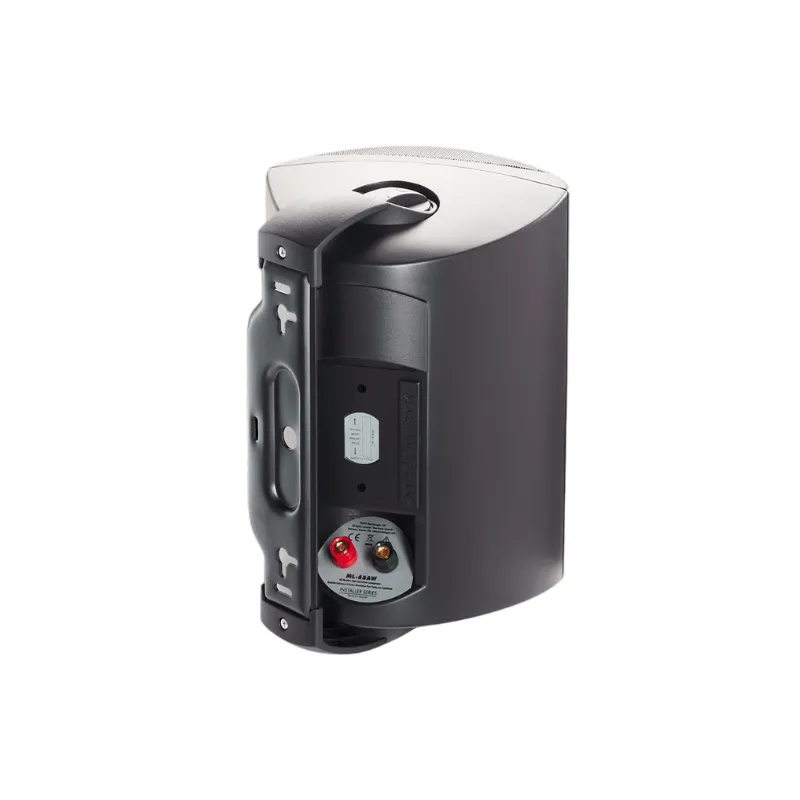

Inputs:
5-way binding posts accommodate wire up to 5AWG

Weight:
8.8 lbs. (4 kg)

Dimensions:
11" x 7.5" x 7.94 "
(28cm x 19cm x 20.2cm)
