Bright, cost-effective display solutions

Providing higher quality image, more engaging and impactful displays even in brightly-lit environments, the EB-L775U offers impressive 7,000-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L775U is capable to display from 50 to 500-inches, without any reduction in clarity or stunning detail.

Superior connectivity

This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L775U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.

Effortless and flexible installation

360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features. Also available in white.

Peace of mind and long-lasting durability

Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).

Key Features

• 7,000-lumen brightness Sharp images and vivid colours, even in well-lit rooms
• 4KE resolution Sharp 4KE images for excellent clarity
• BYOD connectivity with optional wireless or wired and HDBaseT
• Effortless, flexible installation Lightweight and compact design with wide lens shift
• Large image Scalable display size of up to 500 inches

Specifications

• White Brightness: 7,000 Lumens (ISO)
• Color Brightness: 7,000 Lumens (CLO)

Resolution:

• Native: 1920x1200
• Enhanced: 4K with pixel shifting

Aspect Ratio:

• 16:10 (WUXGA)

Display Type:

• 2 cm 3LCD

Color Processing:

• 10-bit

Video Modes Supported:

• 720p
• 1080i
• 1080p/60
• 1080p/24
• 1080p/50
• 576i
• 576p
• 480p
• 480i

Light Source:

• Type: Laser Phosphor
• Lamp Life:
  • 20,000 hours (Normal Mode)
  • 30,000 hours (Eco Mode)

Lens:

• Included: 1.6x manual zoom, manual focus
• Optional Lenses: No
• Lens Shift:
  • Horizontal: 20%
  • Vertical: 50%

Throw Distance:

• 2.4 m - 14.5 m

*For a 254 cm diagonal screen, place the projector lens between 2.9 m and 4.7 m from the screen.

Image Size:

• 127 cm - 1270 cm

Throw Ratio:

• 1.35:1 - 2.20:1 (D


  )

Zoom:

• Digital Zoom: Yes

Keystone Correction:

• Digital Keystone: Horizontal & Vertical

Projector Size:

• 14 cm x 44 cm x 32 cm (HxWxD)

Weight:

• 8.7 kg

Audible Noise:

• 31 dB (Normal)
• 23 dB (Eco)

Internal Speakers:

• 10.0 Watts Mono

Power:

• 382 Watts, 100V - 240V

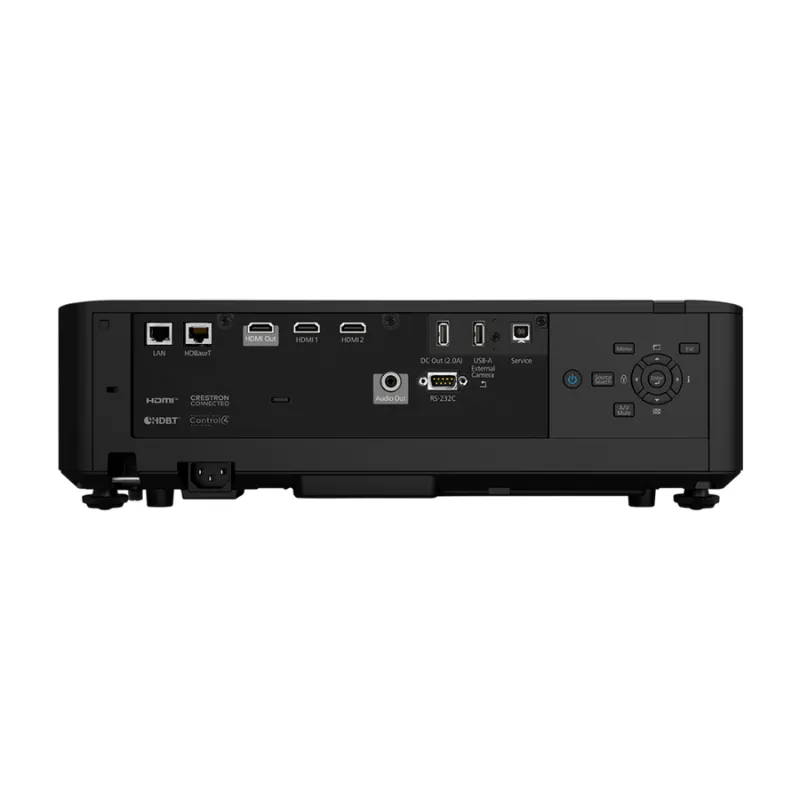

Connection Panel:

• Audio Out: Mini Jack
• HDBaseT: RJ-45
• HDMI 2.3 (HDCP) x 2
• Network: RJ-45
• RS232: DB-9pin
• USB x 2

Features:

• Edge Blending
• Geometric Correction
• Crestron RoomView
