OVERVIEW

The prowess of Dual-Mono amplification finally accessible.

2x210 Watts Under 6

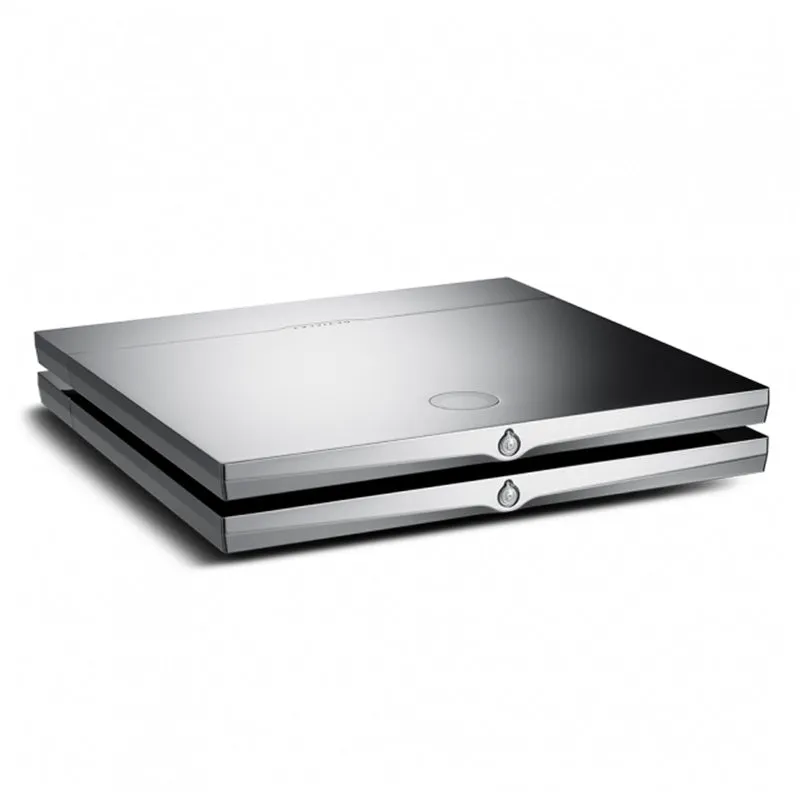

The Expert 210 Pro combines two Expert 140 Pro units and lets you soar to whole new levels of performance, with a distorsion rate divided by 2 and an increased power reserve for each channel.

Expert Pro is the worlds most advanced audiophile system, meant for music lovers in search of a refined and emotional listening experience. Designed to replace traditional Hi-Fi systems, Expert Pro delivers all the core elements of playback preamp, amp, DAC, streamer, phono stage in a single and ultra-compact unit. By rethinking sound reproduction at every turn, Devialet engineers have been able to achieve the best performance ever measured, at all power levels. With a precise and natural attack, explosive dynamics, naked silence and beautifully true timbre, the experience is breathtaking.

Entirely configurable and upgradable, Expert Pro reveals your musics full potential, whatever the source or speakers.

GENERAL SPECIFICATIONS

Range Dual-mono

Exclusive Technologies ADH, SAM, RAM, AIR, EVO, DAC Magic Wire

Streaming Services

• UPnP
• Airplay
• Spotify Connect

Daisy Chaining Up to 8 units

Phono Stage Standard MM / MC

Pre-Amplified Output Yes mono / stereo

Casing Carved out from a single aluminium block

Side plating Dark chrome

Dimension Width: 383mm | Depth: 383mm | Height: 40mm

Weight 5.65Kg

PERFORMANCE

Power 2x140 Watts RMS under 6

Distortion at Full Power 0.00025% THD N

Distortion at 10W 0.0001% THD N

Signal-to-Noise ratio 133dB

Output impedance 0.001

Damping factor 8000

Bandwidth

• DC-30kHz @ -0.1dB
• DC-95kHz @ -3dB

Phase Rotation

• 2 at 20kHz
• 9 at 40kHz

Thermal Distortion Below measurement threshold

Intelligence

• 1x QUAD-CORE 1GHz CPU
• 2x SHARC 400MHz DSP
• 1x 16MHz RISC processor
• 4x 40MHz RISC processor
• 1x 64MHz RISC processor

CONNECTIVITY

Wi-Fi 2.4GHz / 5GHz 802.11ac, compatible with 802.11a/b/g/n

Ethernet RJ45 100/1000 Mbps

USB

• USB Audio 2.0 Asynchronous
• Very low latency
• Bi-directionality for digitisation of the analog sources

Digital Coaxial Inputs Up to 4x RCA 75

Digital Optical Inputs

• 1x TOSLINK
• Up to 1x miniTOSLINK 3.5mm

Supported Formats

• Up to 32bits / 192kHz PCM USB
• Up to 24bits / 192kHz PCM AIR, UPnP, Coaxial
• Up to 24bits / 96kHz PCM Optical
• Up to 1bit / 3.072000MHz DSD64 USB, Coaxial

Analog Inputs

• Up to 2x RCA stereo
• Sensitivity adjustable via the Configurator
• Standard phono stage MM / MC

Speaker Output

• 4mm banana plugs, fork connectors or stripped cables
• Compatible with all speakers from 8 to 2
• Short-circuit protection
• Active filtering available

Home Automation Up to 1x RS232 3.5mm 115200 bauds documentation available via the Configurator

Trigger

• 5mm trigger connector
• Trig in and Trig Out
