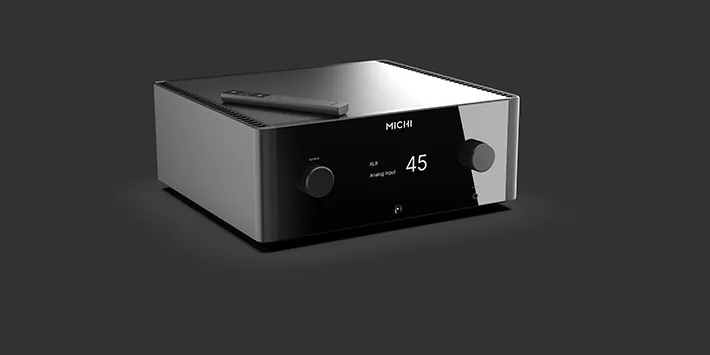

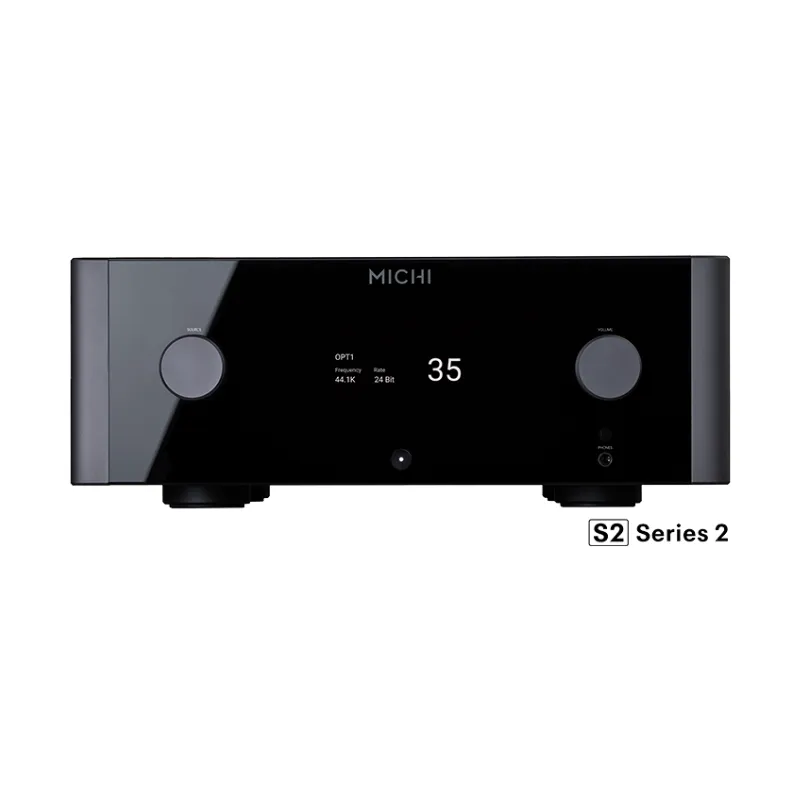

The Michi X5 Series 2 Integrated Amplifier is authoritative and precise, capable of delivering a speaker-taming 600 watts of Class AB output power. The X5s linear power supply is built around two massive in-house manufactured, shielded, low-noise toroidal transformers. Equipped with an ESS SABRE 8-Channel Digital to Analog converter, this amplifier renders ultra-revealing music with breath taking accuracy.

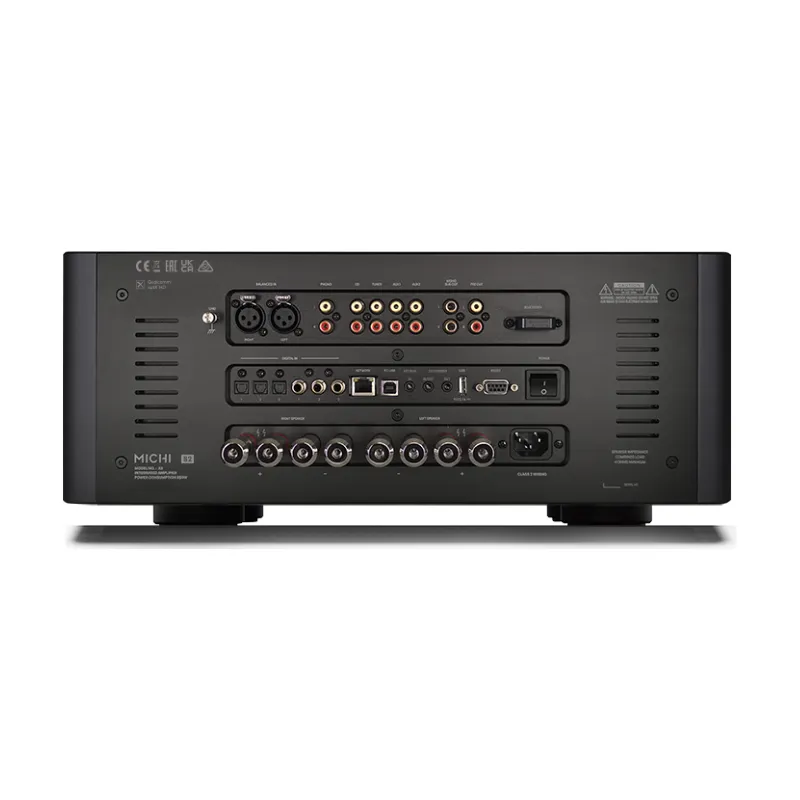

A wide array of inputs ensures support of your favourite music sources including Analog RCA and XLR Balanced, Moving Magnet or Moving Coil Phono, aptX HD Wireless Bluetooth, Coaxial and Optical. The PC-input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) with full MQA hardware decoding up to 24-bit 384kHz.
Whether you're a music lover, audiophile, professional sound engineer or all of the above, the Michi X5 Series 2 Integrated Amplifier has been passionately engineered for you. Meticulously manufactured to the highest standards of build quality, and featuring an understated, graceful industrial design, the Michi X5 Series 2 is sure to quickly become the centrepiece of your audio system.
Michi, expectations amplified.
Specifications:
Dimensions (W H D)
485 x 195 x 452mm
19" 7 5/8" 17 3/4"
Front Panel Height
177 mm (7")
Power Requirements
230V, 50Hz
Power Consumption
850W
Standby Power Consumption
<0.5W
Net Weight
43.8kg (96.56 lbs.)
BTU Rating
2194 BTU/h
Continuous Power Output
600W/Ch (4)
350W/Ch (8)
Total Harmonic Distortion (THD)
<0.009%
Frequency Response
Line Level Inputs: 10Hz - 100kHz( 0 dB, -0.6 dB)
Digital Inputs: 20Hz - 20kHz(0 0.4 dB)
Phono Input: 20Hz - 20kHz( 0 dB, -0.2 dB)
S/N Ratio(IHF "A" Weighted)
Line Level Inputs: 102dB
Digital Inputs: 102dB
Phono Input: 80dB
More Specifications
Intermodulation Distortion(60Hz:7kHz, 4:1)
<0.03%
Damping Factor(20 Hz - 20kHz, 8 ohms)
350
Input Sensitivity
Line Level Inputs (RCA): 380mV
Line Level Inputs (XLR):580mV
Phono Input (MM): 5.7mV
Phono Input (MC):570 uV
Input Impedance
Line Level Inputs (RCA): 100k
Line Level Inputs (XLR): 100k
Digital Inputs: 75
Phono Input (MM): 47k
Phono Input (MC): 100
Input Overload
Line Level Inputs (RCA): 12.5V
Line Level Inputs (XLR): 12.5V
Phono Input (MM): 197mV
Phono Input (MC): 19mV
Preout Level
1V
Tone Controls
10dB at 100Hz / 10kHz
Coax/OpticalDigital Input Signals
SPDIF LPCM (Up to24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
DSD and DoP support
MQA and MQA Studio support
Roon Tested
