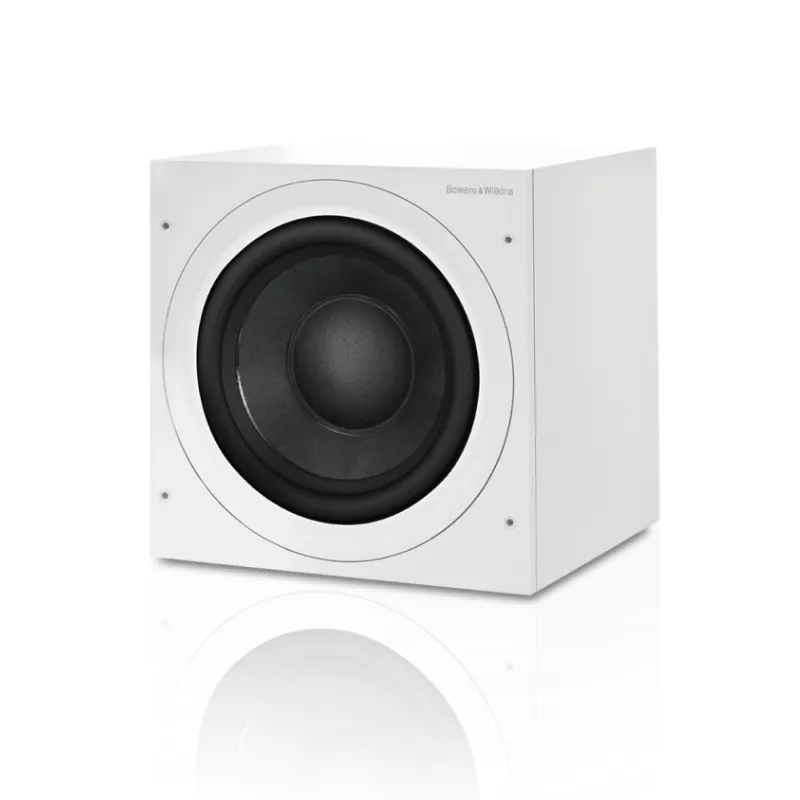

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet. Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
TECHNICAL SPECIFICATIONS
Features
- Input level line in
- Input level speaker in
- Low-pass filter bypass
- Bass extension
- Bass roll-off alignment
- Auto sense on / standby
- Phase switch
Description Active closed-box subwoofer system
Drive unit 250mm 10 in paper / Aramid fiber cone long-throw
Frequency range -6dB at 20Hz and 25 / 140Hz adjustable EQ at A
Frequency response 3dB 27Hz 40 / 140Hz adjustable EQ at A
Bass extension
- -6dB at 20Hz position A
- -6dB at 25Hz position B
- -6dB at 30Hz position C
Power output 200W
Rated power consumption 40W / 0.5W standby
Input impedance 33k
Signal / noise >90dB
Inputs
- Line in RCA Phono
- Speaker in Binding post
- 12v trigger 3.5mm jack
- Low-pass filter
- Active 4th-order, variable cut-off frequency
Dimensions
- Height: 310mm 12.2 in not including feet or spikes
- 322mm 12.7in including feet
- 338mm 13.3in including spikes
- Width: 310mm 12.2 in
- Depth: 347mm 13.66in not including grilles
- 375mm 14.8 in including grilles and controls
Net weight 12.5kg 27.6 lb
